COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11273		Well Classification: GW Status: PR - 3/1/2006
Well Name/No:PUCKETT #GM 422-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2006
FacilityID:280520LocationID:335087
County:GARFIELD #045Location:NESW 32 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5738 ft.
Basin:PICEANCE BASIN
Planned Location:2625FSL  2279 FWLLat/Long: 39.480308 / -108.133657Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.480404 / -108.133630Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2006             Measured TD: 6614 ft.    Vertical TD: 6605 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2006
Wellbore PermitDIRECTIONAL
Permit #:20053181 Expiration Date:10/5/2006
Proposed Top PZ Location:Sec: Twp: Footage: 2408 FNL  2210 FWL
Bottom Hole Location:Sec: Twp: Footage: 2408 FNL  2210 FWL
Proposed Depth/Form:6684 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:1/2/2006
Spud Date:12/26/2005Spud Date Is:ACTUAL
Measured TD:6614 ft.Measured PB depth:6536 ft.
True Vertical TD:6605 ft.True Vertical PB depth:
Top PZ Location:Sec:32 Twp: 6S 96WFootage: 2428 FNL  2209 FWL
Bottom Hole Location:Sec:32 Twp: 6S 96WFootage: 2428 FNL  2209 FWL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE

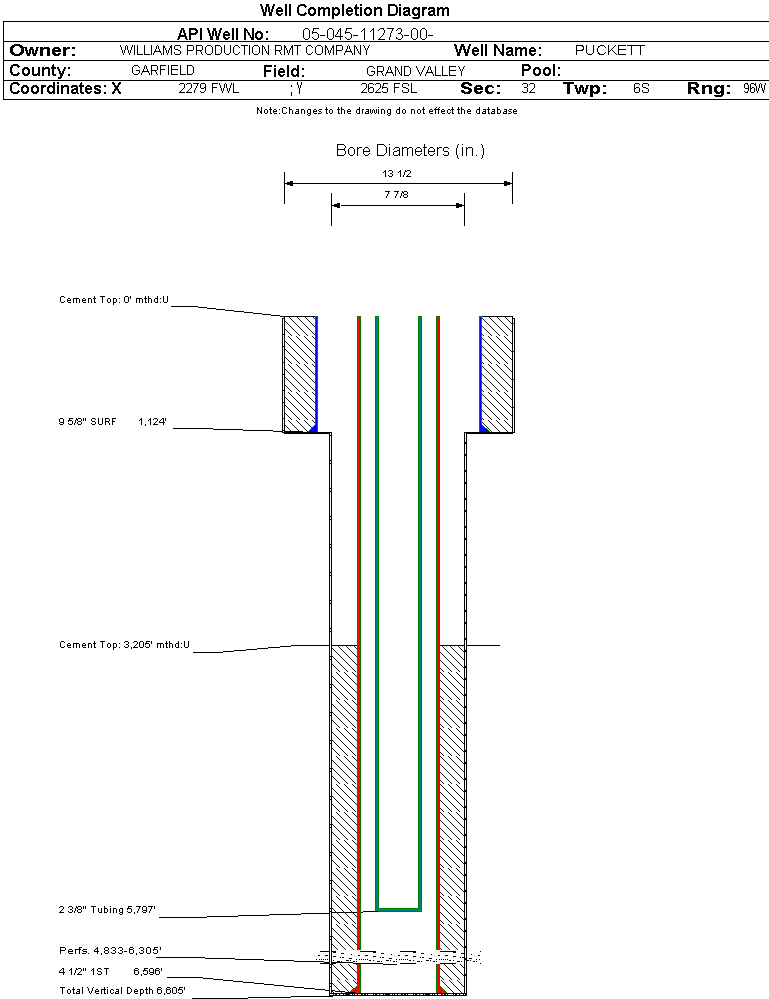

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 0 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1124 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6596 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 818, Top: 3205 ft., Bottom: 6595 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1964 ft.NN
FORT UNION2259 ft.NN
MESAVERDE3516 ft.NN
CAMEO6020 ft.NN
ROLLINS6534 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/1/2006                  Interval Top: 4833 ft.    Interval Bottom: 6305 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/21/2006Choke Size:0.281 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/19/2006
Treatment Summary:2500 GALS 10% ACETIC ACID; 1001 GALS 7 1/2% HCL; 630400# 30/50 SAND; 14943 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:5797 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/1/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1373
CASING_PRESS 1042
TUBING_PRESS 894
Perforation Data:
Interval Top:4833 ft.# Of Holes:91
Interval Bottom:6305 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)10
Total Gas Produced (MCF)6294
GOR629400
GOR DeterminationMCFE
Average BOE per Day3.000
Average MCFE per Day17.409

 Federal Financial Assurance  i

 Tribal Well  i No
