COGIS - WELL SCOUT CARD

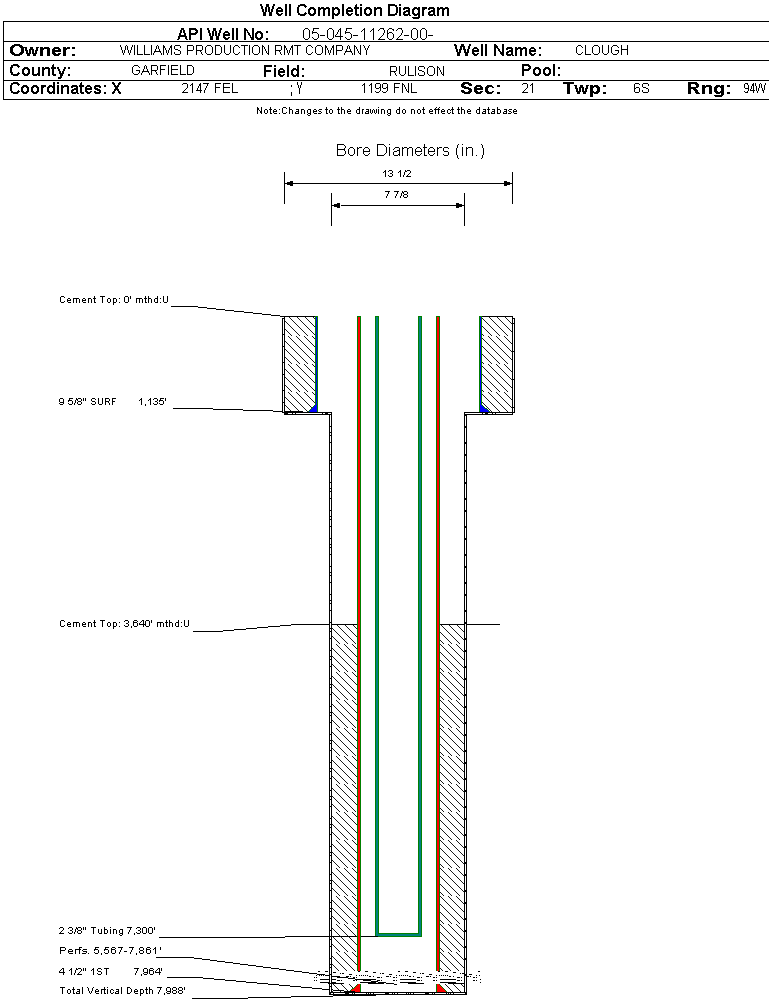

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11262		Well Classification: GW Status: PR - 1/1/2023
Well Name/No:CLOUGH #RWF 531-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2023
FacilityID:280509LocationID:335179
County:GARFIELD #045Location:NWNE 21 6S94W 6
Field:RULISON - #75400Elevation:5408 ft.
Basin:PICEANCE BASIN
Planned Location:1199FNL  2147 FELLat/Long: 39.514789 / -107.891570Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.514874 / -107.891651Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2023             Measured TD: 8006 ft.    Vertical TD: 7988 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2023
Wellbore PermitDIRECTIONAL
Permit #:20064814 Expiration Date:10/29/2007
Proposed Top PZ Location:Sec: Twp: Footage: 839 FNL  2020 FEL
Bottom Hole Location:Sec: Twp: Footage: 839 FNL  2020 FEL
Proposed Depth/Form:7930 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:4/12/2007
Spud Date:3/27/2007Spud Date Is:ACTUAL
Measured TD:8006 ft.Measured PB depth:7949 ft.
True Vertical TD:7988 ft.True Vertical PB depth:
Top PZ Location:Sec:21 Twp: 6S 94WFootage: 849 FNL  2017 FEL
Bottom Hole Location:Sec:21 Twp: 6S 94WFootage: 849 FNL  2017 FEL
Log Types:CBL; HIGH RESOLUTION IND/SPECTRAL DEN/DUAL SPACED NEUT; MUDLOG
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1135 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1135 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7964 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1149, Top: 3640 ft., Bottom: 7964 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1741 ft.NN
MESAVERDE4203 ft.NN
CAMEO7051 ft.NN
ROLLINS7940 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/1/2023                  Interval Top: 5567 ft.    Interval Bottom: 7861 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/27/2007Choke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/26/2007
Treatment Summary:3750 GALS 7 1/2% HCL; 829,800# 20/40 SAND; 22,082 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:7300 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/28/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 2322
MCF_GAS 1710
TUBING_PRESS 2265
Perforation Data:
Interval Top:5567 ft.# Of Holes:142
Interval Bottom:7861 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)28
Total Gas Produced (MCF)23358
GOR834214
GOR DeterminationMCFE
Average BOE per Day11.079
Average MCFE per Day64.264

 Federal Financial Assurance  i

 Tribal Well  i No
