Wellbore #00 Wellbore Classification: GW Status: PR - 9/17/2008 Measured TD: 9550 ft. Vertical TD: 9388 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/17/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20052527 | Expiration Date: | 9/29/2006 | | Proposed Top PZ Location: | Sec:30 Twp: 5S 95W | Footage: 2332 FNL 333 FEL | | Bottom Hole Location: | Sec:30 Twp: 5S 95W | Footage: 2332 FNL 333 FEL | | Proposed Depth/Form: | 10206 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: |
| | |

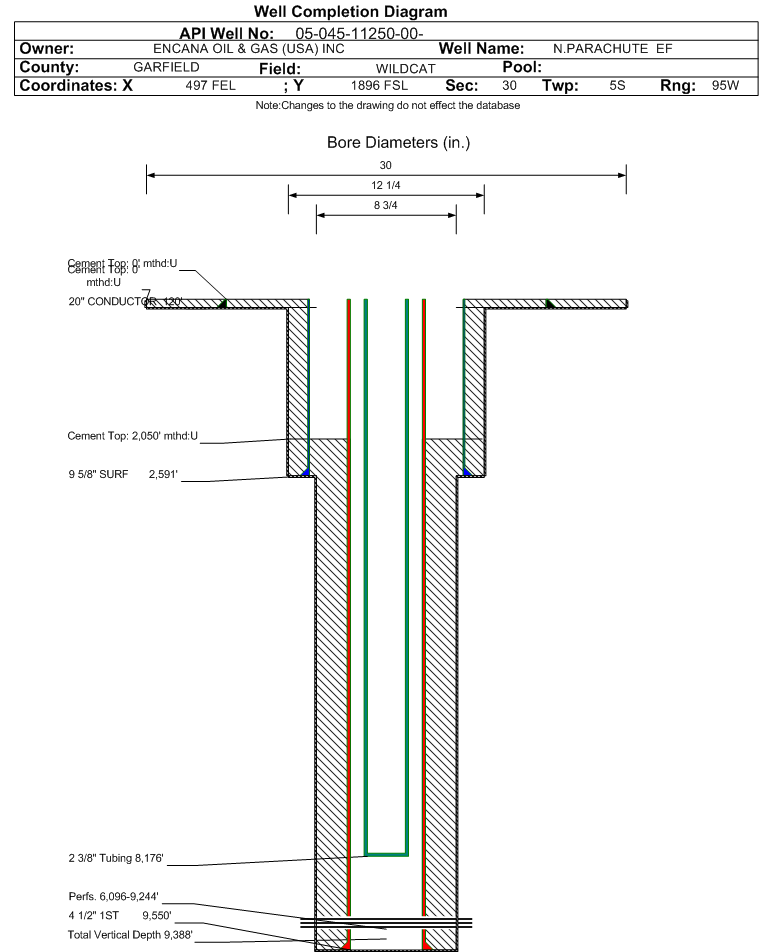

| Wellbore Completed | | Completion Date: | 1/2/2006 | | Spud Date: | 12/12/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 9550 ft. | Measured PB depth: | 9503 ft. | | True Vertical TD: | 9388 ft. | True Vertical PB depth: | 9341 ft. | | Top PZ Location: | Sec:30 Twp: 5S 95W | Footage: 2282 FNL 242 FEL | | Bottom Hole Location: | Sec:30 Twp: 5S 95W | Footage: 2282 FNL 242 FEL | | Log Types: | CBL, MUD AND ARRAY INDUCTION | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 390, Top: 0 ft., Bottom: 120 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2591 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 810, Top: 0 ft., Bottom: 2591 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9550 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1510, Top: 2050 ft., Bottom: 9550 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 3659 ft. | 5822 ft. | N | N | | WILLIAMS FORK | 5822 ft. | 9372 ft. | N | N | | ROLLINS | 9372 ft. | 9550 ft. | N | N |
Formation WFCM Formation Classification: GW Status: PR - 9/17/2008 Interval Top: 6096 ft. Interval Bottom: 9244 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/22/2006 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/11/2006 | | Treatment Summary: | SEE SCANNED DOCUMENT |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8176 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/17/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 1272 | | CASING_PRESS | 963 | | MCF_GAS | 1272 | | TUBING_PRESS | 234 |
| | Perforation Data: | | Interval Top: | 6096 ft. | # Of Holes: | 162 | | Interval Bottom: | 9244 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 59 |
| Total Gas Produced (MCF) | 11871 |
| GOR | 201203 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.773 |
| Average MCFE per Day | 33.462 |
| Federal Financial Assurance | i | |
|
|
