Wellbore #00 Wellbore Classification: GW Status: PR - 8/18/2005 Measured TD: 6971 ft. Vertical TD: 6740 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/18/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20053024 | Expiration Date: | 9/27/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 461 FSL 1743 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 461 FSL 1743 FEL | | Proposed Depth/Form: | 7006 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: SE4 |
| | |

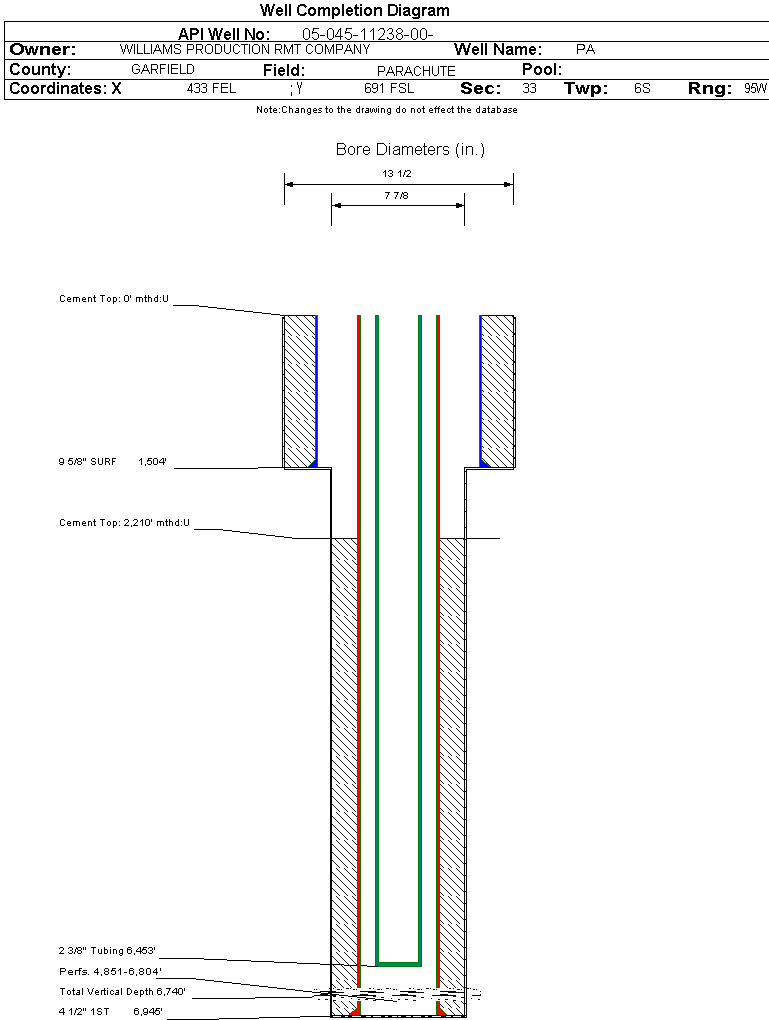

| Wellbore Completed | | Completion Date: | 12/25/2005 | | Spud Date: | 12/16/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6971 ft. | Measured PB depth: | 6914 ft. | | True Vertical TD: | 6740 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:33 Twp: 6S 95W | Footage: 508 FSL 1729 FEL | | Bottom Hole Location: | Sec:33 Twp: 6S 95W | Footage: 508 FSL 1729 FEL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1504 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 425, Top: 0 ft., Bottom: 1504 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6945 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 875, Top: 2210 ft., Bottom: 6944 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1275 ft. | | N | N | | FORT UNION | 1622 ft. | | N | N | | MESAVERDE | 3531 ft. | | N | N | | CAMEO | 6181 ft. | | N | N | | ROLLINS | 6889 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/21/2006 Interval Top: 4851 ft. Interval Bottom: 6804 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/21/2006 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/19/2006 | | Treatment Summary: | 2477 GALS 7 1/2% JC;' 2750 GALS 10% ACETIC ACID; 816,000#30/50 SAND: 19,355 BBLS SLICKWATER.(SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6453 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/21/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CASING_PRESS | 937 | | MCF_GAS | 977 | | TUBING_PRESS | 797 |
| | Perforation Data: | | Interval Top: | 4851 ft. | # Of Holes: | 146 | | Interval Bottom: | 6804 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 18 |
| Total Gas Produced (MCF) | 14663 |
| GOR | 814611 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.977 |
| Average MCFE per Day | 40.479 |
| Federal Financial Assurance | i | |
|
|
