COGIS - WELL SCOUT CARD

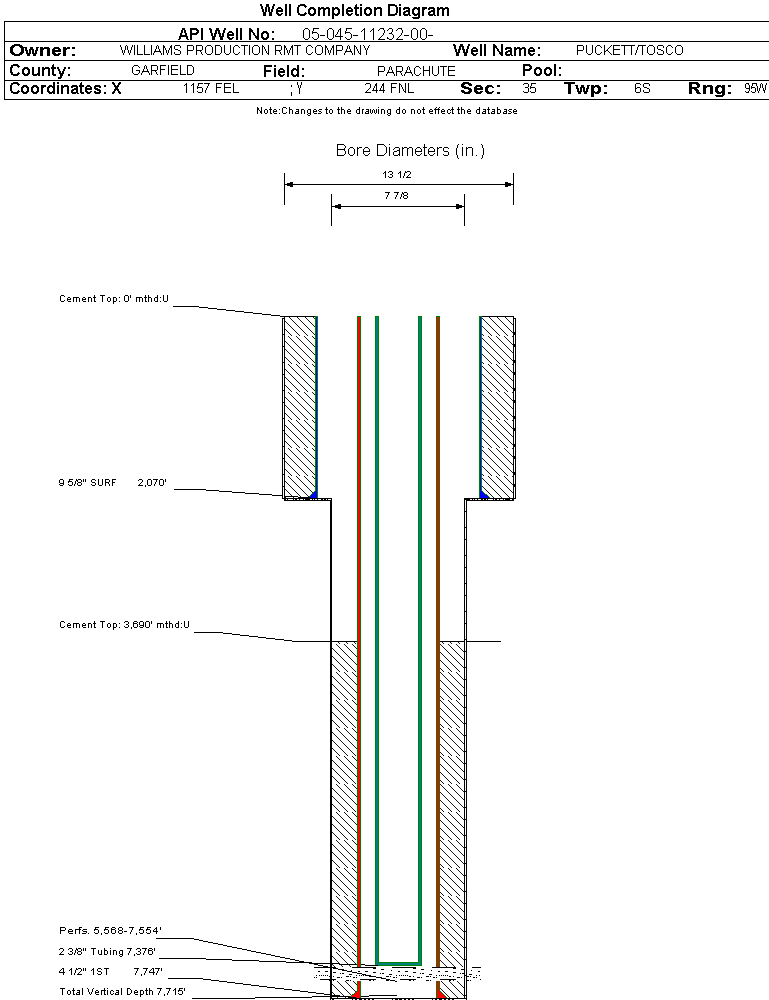

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11232		Well Classification: GW Status: PR - 2/9/2006
Well Name/No:PUCKETT/TOSCO #PA 341-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/9/2006
FacilityID:280287LocationID:335061
County:GARFIELD #045Location:NENE 35 6S95W 6
Field:PARACHUTE - #67350Elevation:5162 ft.
Basin:PICEANCE BASIN
Planned Location:244FNL  1157 FELLat/Long: 39.487889 / -107.960362Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.487875 / -107.960361Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/9/2006             Measured TD: 7760 ft.    Vertical TD: 7715 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/9/2006
Wellbore PermitDIRECTIONAL
Permit #:20053007 Expiration Date:9/27/2006
Proposed Top PZ Location:Sec: Twp: Footage: 616 FNL  610 FEL
Bottom Hole Location:Sec: Twp: Footage: 616 FNL  610 FEL
Proposed Depth/Form:7829 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-28 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:12/15/2005
Spud Date:12/1/2005Spud Date Is:ACTUAL
Measured TD:7760 ft.Measured PB depth:7685 ft.
True Vertical TD:7715 ft.True Vertical PB depth:
Top PZ Location:Sec:35 Twp: 6S 95WFootage: 595 FNL  607 FEL
Bottom Hole Location:Sec:35 Twp: 6S 95WFootage: 595 FNL  607 FEL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE, MUD LOG
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2070 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 553, Top: 0 ft., Bottom: 2070 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7747 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 885, Top: 3690 ft., Bottom: 7747 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1833 ft.NN
FORT UNION2140 ft.NN
MESAVERDE4140 ft.NN
CAMEO6943 ft.NN
ROLLINS7612 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/9/2006                  Interval Top: 5568 ft.    Interval Bottom: 7554 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/15/2006Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/10/2006
Treatment Summary:1/10/06 4000 GALS 10% ACETIC ACID; 743 GALS 7.5% HCL; 603300# 30/50 SAND; 15211 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:7376 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/9/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 922
CASING_PRESS 1285
TUBING_PRESS 1107
Perforation Data:
Interval Top:5568 ft.# Of Holes:107
Interval Bottom:7554 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)7853
GOR713909
GOR DeterminationMCFE
Average BOE per Day3.743
Average MCFE per Day21.718

 Federal Financial Assurance  i

 Tribal Well  i No
