COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11197		Well Classification: GW Status: PR - 6/8/2006
Well Name/No:CLOUGH #RWF 444-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/8/2006
FacilityID:280113LocationID:335065
County:GARFIELD #045Location:SESE 14 6S94W 6
Field:RULISON - #75400Elevation:5296 ft.
Basin:PICEANCE BASIN
Planned Location:1270FSL  1249 FELLat/Long: 39.521409 / -107.850849Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.521476 / -107.850777Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/8/2006             Measured TD: 8125 ft.    Vertical TD: 8056 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/8/2006
Wellbore PermitDIRECTIONAL
Permit #:20062875 Expiration Date:8/10/2007
Proposed Top PZ Location:Sec: Twp: Footage: 626 FSL  731 FEL
Bottom Hole Location:Sec: Twp: Footage: 626 FSL  731 FEL
Proposed Depth/Form:8116 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:11/18/2006
Spud Date:11/8/2006Spud Date Is:ACTUAL
Measured TD:8125 ft.Measured PB depth:7956 ft.
True Vertical TD:8056 ft.True Vertical PB depth:
Top PZ Location:Sec:14 Twp: 6S 94WFootage: 625 FSL  714 FEL
Bottom Hole Location:Sec:14 Twp: 6S 94WFootage: 625 FSL  714 FEL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG

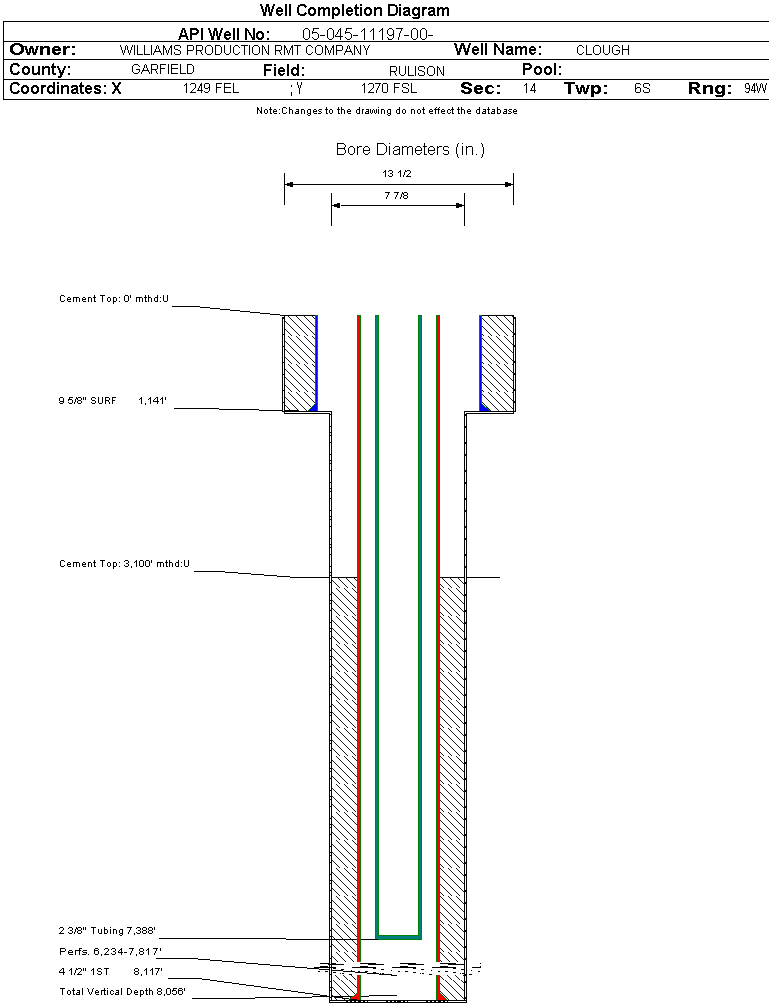

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1141 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 1141 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8117 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1102, Top: 3100 ft., Bottom: 8117 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1693 ft.NN
MESAVERDE4306 ft.NN
CAMEO7173 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/9/2007                  Interval Top: 6234 ft.    Interval Bottom: 7817 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/16/2006Choke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/15/2006
Treatment Summary:3290 GALS 7 1/2% HCL; 685,100# 20/40 SAND; 17605 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:7388 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/9/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1571
MCF_GAS 1078
TUBING_PRESS 1404
Perforation Data:
Interval Top:6234 ft.# Of Holes:108
Interval Bottom:7817 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)21
Total Gas Produced (MCF)9391
GOR447190
GOR DeterminationMCFE
Average BOE per Day4.494
Average MCFE per Day26.078

 Federal Financial Assurance  i

 Tribal Well  i No
