Wellbore #00 Wellbore Classification: GW Status: PR - 8/10/2005 Measured TD: 7482 ft. Vertical TD: 7184 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/10/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20052944 | Expiration Date: | 9/18/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2610 FNL 2198 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 2610 FNL 2198 FEL | | Proposed Depth/Form: | 7551 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. |
| | |

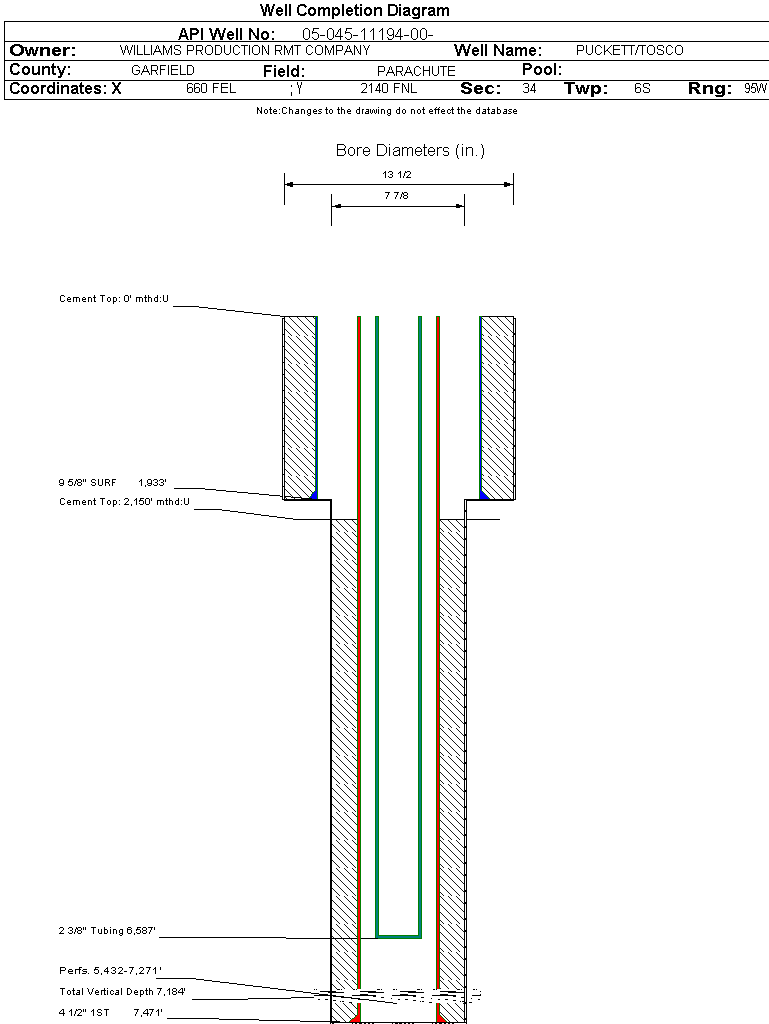

| Wellbore Completed | | Completion Date: | 6/20/2006 | | Spud Date: | 6/6/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7482 ft. | Measured PB depth: | 7350 ft. | | True Vertical TD: | 7184 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:34 Twp: 6S 95W | Footage: 2622 FNL 2193 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 95W | Footage: 2622 FNL 2193 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1933 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 374, Top: 0 ft., Bottom: 1933 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7471 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 895, Top: 2150 ft., Bottom: 7471 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1661 ft. | | N | N | | FORT UNION | 1955 ft. | | N | N | | MESAVERDE | 3981 ft. | | N | N | | CAMEO | 6661 ft. | | N | N | | ROLLINS | 7356 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 9/18/2006 Interval Top: 5432 ft. Interval Bottom: 7271 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/11/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/10/2006 | | Treatment Summary: | 3001 GALS 7 1/2% HCL; 777,500# 30/50 SAND; 18,741 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6587 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/18/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CASING_PRESS | 1300 | | MCF_GAS | 1000 | | TUBING_PRESS | 1300 |
| | Perforation Data: | | Interval Top: | 5432 ft. | # Of Holes: | 123 | | Interval Bottom: | 7271 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 20 |
| Total Gas Produced (MCF) | 16230 |
| GOR | 811500 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.722 |
| Average MCFE per Day | 44.802 |
| Federal Financial Assurance | i | |
|
|
