COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11189		Well Classification: GW Status: PR - 6/8/2006
Well Name/No:CLOUGH #RWF 433-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/8/2006
FacilityID:280104LocationID:335064
County:GARFIELD #045Location:SWSE 15 6S94W 6
Field:RULISON - #75400Elevation:5566 ft.
Basin:PICEANCE BASIN
Planned Location:1091FSL  1519 FELLat/Long: 39.520929 / -107.870490Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.520960 / -107.870419Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/8/2006             Measured TD: 8584 ft.    Vertical TD: 8502 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/8/2006
Wellbore PermitDIRECTIONAL
Permit #:20062892 Expiration Date:8/16/2007
Proposed Top PZ Location:Sec: Twp: Footage: 2023 FSL  2031 FEL
Bottom Hole Location:Sec: Twp: Footage: 2023 FSL  2031 FEL
Proposed Depth/Form:8360 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-41 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:1/27/2007
Spud Date:1/13/2007Spud Date Is:ACTUAL
Measured TD:8584 ft.Measured PB depth:8281 ft.
True Vertical TD:8502 ft.True Vertical PB depth:
Top PZ Location:Sec:15 Twp: 6S 94WFootage: 2053 FSL  2024 FEL
Bottom Hole Location:Sec:15 Twp: 6S 94WFootage: 2053 FSL  2024 FEL
Log Types:CBL/ RESERVOIR MONITOR TOOL ELITE

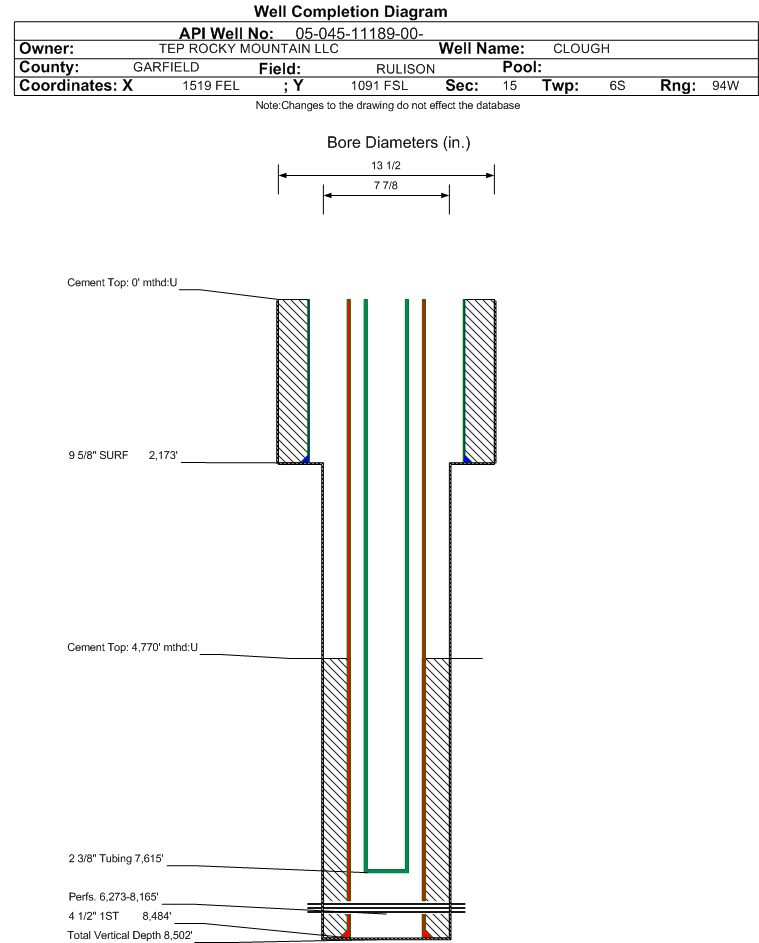

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2173 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 484, Top: 0 ft., Bottom: 2173 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8484 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1155, Top: 4770 ft., Bottom: 8484 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1919 ft.NN
MESAVERDE4578 ft.NN
CAMEO7422 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/11/2007                 Interval Top: 6273 ft.    Interval Bottom: 8165 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:3/21/2007Choke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/20/2007
Treatment Summary:3000 GALS 7 1/2% HCL, 441600# 20/40 SAND, 15863 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7615 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/11/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1658
MCF_GAS 1106
TUBING_PRESS 1503
Perforation Data:
Interval Top:6273 ft.# Of Holes:99
Interval Bottom:8165 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)38
Total Gas Produced (MCF)14529
GOR382342
GOR DeterminationMCFE
Average BOE per Day6.969
Average MCFE per Day40.418

 Federal Financial Assurance  i

 Tribal Well  i No
