Wellbore #00 Wellbore Classification: GW Status: PR - 8/31/2007 Measured TD: 8505 ft. Vertical TD: 8410 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/31/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062894 | Expiration Date: | 8/16/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1571 FSL 676 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1571 FSL 676 FEL | | Proposed Depth/Form: | 8334 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-41 , Unit Acreage: 320, Drill Unit: S2 |
| | |

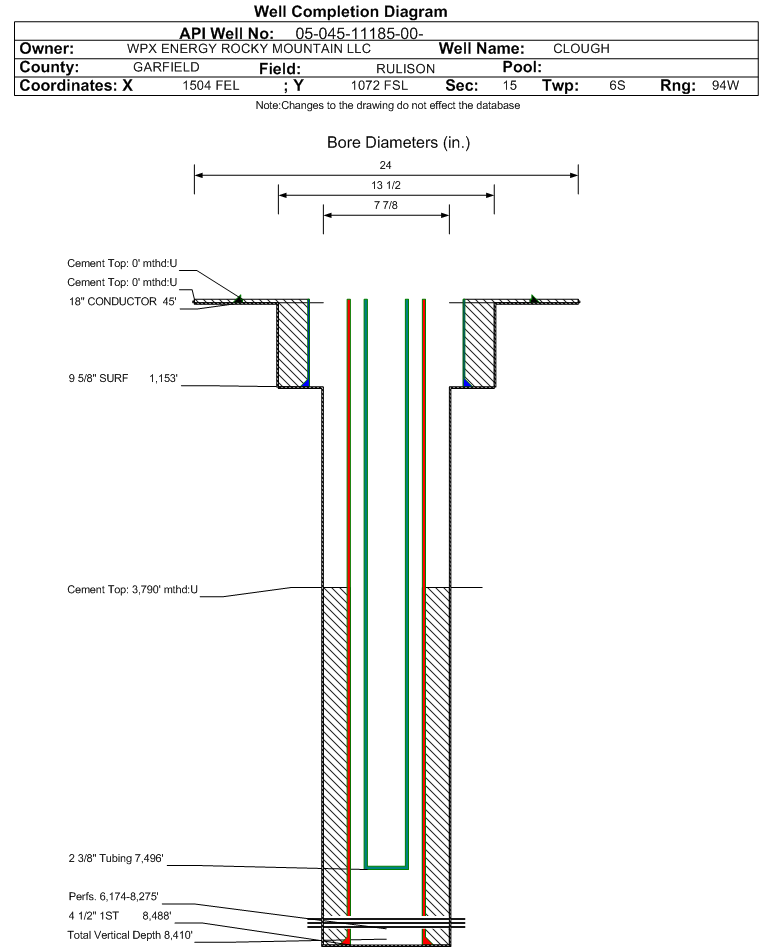

| Wellbore Completed | | Completion Date: | 3/17/2007 | | Spud Date: | 2/28/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8505 ft. | Measured PB depth: | 8400 ft. | | True Vertical TD: | 8410 ft. | True Vertical PB depth: | 8305 ft. | | Top PZ Location: | Sec:15 Twp: 6S 94W | Footage: 1570 FSL 661 FEL | | Bottom Hole Location: | Sec:15 Twp: 6S 94W | Footage: 1570 FSL 661 FEL | | Log Types: | CBL, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1153 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1153 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8488 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1146, Top: 3790 ft., Bottom: 8488 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1952 ft. | | N | N | | MESAVERDE | 4547 ft. | | N | N | | CAMEO | 7430 ft. | | N | N | | ROLLINS | 8326 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 8/31/2007 Interval Top: 6174 ft. Interval Bottom: 8275 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/22/2007 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/13/2007 | | Treatment Summary: | 3500 GALS 7 1/2% HCL; 570104# 20/40 SAND; 14999 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7496 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/31/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1087 | | CALC_GOR | 0 | | CASING_PRESS | 1051 | | MCF_GAS | 957 | | TUBING_PRESS | 829 |
| | Perforation Data: | | Interval Top: | 6174 ft. | # Of Holes: | 193 | | Interval Bottom: | 8275 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 20 |
| Total Gas Produced (MCF) | 9273 |
| GOR | 463650 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.435 |
| Average MCFE per Day | 25.734 |
| Federal Financial Assurance | i | |
|
|
