Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-11152		Well Classification: GW	Status: SI - 7/1/2025
Well Name/No:	CLOUGH #RWF 441-16 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	CR 62
Facility Status:	SI	Status Date	7/1/2025
FacilityID:	280017	LocationID:	311629
County:	GARFIELD #045	Location:	SWNE 16 6S94W 6
Field:	RULISON - #75400	Elevation:	5966 ft.
Basin:	PICEANCE BASIN
Planned Location:	1578FNL 1907 FEL	Lat/Long: 39.528019 / -107.890690	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.528112 / -107.890604	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: SI - 7/1/2025 Measured TD: 8950 ft. Vertical TD: 8783 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW SI - 7/1/2025
Wellbore Permit			DIRECTIONAL
Permit #:	20052826	Expiration Date:	9/12/2006
Proposed Top PZ Location:	Sec:16 Twp: 6S 94W	Footage: 921 FNL 693 FEL
Bottom Hole Location:	Sec:16 Twp: 6S 94W	Footage: 921 FNL 693 FEL
Proposed Depth/Form:	8765 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEDERAL	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 440-28 , Unit Acreage: 320, Drill Unit: E2

Wellbore Completed
Completion Date:	6/14/2006
Spud Date:	4/5/2006	Spud Date Is:	ACTUAL
Measured TD:	8950 ft.	Measured PB depth:	8775 ft.
True Vertical TD:	8783 ft.	True Vertical PB depth:
Top PZ Location:	Sec:16 Twp: 6S 94W	Footage: 924 FNL 696 FEL
Bottom Hole Location:	Sec:16 Twp: 6S 94W	Footage: 924 FNL 696 FEL
Log Types:	2-CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG

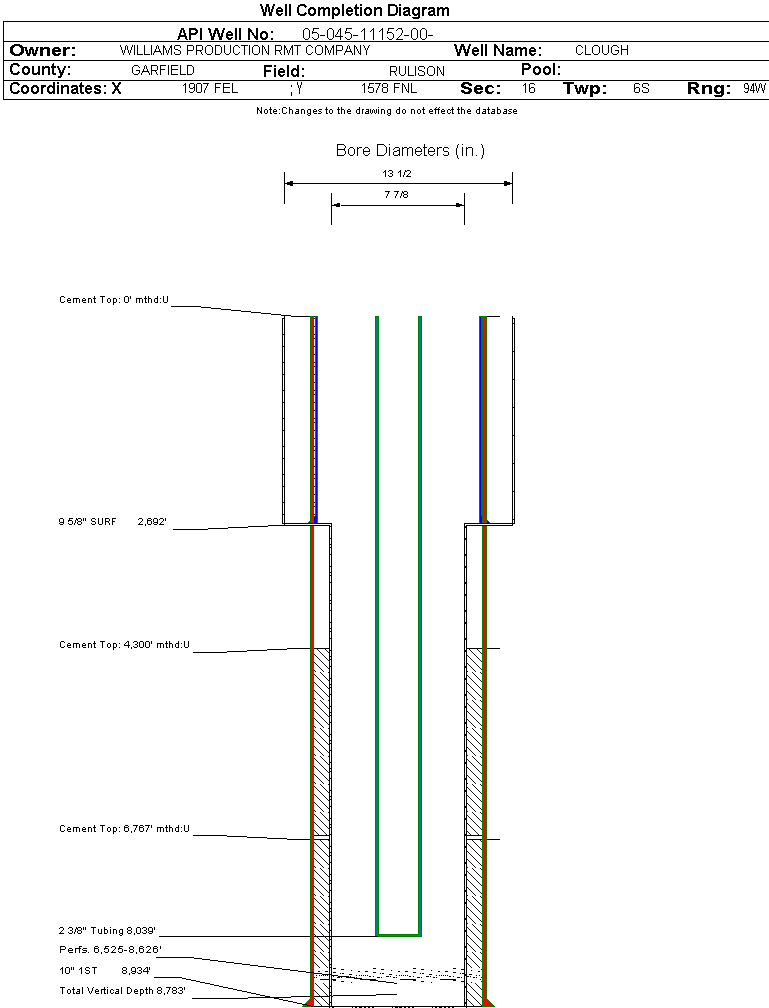

Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2692 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:	Sacks: 540, Top: 0 ft., Bottom: 2691 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8934 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 1200, Top: 6767 ft., Bottom: 8934 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 6722 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 250, Top: 4300 ft., Bottom: 6722 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2416 ft.		N	N
MESAVERDE	5042 ft.		N	N
CAMEO	7830 ft.		N	N
ROLLINS	8852 ft.		N	N

Formation WFCM Formation Classification: GW Status: SI - 7/1/2025 Interval Top: 6525 ft. Interval Bottom: 8626 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	8/17/2006	Choke Size:	0.313 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	8/16/2006
Treatment Summary:	3500 GALS 7 1/2% HCL; 620,400# 20/40 SAND; 16,362 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8039 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	3/26/2007	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
CASING_PRESS	496
MCF_GAS	1024
TUBING_PRESS	141

Perforation Data:
Interval Top:	6525 ft.	# Of Holes:	132
Interval Bottom:	8626 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	44
Total Gas Produced (MCF)	9914
GOR	225318
GOR Determination	MCFE
Average BOE per Day	4.823
Average MCFE per Day	27.984

Federal Financial Assurance

Tribal Well
