COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-11150		Well Classification: GW	Status: PR - 6/8/2006
Well Name/No:	CLOUGH #RWF 541-16 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	CR62
Facility Status:	PR	Status Date	6/8/2006
FacilityID:	280015	LocationID:	311629
County:	GARFIELD #045	Location:	SWNE 16 6S94W 6
Field:	RULISON - #75400	Elevation:	5966 ft.
Basin:	PICEANCE BASIN
Planned Location:	1603FNL 1924 FEL	Lat/Long: 39.527949 / -107.890750	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.528044 / -107.890625	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 6/8/2006 Measured TD: 8750 ft. Vertical TD: 8598 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 6/8/2006
Wellbore Permit			DIRECTIONAL
Permit #:	20062850	Expiration Date:	8/15/2007
Proposed Top PZ Location:	Sec: Twp:	Footage: 1225 FNL 679 FEL
Bottom Hole Location:	Sec:16 Twp: 6S 94W	Footage: 1225 FNL 679 FEL
Proposed Depth/Form:	8769 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEDERAL	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-12 , Unit Acreage: 320, Drill Unit: E2

Wellbore Completed
Completion Date:	9/17/2006
Spud Date:	7/13/2006	Spud Date Is:	ACTUAL
Measured TD:	8750 ft.	Measured PB depth:	8662 ft.
True Vertical TD:	8598 ft.	True Vertical PB depth:
Top PZ Location:	Sec:16 Twp: 6S 94W	Footage: 1224 FNL 691 FEL
Bottom Hole Location:	Sec:16 Twp: 6S 94W	Footage: 1224 FNL 691 FEL
Log Types:	CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG

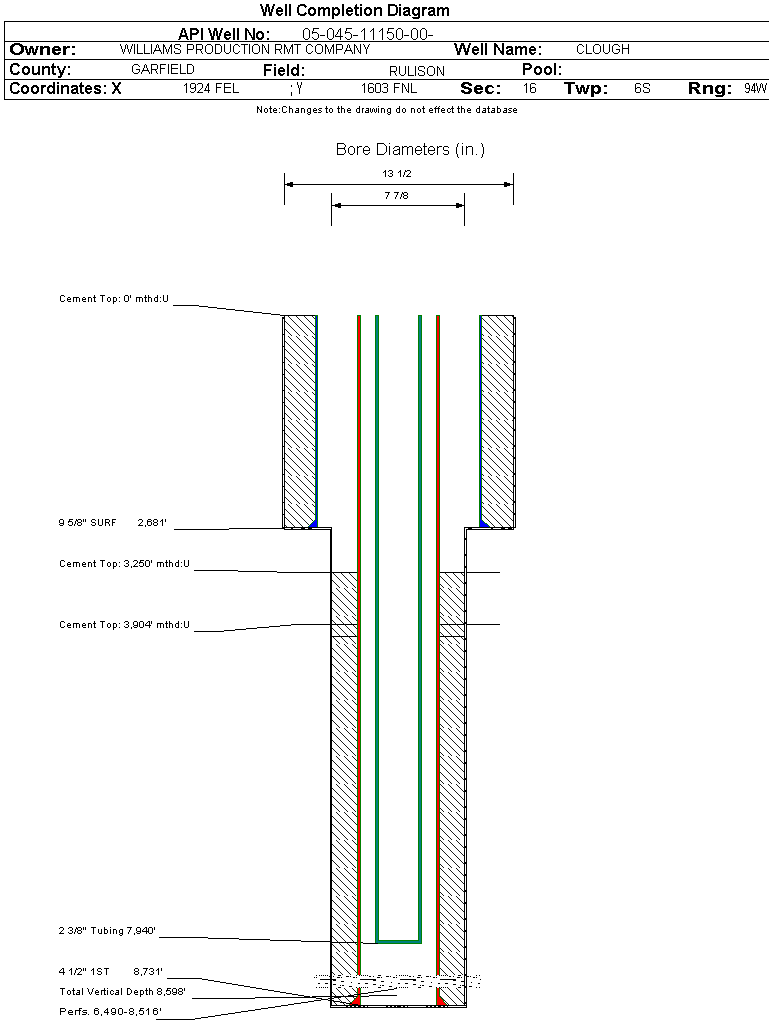

Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2681 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:	Sacks: 593, Top: 0 ft., Bottom: 2681 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8731 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 986, Top: 3250 ft., Bottom: 8731 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4053 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 250, Top: 3904 ft., Bottom: 4053 ft., Determination Method: CALC
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2420 ft.		N	N
MESAVERDE	5002 ft.		N	N
CAMEO	7804 ft.		N	N
ROLLINS	8740 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 3/26/2007 Interval Top: 6490 ft. Interval Bottom: 8516 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	10/25/2006	Choke Size:	0.313 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/17/2006
Treatment Summary:	4,000 GALS 7.5% HCL; 861,000# 20/40 SAND; 19,952 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7940 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	3/26/2007	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	0
CASING_PRESS	743
MCF_GAS	1266
TUBING_PRESS	690

Perforation Data:
Interval Top:	6490 ft.	# Of Holes:	140
Interval Bottom:	8516 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	93
Total Gas Produced (MCF)	21897
GOR	235451
GOR Determination	MCFE
Average BOE per Day	10.599
Average MCFE per Day	61.479
