COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-11149		Well Classification: GW	Status: PR - 8/8/2006
Well Name/No:	CLOUGH #RWF 332-16 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	CR 62
Facility Status:	PR	Status Date	8/8/2006
FacilityID:	280014	LocationID:	335570
County:	GARFIELD #045	Location:	SWNE 16 6S94W 6
Field:	RULISON - #75400	Elevation:	5966 ft.
Basin:	PICEANCE BASIN
Planned Location:	1639FNL 1950 FEL	Lat/Long: 39.527849 / -107.890840	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.527944 / -107.890719	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 8/8/2006 Measured TD: 8505 ft. Vertical TD: 8453 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 8/8/2006
Wellbore Permit			DIRECTIONAL
Permit #:	20064051	Expiration Date:	9/24/2007
Proposed Top PZ Location:	Sec: Twp:	Footage: 2383 FNL 1852 FEL
Bottom Hole Location:	Sec:16 Twp: 6S 94W	Footage: 2383 FNL 1852 FEL
Proposed Depth/Form:	8582 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: E2

Wellbore Completed
Completion Date:	12/1/2006
Spud Date:	11/12/2006	Spud Date Is:	ACTUAL
Measured TD:	8505 ft.	Measured PB depth:	8449 ft.
True Vertical TD:	8453 ft.	True Vertical PB depth:
Top PZ Location:	Sec:16 Twp: 6S 94W	Footage: 2372 FNL 1849 FEL
Bottom Hole Location:	Sec:16 Twp: 6S 94W	Footage: 2372 FNL 1849 FEL
Log Types:	CBL; RESERVOIR MONITOR TOOL ELITE

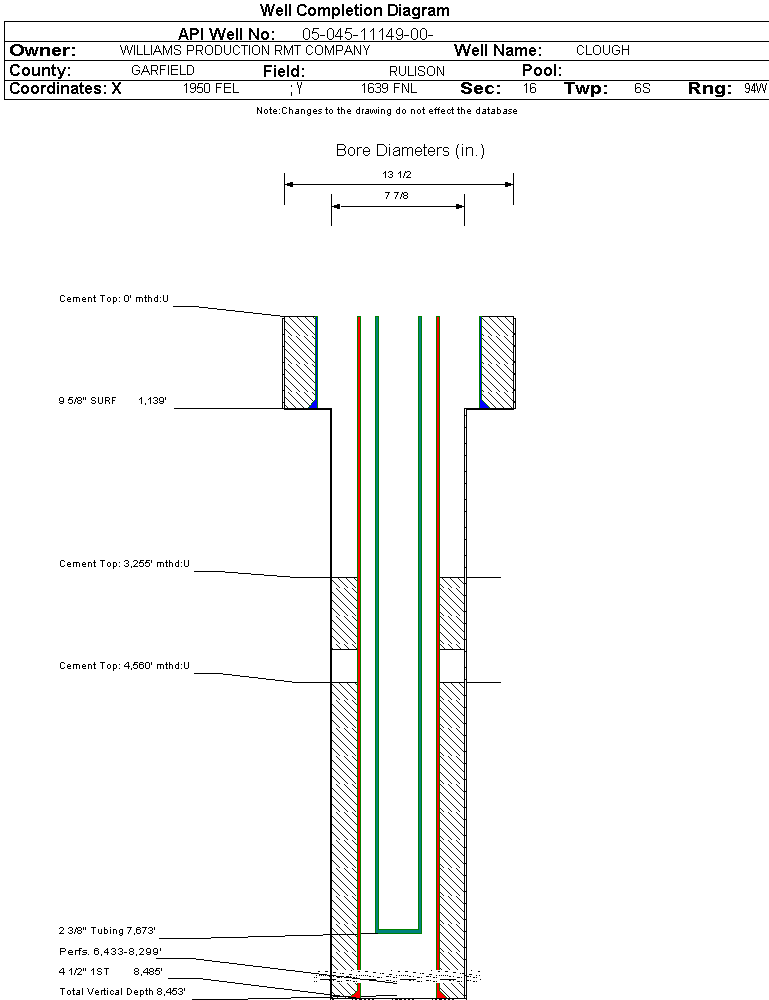

Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1139 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:	Sacks: 290, Top: 0 ft., Bottom: 1139 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8485 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 1000, Top: 4560 ft., Bottom: 8485 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4147 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 250, Top: 3255 ft., Bottom: 4147 ft., Determination Method: CALC
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2403 ft.		N	N
MESAVERDE	4928 ft.		N	N
CAMEO	7728 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 3/26/2007 Interval Top: 6433 ft. Interval Bottom: 8299 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	1/21/2007	Choke Size:	0.313 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	1/20/2007
Treatment Summary:	2500 GALS 7.5% HCL; 617,000# 20/40 SAND; 17,199 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7673 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	3/26/2007	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	0
CASING_PRESS	417
MCF_GAS	1131
TUBING_PRESS	330

Perforation Data:
Interval Top:	6433 ft.	# Of Holes:	117
Interval Bottom:	8299 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	53
Total Gas Produced (MCF)	12404
GOR	234037
GOR Determination	MCFE
Average BOE per Day	6.000
Average MCFE per Day	34.825

Federal Financial Assurance

Tribal Well
