Wellbore #00 Wellbore Classification: GW Status: PR - 8/5/2005 Measured TD: 8755 ft. Vertical TD: 8513 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/5/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20052809 | Expiration Date: | 9/12/2006 | | Proposed Top PZ Location: | Sec:15 Twp: 6S 94W | Footage: 1872 FNL 623 FEL | | Bottom Hole Location: | Sec:15 Twp: 6S 94W | Footage: 1872 FNL 623 FEL | | Proposed Depth/Form: | 8825 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: N/2 |
| | |

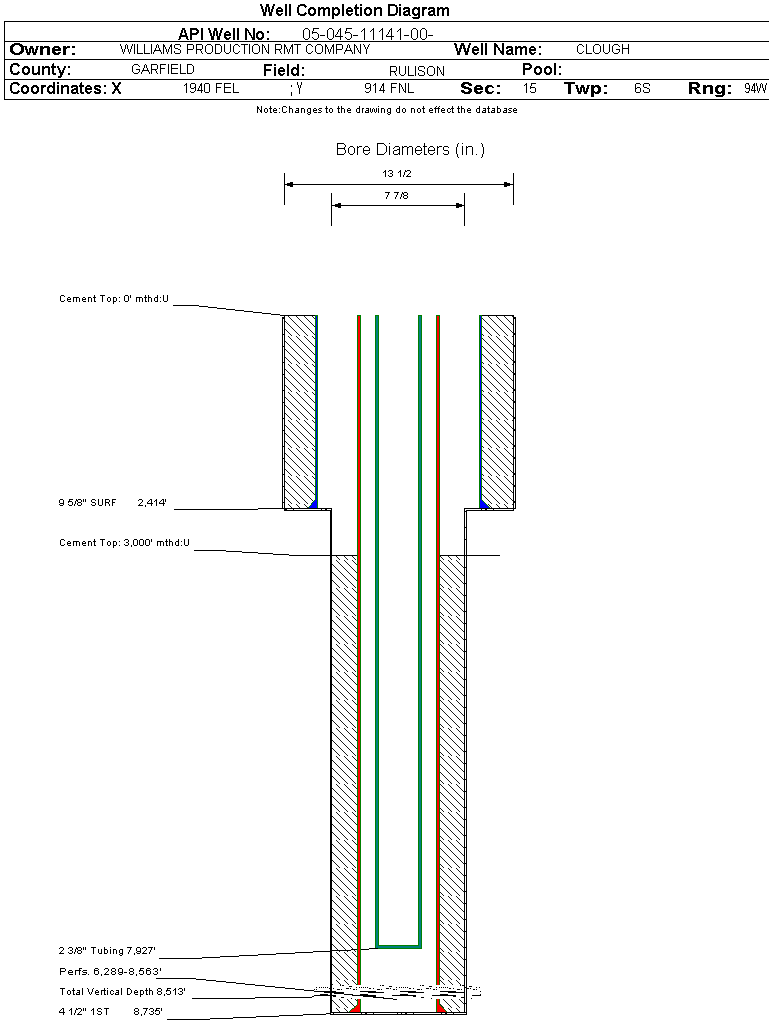

| Wellbore Completed | | Completion Date: | 5/27/2006 | | Spud Date: | 5/7/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8755 ft. | Measured PB depth: | 8665 ft. | | True Vertical TD: | 8513 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:15 Twp: 6S 95W | Footage: 1851 FNL 630 FEL | | Bottom Hole Location: | Sec:15 Twp: 6S 95W | Footage: 1851 FNL 630 FEL | | Log Types: | CBL. RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2414 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 430, Top: 0 ft., Bottom: 2414 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8735 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1015, Top: 3000 ft., Bottom: 8735 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2113 ft. | | N | N | | MESAVERDE | 4856 ft. | | N | N | | CAMEO | 7693 ft. | | N | N | | ROLLINS | 8593 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 1/13/2007 Interval Top: 6289 ft. Interval Bottom: 8563 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/15/2006 | Choke Size: | 0.156 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/14/2006 | | Treatment Summary: | 3526 GALS 7 1/2% HCL; 741800 # 20/40 SAND; 20492 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7927 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/13/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 2225 | | MCF_GAS | 970 | | TUBING_PRESS | 1962 |
| | Perforation Data: | | Interval Top: | 6289 ft. | # Of Holes: | 125 | | Interval Bottom: | 8563 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 21 |
| Total Gas Produced (MCF) | 11429 |
| GOR | 544238 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.454 |
| Average MCFE per Day | 31.651 |
| Federal Financial Assurance | i | |
|
|
