Wellbore #00 Wellbore Classification: GW Status: PR - 8/5/2005 Measured TD: 8540 ft. Vertical TD: 8535 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/5/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20052805 | Expiration Date: | 9/12/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1029 FNL 2010 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1029 FNL 2010 FEL | | Proposed Depth/Form: | 9595 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 110 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 492, Top: , Bottom: 1100 ft. |
| | |

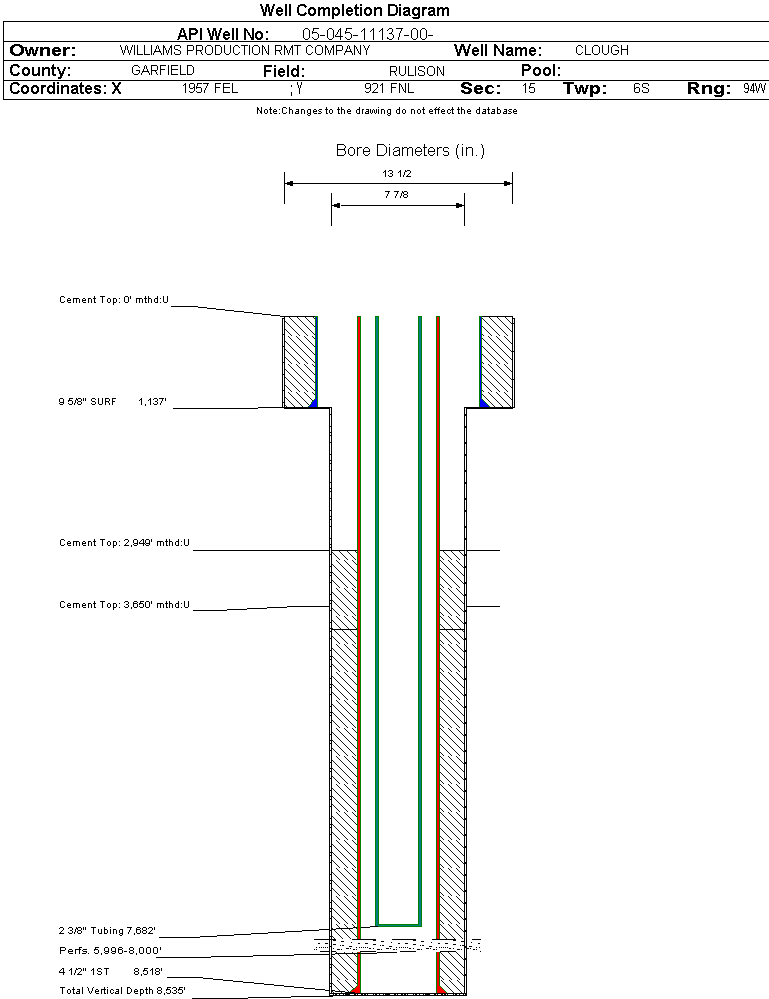

| Wellbore Completed | | Completion Date: | 9/6/2006 | | Spud Date: | 7/20/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8540 ft. | Measured PB depth: | 8472 ft. | | True Vertical TD: | 8535 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:15 Twp: 6S 94W | Footage: 1035 FNL 2004 FEL | | Bottom Hole Location: | Sec:15 Twp: 6S 94W | Footage: 1035 FNL 2004 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1137 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 274, Top: 0 ft., Bottom: 1137 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8518 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1105, Top: 3650 ft., Bottom: 8518 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 3940 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 2949 ft., Bottom: 3940 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2123 ft. | | N | N | | MESAVERDE | 4666 ft. | | N | N | | CAMEO | 7483 ft. | | N | N | | ROLLINS | 8381 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 1/21/2007 Interval Top: 5996 ft. Interval Bottom: 8000 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/26/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/25/2006 | | Treatment Summary: | 4,160 GALS 7.5% HCL; 902,300# 20/40 SAND; 22,129 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7682 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/21/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1593 | | MCF_GAS | 883 | | TUBING_PRESS | 1287 |
| | Perforation Data: | | Interval Top: | 5996 ft. | # Of Holes: | 139 | | Interval Bottom: | 8000 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 23 |
| Total Gas Produced (MCF) | 12838 |
| GOR | 558173 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.129 |
| Average MCFE per Day | 35.551 |
| Federal Financial Assurance | i | |
|
|
