COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11136		Well Classification: GW Status: PR - 9/13/2005
Well Name/No:CLOUGH #RWF 542-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/13/2005
FacilityID:279998LocationID:335572
County:GARFIELD #045Location:NWNE 15 6S94W 6
Field:RULISON - #75400Elevation:5666 ft.
Basin:PICEANCE BASIN
Planned Location:926FNL  1949 FELLat/Long: 39.529829 / -107.872560Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.529965 / -107.871916Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/5/2005             Measured TD: 8957 ft.    Vertical TD: 8564 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/5/2005
Wellbore PermitDIRECTIONAL
Permit #:20052804 Expiration Date:9/12/2006
Proposed Top PZ Location:Sec:15 Twp: T6S R94W Footage: 2502 FNL  626 FEL
Bottom Hole Location:Sec:15 Twp: T6S R94W Footage: 2502 FNL  626 FEL
Proposed Depth/Form:8950 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:8/24/2006
Spud Date:7/24/2006Spud Date Is:ACTUAL
Measured TD:8957 ft.Measured PB depth:8730 ft.
True Vertical TD:8564 ft.True Vertical PB depth:
Top PZ Location:Sec:15 Twp: 6S 94WFootage: 2488 FNL  643 FEL
Bottom Hole Location:Sec:15 Twp: 6S 94WFootage: 2488 FNL  643 FEL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG

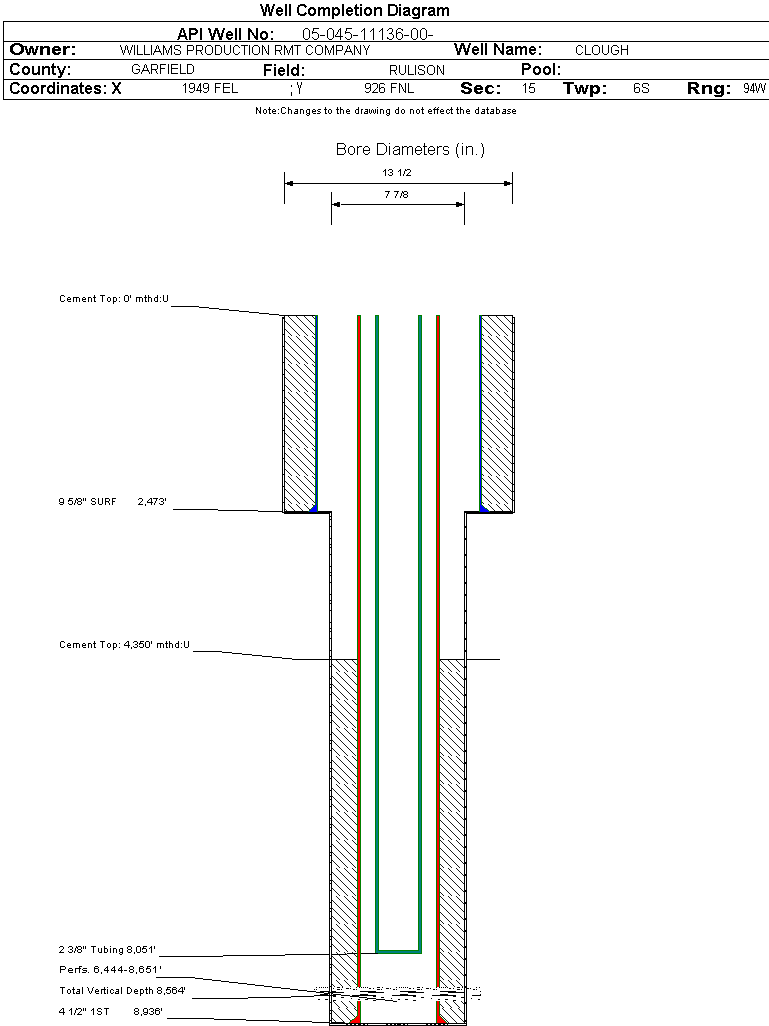

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2473 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 551, Top: 0 ft., Bottom: 2472 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8936 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1223, Top: 4350 ft., Bottom: 8935 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2103 ft.NN
MESAVERDE4972 ft.NN
CAMEO7850 ft.NN
ROLLINS8750 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/21/2007                 Interval Top: 6444 ft.    Interval Bottom: 8651 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/26/2007Choke Size:0.156 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/25/2006
Treatment Summary:3539 GALS 7 1/2% HCL; 686900# 20/40 SAND; 18119 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:8051 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/21/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 2449
MCF_GAS 1072
TUBING_PRESS 2084
Perforation Data:
Interval Top:6444 ft.# Of Holes:123
Interval Bottom:8651 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)11118
GOR555900
GOR DeterminationMCFE
Average BOE per Day5.312
Average MCFE per Day30.800

 Federal Financial Assurance  i

 Tribal Well  i No
