COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11123		Well Classification: GW Status: PR - 10/1/2017
Well Name/No:CSF #41B-07-07-91
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 66578
Facility Status:PRStatus Date10/1/2017
FacilityID:279976LocationID:335052
County:GARFIELD #045Location:SWNW 8 7S91W 6
Field:MAMM CREEK - #52500Elevation:6949 ft.
Basin:PICEANCE BASIN
Planned Location:1821FNL  852 FWLLat/Long: 39.464030 / -107.583370Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.464080 / -107.582760Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2017             Measured TD: 7266 ft.    Vertical TD: 6740 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2017
Wellbore PermitDIRECTIONAL
Permit #:20052345 Expiration Date:9/12/2006
Proposed Top PZ Location:Sec:7 Twp: 7S 91W Footage: 681 FNL  663 FEL
Bottom Hole Location:Sec:7 Twp: 7S 91W Footage: 681 FNL  663 FEL
Proposed Depth/Form:7401 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/8/2006
Spud Date:7/25/2006Spud Date Is:ACTUAL
Measured TD:7266 ft.Measured PB depth:7143 ft.
True Vertical TD:6740 ft.True Vertical PB depth:6617 ft.
Top PZ Location:Sec:7 Twp: 7S 91WFootage: 681 FNL  663 FEL
Bottom Hole Location:Sec:7 Twp: 7S 91WFootage: 681 FNL  663 FEL
Log Types:TRIPLE COMBO (TO BE SNT BY LOGGING CO.),MUD LOG, TEMP.SURVEY, CEMENT BOND

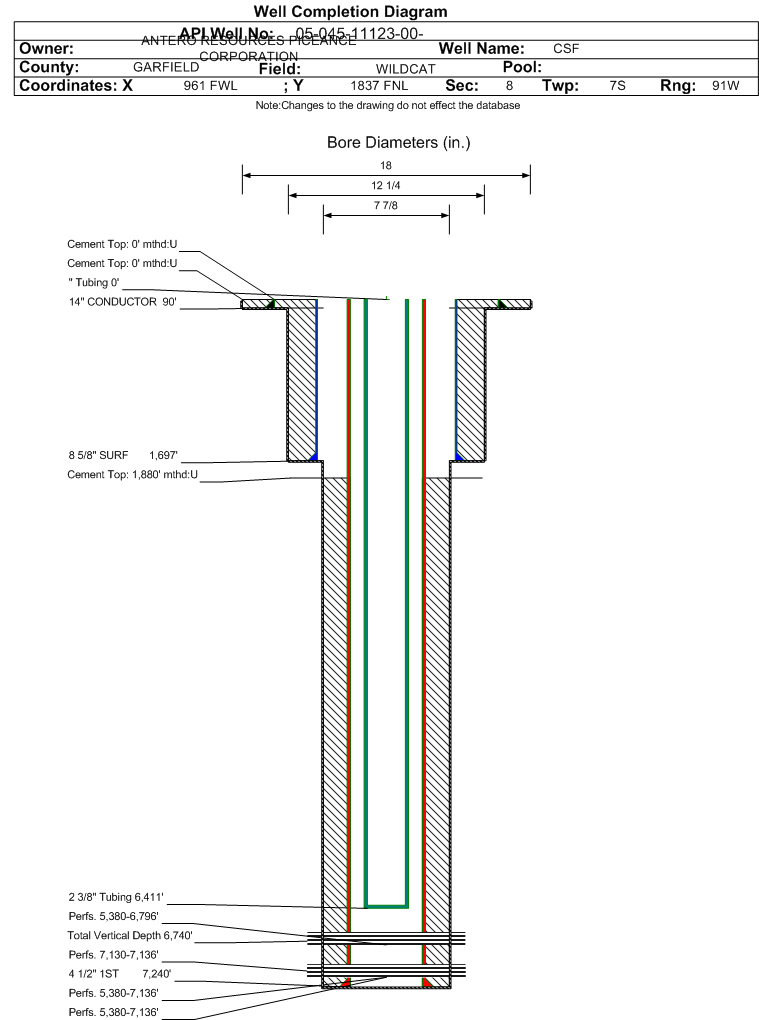

Casing:String Type: CONDUCTOR, Hole Size: 18 in., Size: 14 in., Top: 0 ft., Depth: 90 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 90 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1697 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 660, Top: 0 ft., Bottom: 1697 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7240 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 1880 ft., Bottom: 7240 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3175 ft.NN
CAMEO COAL6764 ft.NN
ROLLINS7075 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 10/1/2017                 Interval Top: 7130 ft.    Interval Bottom: 7136 ft.

 Completed Information for Formation ROLLINS
1st Production Date:11/6/2006Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/9/2006
Treatment Summary:RLNS: FRAC'D W/ 2011 BBLS SLICKWATER & 55,000# 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RLNS.
Perforation Data:
Interval Top:7130 ft.# Of Holes:18
Interval Bottom:7136 ft.Hole Size:0.36 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/1/2017                 Interval Top: 5380 ft.    Interval Bottom: 6796 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/6/2006Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/20/2006
Treatment Summary:WFCM: FRAC'D W/13,945 BBLS SLICKWATER & 405,000# 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:5380 ft.# Of Holes:105
Interval Bottom:6796 ft.Hole Size:0.36 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 3/19/2008                 Interval Top: 5380 ft.    Interval Bottom: 7136 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:10/31/2006Choke Size:0.250 in.
Formation Name:WILLIAMS FORK-ILESCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/31/2006
Treatment Summary:6 ZONES WERE ACIDIZED W/4250 GALS IN 6 STAGES. 6 ZONES WERE FRACTURE STIMULATED W/A TOTAL OF 448,294# OF 30/50 SAND IN 673,953 GALS OF SLICKWATER IN 6. SEE WELLBORE DIAGRAM FOR DETAILS OF EACH TREATMENT. TREATMENT DATES: VARIOUS.
Tubing Size:2.375 in.Tubing Setting Depth:6411 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/13/2006Test Method:THRU SEPERATOR
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 186
CALC_BBLS_H2O 186
CALC_MCF_GAS 623
CASING_PRESS 1900
MCF_GAS 623
TUBING_PRESS 1150
Perforation Data:
Interval Top:5380 ft.# Of Holes:102
Interval Bottom:7136 ft.Hole Size:0.36 in.

Formation WMRCM                   Formation Classification:  GW                   Status:  CM - 11/13/2006                Interval Top: 5380 ft.    Interval Bottom: 7136 ft.

 Completed Information for Formation WILLIAMS FK-ROLLINS-CAMEO
1st Production Date:11/6/2006Choke Size:0.250 in.
Formation Name:WILLIAMS FK-ROLLINS-CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/9/2006
Treatment Summary:SEE INDIVIDUAL FORMATION BREAKDOWN.
Tubing Size:2.375 in.Tubing Setting Depth:6411 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/13/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 186
BBLS_OIL 0
CALC_BBLS_H2O 186
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 623
CASING_PRESS 1900
MCF_GAS 623
TUBING_PRESS 1150
Perforation Data:
Interval Top:5380 ft.# Of Holes:123
Interval Bottom:7136 ft.Hole Size:0.36 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)6588
GOR439200
GOR DeterminationMCFE
Average BOE per Day3.153
Average MCFE per Day18.282

 Federal Financial Assurance  i Y

 Tribal Well  i No
