Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2023 Measured TD: 7467 ft. Vertical TD: 7089 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20052344 | Expiration Date: | 9/12/2006 | | Proposed Top PZ Location: | Sec:7 Twp: 7S 91W | Footage: 684 FNL 2141 FWL | | Bottom Hole Location: | Sec:7 Twp: 7S 91W | Footage: 684 FNL 2141 FWL | | Proposed Depth/Form: | 7485 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

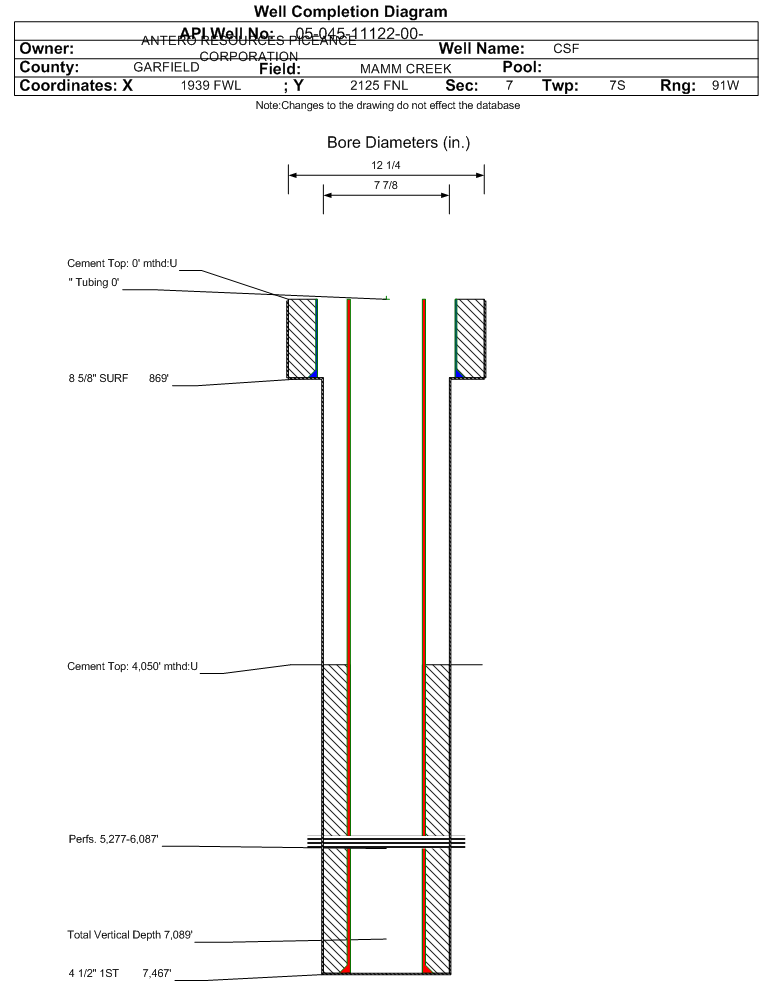

| Wellbore Completed | | Completion Date: | 12/2/2005 | | Spud Date: | 10/17/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7467 ft. | Measured PB depth: | 7380 ft. | | True Vertical TD: | 7089 ft. | True Vertical PB depth: | 7018 ft. | | Top PZ Location: | Sec:7 Twp: 7S 91W | Footage: 684 FNL 2141 FWL | | Bottom Hole Location: | Sec:7 Twp: 7S 91W | Footage: 684 FNL 2141 FWL | | Log Types: | CEMENT BOND LOG, TEMP SURVEY , MUD LOG, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MICROLOG, BOREHOLE VOLUME PLOT | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 869 ft., Weight: 24# , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 869 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7467 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 715, Top: 4050 ft., Bottom: 7467 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3546 ft. | | N | N | | CAMEO | 6954 ft. | | N | N | | ROLLINS | 7278 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 11/1/2023 Interval Top: 5277 ft. Interval Bottom: 6087 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING UP CASING. WELL IS ON COMPRESSION. | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/2/2005 | | Treatment Summary: | 6087'-6087' 50,262 LBS 30/50 WHITE SAND IN 66,099 GALLONS OF SLICK WATER 5626'-5690' 130,200 LBS 30/50 WHITE SAND IN 142,823 GALLONS SLICK WATER 5128'-5279' 48,800 LBS 30/50 WHITE SAND IN 58,898 GALLONS OF SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/3/2005 | Test Method: | PROD.UP CSG | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 30 | | CALC_BBLS_H2O | 30 | | CALC_MCF_GAS | 242 | | CASING_PRESS | 400 | | MCF_GAS | 242 |
| | Perforation Data: | | Interval Top: | 5277 ft. | # Of Holes: | 3 | | Interval Bottom: | 6087 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
11/2024 - 10/2025 |
| Total Oil Produced (Barrels) | 10 |
| Total Gas Produced (MCF) | 3046 |
| GOR | 304600 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.468 |
| Average MCFE per Day | 8.505 |
| Federal Financial Assurance | i | Y |
|
|
