COGIS - WELL SCOUT CARD

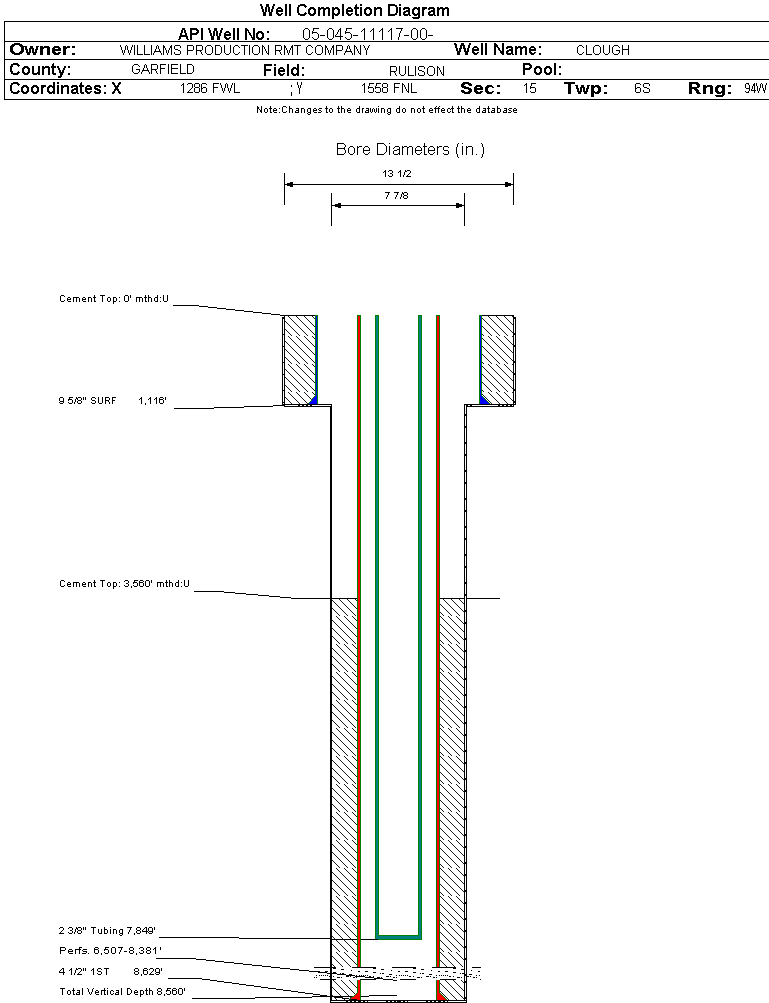

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11117		Well Classification: GW Status: PR - 6/8/2006
Well Name/No:CLOUGH #RWF 522-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/8/2006
FacilityID:279932LocationID:335571
County:GARFIELD #045Location:SWNW 15 6S94W 6
Field:RULISON - #75400Elevation:5769 ft.
Basin:PICEANCE BASIN
Planned Location:1558FNL  1286 FWLLat/Long: 39.528089 / -107.879370Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.528180 / -107.879240Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/8/2006             Measured TD: 8650 ft.    Vertical TD: 8560 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/8/2006
Wellbore PermitDIRECTIONAL
Permit #:20062863 Expiration Date:8/16/2007
Proposed Top PZ Location:Sec: Twp: Footage: 2198 FNL  2022 FWL
Bottom Hole Location:Sec:15 Twp: 6S 94W Footage: 2198 FNL  2022 FWL
Proposed Depth/Form:8720 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-41 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/29/2006
Spud Date:12/10/2006Spud Date Is:ACTUAL
Measured TD:8650 ft.Measured PB depth:8590 ft.
True Vertical TD:8560 ft.True Vertical PB depth:
Top PZ Location:Sec:15 Twp: 6S 94WFootage: 2177 FNL  2018 FWL
Bottom Hole Location:Sec:15 Twp: 6S 94WFootage: 2177 FNL  2018 FWL
Log Types:CBL; HRI; SD/DSN; MUDLOG
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1116 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 0 ft., Bottom: 1116 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8629 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1145, Top: 3560 ft., Bottom: 8629 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2211 ft.NN
MESAVERDE4796 ft.NN
CAMEO7583 ft.NN
ROLLINS8571 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/3/2007                  Interval Top: 6507 ft.    Interval Bottom: 8381 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/21/2007Choke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/20/2007
Treatment Summary:2500 GALS 7 1/2% HCL; 611700# 20/40 SAND; 16375 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:7849 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/3/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1749
MCF_GAS 1208
TUBING_PRESS 1574
Perforation Data:
Interval Top:6507 ft.# Of Holes:100
Interval Bottom:8381 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)32
Total Gas Produced (MCF)14335
GOR447968
GOR DeterminationMCFE
Average BOE per Day6.858
Average MCFE per Day39.785

 Federal Financial Assurance  i

 Tribal Well  i No
