COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-11115		Well Classification: GW	Status: PR - 6/8/2006
Well Name/No:	CLOUGH #RWF 22-15 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	6/8/2006
FacilityID:	279930	LocationID:	335571
County:	GARFIELD #045	Location:	SWNW 15 6S94W 6
Field:	RULISON - #75400	Elevation:	5769 ft.
Basin:	PICEANCE BASIN
Planned Location:	1566FNL 1277 FWL	Lat/Long: 39.528059 / -107.879410	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.528171 / -107.879276	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 6/8/2006 Measured TD: 8710 ft. Vertical TD: 8586 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 6/8/2006
Wellbore Permit			DIRECTIONAL
Permit #:	20062864	Expiration Date:	8/16/2007
Proposed Top PZ Location:	Sec: Twp:	Footage: 2495 FNL 1963 FWL
Bottom Hole Location:	Sec:15 Twp: 6S 94W	Footage: 2495 FNL 1963 FWL
Proposed Depth/Form:	8750 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-41 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	12/9/2006
Spud Date:	11/21/2006	Spud Date Is:	ACTUAL
Measured TD:	8710 ft.	Measured PB depth:	8600 ft.
True Vertical TD:	8586 ft.	True Vertical PB depth:
Top PZ Location:	Sec:15 Twp: 6S 94W	Footage: 2494 FNL 1956 FWL
Bottom Hole Location:	Sec:15 Twp: 6S 94W	Footage: 2494 FNL 1956 FWL
Log Types:	CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG

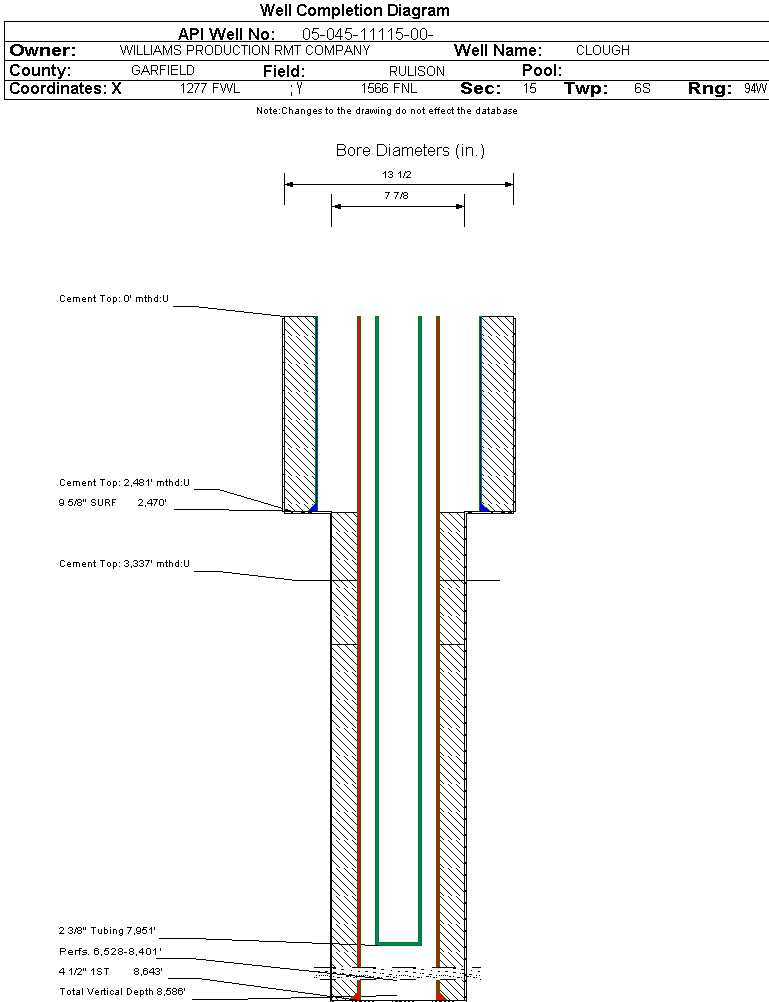

Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2470 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:	Sacks: 546, Top: 0 ft., Bottom: 2470 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8643 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 1145, Top: 2481 ft., Bottom: 8643 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4148 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 250, Top: 3337 ft., Bottom: 4148 ft., Determination Method: CALC
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2211 ft.		N	N
MESAVERDE	4822 ft.		N	N
CAMEO	7617 ft.		N	N
ROLLINS	8601 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 3/3/2007 Interval Top: 6528 ft. Interval Bottom: 8401 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	1/21/2007	Choke Size:	0.219 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	1/20/2007
Treatment Summary:	2503 GAL 7 1/2% HCL; 634400# 20/40 SAND; 17581 BBL SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7951 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	3/3/2007	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
CASING_PRESS	1339
MCF_GAS	1258
TUBING_PRESS	1206

Perforation Data:
Interval Top:	6528 ft.	# Of Holes:	104
Interval Bottom:	8401 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	31
Total Gas Produced (MCF)	14076
GOR	454064
GOR Determination	MCFE
Average BOE per Day	6.732
Average MCFE per Day	39.059

Federal Financial Assurance

Tribal Well
