Wellbore #00 Wellbore Classification: GW Status: PR - 4/27/2007 Measured TD: 8217 ft. Vertical TD: 8061 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/27/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20072352 | Expiration Date: | 5/29/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1003 FSL 666 FEL | | Bottom Hole Location: | Sec:16 Twp: 6S 94W | Footage: 1003 FSL 666 FEL | | Proposed Depth/Form: | 8124 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E2 |
| | |

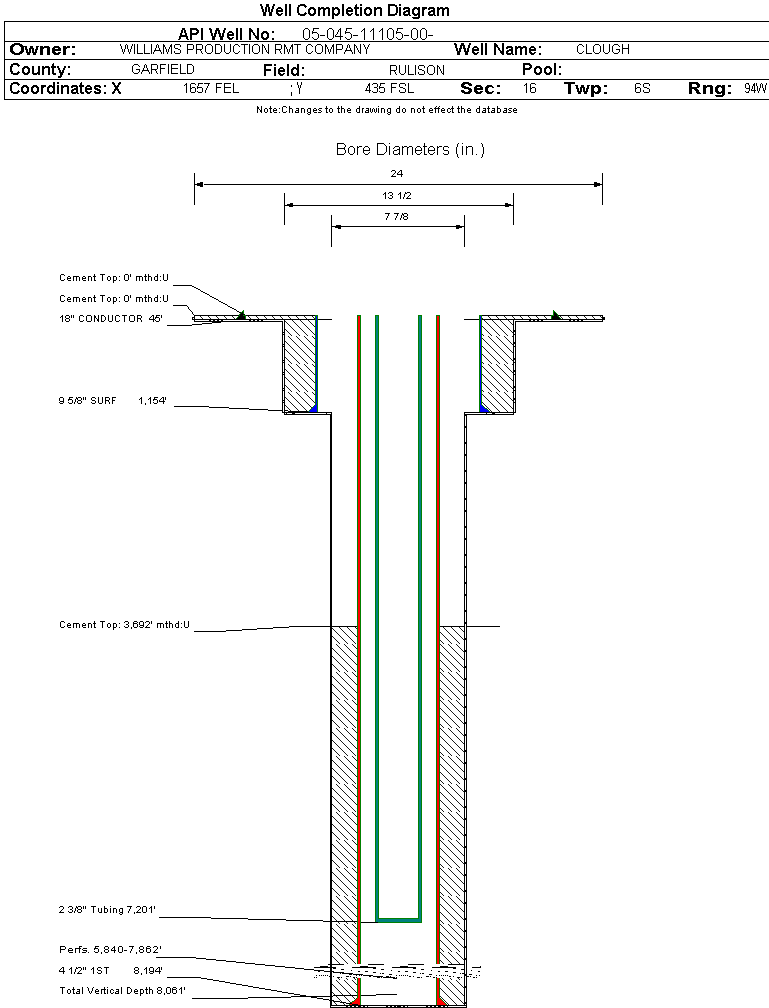

| Wellbore Completed | | Completion Date: | 11/26/2007 | | Spud Date: | 11/14/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8217 ft. | Measured PB depth: | 8161 ft. | | True Vertical TD: | 8061 ft. | True Vertical PB depth: | 8005 ft. | | Top PZ Location: | Sec:16 Twp: 6S 94W | Footage: 1009 FSL 652 FEL | | Bottom Hole Location: | Sec:16 Twp: 6S 94W | Footage: 1009 FSL 652 FEL | | Log Types: | CBL; HRI/SD/DSN; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1154 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 160, Top: 0 ft., Bottom: 1154 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8194 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1001, Top: 3692 ft., Bottom: 8194 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1801 ft. | | N | N | | MESAVERDE | 4415 ft. | | N | N | | CAMEO | 7274 ft. | | N | N | | ROLLINS | 8191 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/24/2008 Interval Top: 5840 ft. Interval Bottom: 7862 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/10/2008 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/2/2008 | | Treatment Summary: | 4,006 GALS 7.5% HCL; 788,600# 20/40 SAND; 23,348 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7201 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/24/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1113 | | CASING_PRESS | 690 | | MCF_GAS | 1027 | | TUBING_PRESS | 532 |
| | Perforation Data: | | Interval Top: | 5840 ft. | # Of Holes: | 115 | | Interval Bottom: | 7862 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 31 |
| Total Gas Produced (MCF) | 16234 |
| GOR | 523677 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.767 |
| Average MCFE per Day | 45.027 |
| Federal Financial Assurance | i | |
|
|
