COGIS - WELL SCOUT CARD

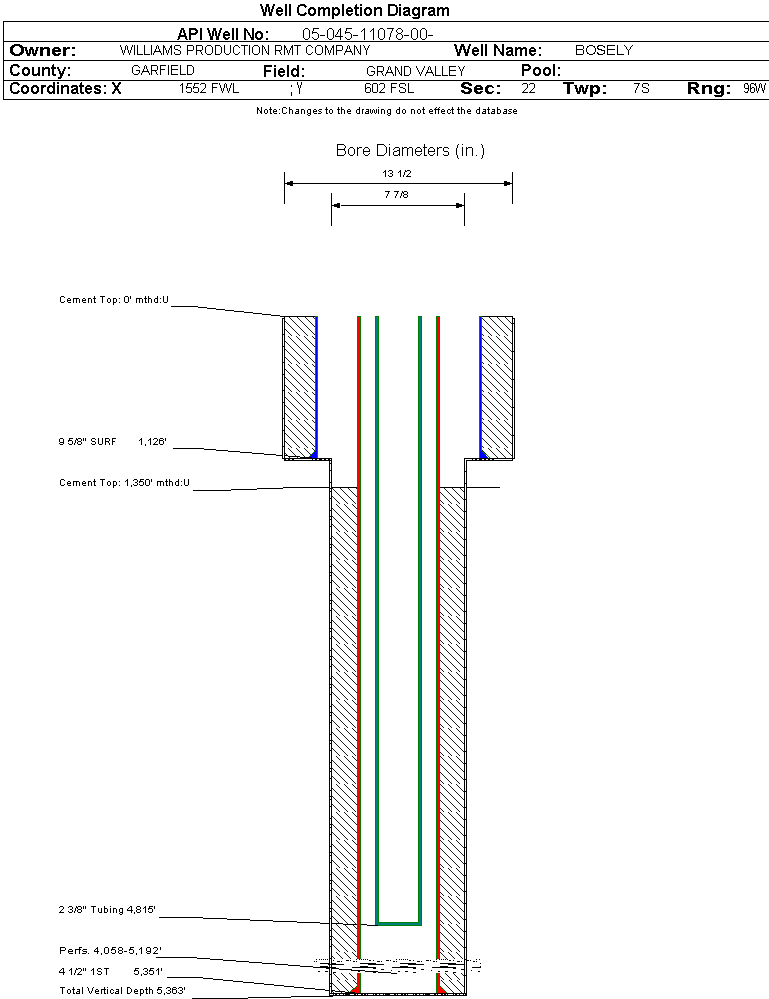

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11078		Well Classification: GW Status: PR - 4/21/2006
Well Name/No:BOSELY #SG 424-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/21/2006
FacilityID:279737LocationID:334645
County:GARFIELD #045Location:SESW 22 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5250 ft.
Basin:PICEANCE BASIN
Planned Location:602FSL  1552 FWLLat/Long: 39.417359 / -108.100175Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.417491 / -108.100203Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/21/2006             Measured TD: 5387 ft.    Vertical TD: 5363 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/21/2006
Wellbore PermitDIRECTIONAL
Permit #:20052734 Expiration Date:9/1/2006
Proposed Top PZ Location:Sec: Twp: Footage: 815 FSL  1836 FWL
Bottom Hole Location:Sec: Twp: Footage: 815 FSL  1836 FWL
Proposed Depth/Form:5393 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: 80, Drill Unit: S2
Wellbore Completed
Completion Date:3/3/2006
Spud Date:2/26/2006Spud Date Is:ACTUAL
Measured TD:5387 ft.Measured PB depth:5327 ft.
True Vertical TD:5363 ft.True Vertical PB depth:
Top PZ Location:Sec:22 Twp: 7S 96WFootage: 831 FSL  1841 FWL
Bottom Hole Location:Sec:22 Twp: 7S 96WFootage: 831 FSL  1841 FWL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1126 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1126 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5351 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 1350 ft., Bottom: 5351 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G869 ft.NN
FORT UNION1237 ft.NN
MESAVERDE2451 ft.NN
CAMEO4769 ft.NN
ROLLINS5240 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/21/2006                 Interval Top: 4058 ft.    Interval Bottom: 5192 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:3/26/2006Choke Size:0.218 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/3/2006
Treatment Summary:2032 GALS 7 1/2% HCL; 574800# 30/50 SAND; 14066 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:4815 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/21/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_GOR 120500
CASING_PRESS 1370
MCF_GAS 1205
TUBING_PRESS 1308
Perforation Data:
Interval Top:4058 ft.# Of Holes:85
Interval Bottom:5192 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)14377
GOR898562
GOR DeterminationMCFE
Average BOE per Day6.834
Average MCFE per Day39.625

 Federal Financial Assurance  i

 Tribal Well  i No
