COGIS - WELL SCOUT CARD

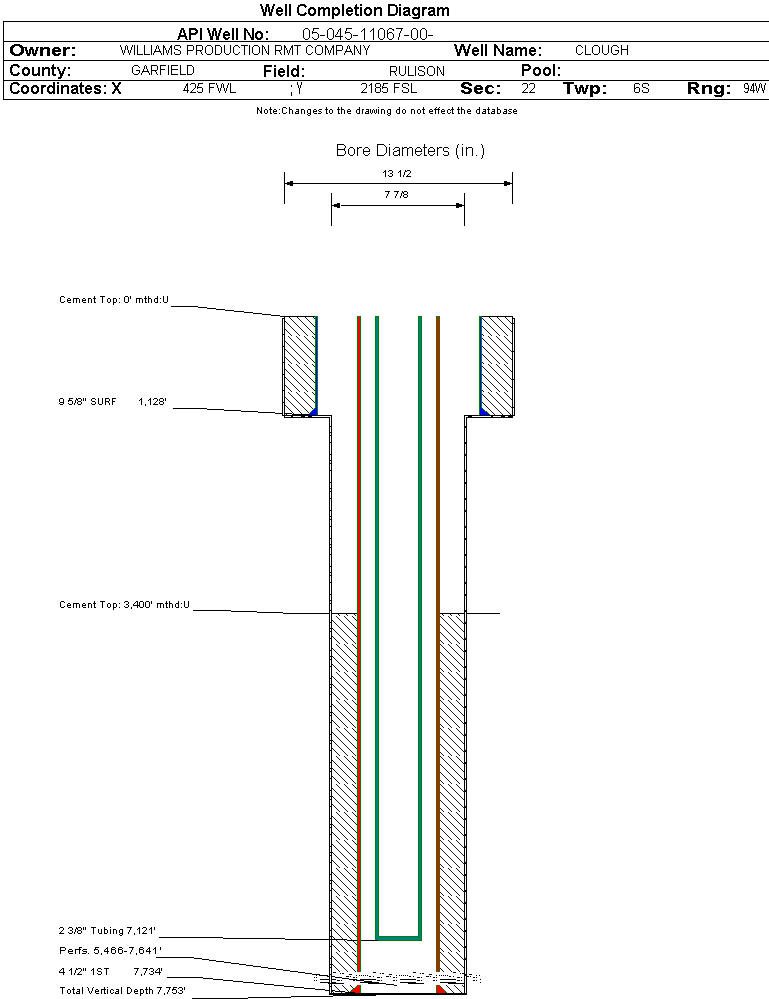

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11067		Well Classification: GW Status: PR - 9/5/2006
Well Name/No:CLOUGH #RMV 224-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/5/2006
FacilityID:279677LocationID:335070
County:GARFIELD #045Location:NWSW 22 6S94W 6
Field:RULISON - #75400Elevation:5410 ft.
Basin:PICEANCE BASIN
Planned Location:2185FSL  425 FWLLat/Long: 39.509379 / -107.882370Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.509545 / -107.882585Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/5/2006             Measured TD: 7788 ft.    Vertical TD: 7753 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/5/2006
Wellbore PermitDIRECTIONAL
Permit #:20052699 Expiration Date:8/30/2006
Proposed Top PZ Location:Sec: Twp: Footage: 1772 FSL  763 FWL
Bottom Hole Location:Sec: Twp: Footage: 1772 FSL  763 FWL
Proposed Depth/Form:7843 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:3/15/2006
Spud Date:2/28/2006Spud Date Is:ACTUAL
Measured TD:7788 ft.Measured PB depth:7730 ft.
True Vertical TD:7753 ft.True Vertical PB depth:
Top PZ Location:Sec:22 Twp: 6S 94WFootage: 1783 FSL  777 FWL
Bottom Hole Location:Sec:22 Twp: 6S 94WFootage: 1783 FSL  777 FWL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1128 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7734 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 977, Top: 3400 ft., Bottom: 7734 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1637 ft.NN
MESAVERDE4112 ft.NN
CAMEO6887 ft.NN
ROLLINS7807 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/5/2006                  Interval Top: 5466 ft.    Interval Bottom: 7641 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/5/2006Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/4/2006
Treatment Summary:4029 GALS 7 1/2% HCL; 931500# 20/40 SAND; 23276 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:7121 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/16/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1464
CASING_PRESS 1732
TUBING_PRESS 1613
Perforation Data:
Interval Top:5466 ft.# Of Holes:164
Interval Bottom:7641 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)23
Total Gas Produced (MCF)17428
GOR757739
GOR DeterminationMCFE
Average BOE per Day8.294
Average MCFE per Day48.133

 Federal Financial Assurance  i

 Tribal Well  i No
