COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11033		Well Classification: GW Status: PR - 3/1/2011
Well Name/No:JACKSON #33C-28-692
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2011
FacilityID:279432LocationID:335505
County:GARFIELD #045Location:NWSE 28 6S92W 6
Field:MAMM CREEK - #52500Elevation:5771 ft.
Basin:PICEANCE BASIN
Planned Location:1587FSL  1446 FELLat/Long: 39.495051 / -107.667363Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.495073 / -107.667237Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2011             Measured TD: 7250 ft.    Vertical TD: 7167 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2011
Wellbore PermitDIRECTIONAL
Permit #:20052506 Expiration Date:8/17/2006
Proposed Top PZ Location:Sec:28 Twp: 6S 92W Footage: 2209 FSL  1981 FEL
Bottom Hole Location:Sec:28 Twp: 6S 92W Footage: 2209 FSL  1981 FEL
Proposed Depth/Form:7216 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:11/24/2005
Spud Date:9/29/2005Spud Date Is:ACTUAL
Measured TD:7250 ft.Measured PB depth:7199 ft.
True Vertical TD:7167 ft.True Vertical PB depth:7116 ft.
Top PZ Location:Sec:28 Twp: 6S 92WFootage: 2152 FSL  1956 FEL
Bottom Hole Location:Sec:28 Twp: 6S 92WFootage: 2152 FSL  1956 FEL
Log Types:HALLIBURTON SD/DSN/HRI/MICROLOG & PRECISION CBL

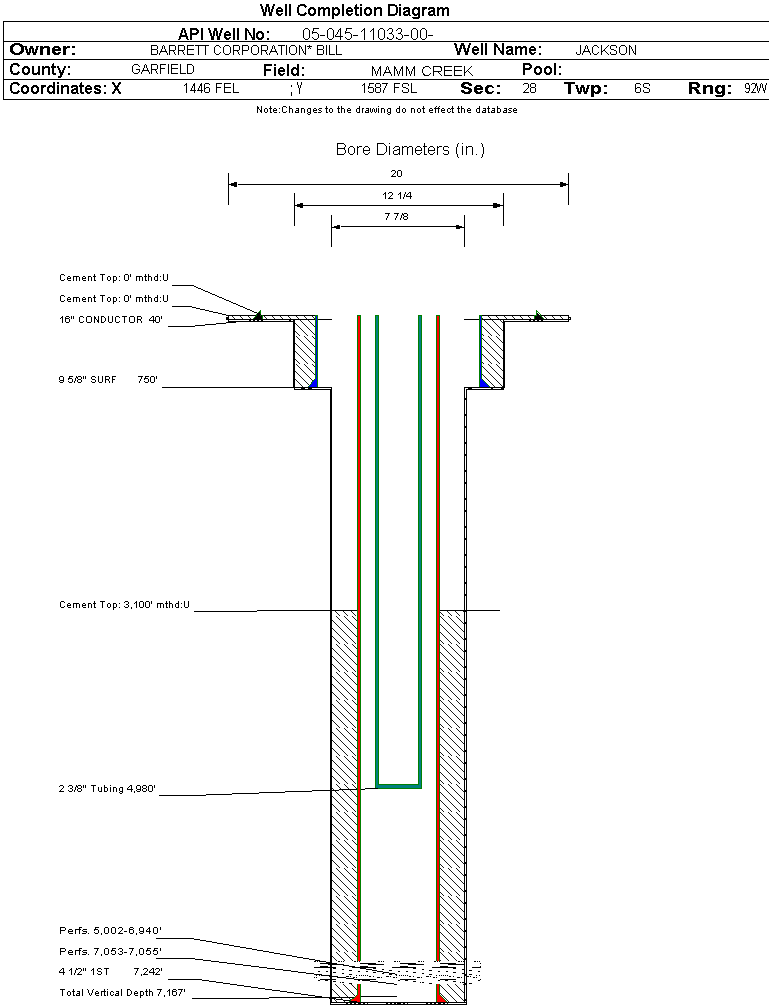

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 750 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 750 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7242 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 3100 ft., Bottom: 7242 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3168 ft.NN
ROLLINS6975 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 3/1/2011                  Interval Top: 7053 ft.    Interval Bottom: 7055 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.344 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/24/2005
Treatment Summary:2/22/06 4,987 BBLS OF FR WATER
Tubing Size:2.375 in.Tubing Setting Depth:4980 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/28/2006Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 1
BTU_GAS 1
CALC_BBLS_H2O 5
CALC_BBLS_OIL 1
CALC_GOR 4
CALC_MCF_GAS 64
CASING_PRESS 2150
MCF_GAS 64
TUBING_PRESS 1350
Perforation Data:
Interval Top:7053 ft.# Of Holes:4
Interval Bottom:7055 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/1/2011                  Interval Top: 5002 ft.    Interval Bottom: 6940 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.344 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/24/2005
Treatment Summary:2/3/06 27,748 BBLS OF FR WATER, 153,326# OF 20/40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4980 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/28/2006Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 93
BBLS_OIL 16
BTU_GAS 1
CALC_BBLS_H2O 93
CALC_BBLS_OIL 16
CALC_GOR 74
CALC_MCF_GAS 1223
CASING_PRESS 2150
MCF_GAS 1223
TUBING_PRESS 1350
Perforation Data:
Interval Top:5002 ft.# Of Holes:210
Interval Bottom:6940 ft.Hole Size:0.34 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)5
Total Gas Produced (MCF)946
GOR189200
GOR DeterminationMCFE
Average BOE per Day0.455
Average MCFE per Day2.659

 Federal Financial Assurance  i

 Tribal Well  i No
