COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11026		Well Classification: GW Status: PR - 1/30/2006
Well Name/No:AP #24-14-696
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/30/2006
FacilityID:279378LocationID:335089
County:GARFIELD #045Location:SWSE 14 6S96W 6
Field:GRAND VALLEY - #31290Elevation:6660 ft.
Basin:PICEANCE BASIN
Planned Location:144FSL  1763 FELLat/Long: 39.516158 / -108.073506Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.516168 / -108.073687Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/30/2006             Measured TD: 8706 ft.    Vertical TD: 8499 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/30/2006
Wellbore PermitDIRECTIONAL
Permit #:20052501 Expiration Date:8/15/2006
Proposed Top PZ Location:Sec:14 Twp: 6S 96W Footage: 495 FSL  1980 FWL
Bottom Hole Location:Sec:14 Twp: 6S 96W Footage: 495 FSL  1980 FWL
Proposed Depth/Form:8779 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-12 , Unit Acreage: , Drill Unit: UNSPAC
Wellbore Completed
Completion Date:12/6/2005
Spud Date:11/7/2005Spud Date Is:ACTUAL
Measured TD:8706 ft.Measured PB depth:8662 ft.
True Vertical TD:8499 ft.True Vertical PB depth:
Top PZ Location:Sec:14 Twp: 6S 96WFootage: 495 FSL  1980 FWL
Bottom Hole Location:Sec:14 Twp: 6S 96WFootage: 495 FSL  1980 FWL
Log Types:CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD LOG

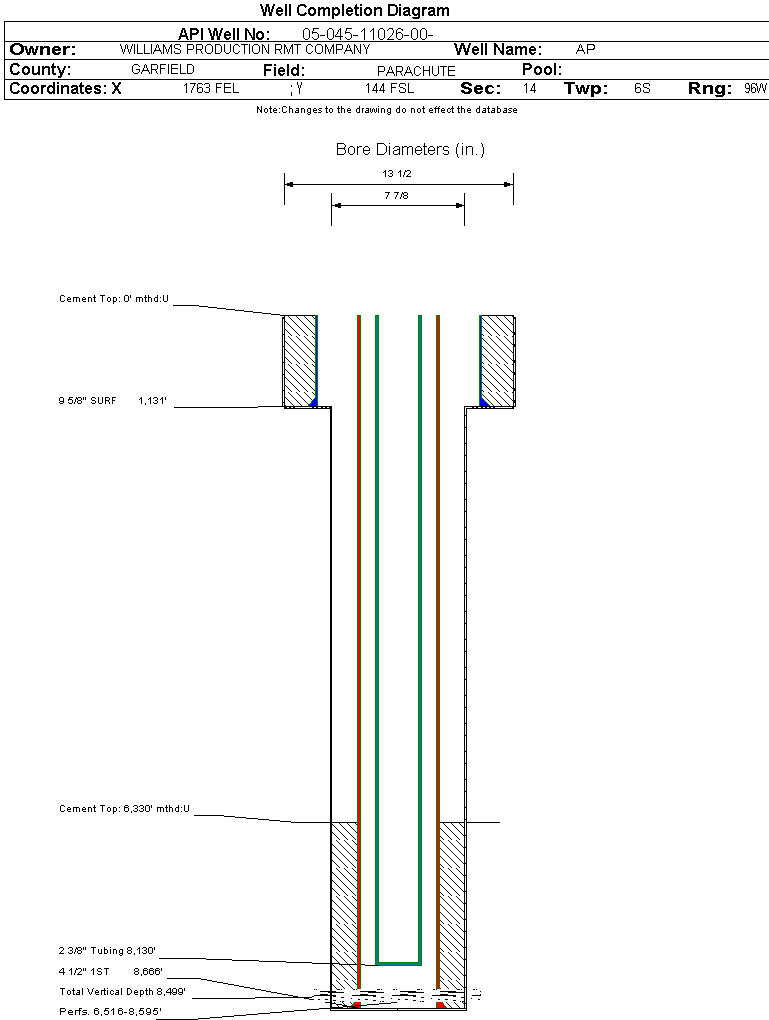

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1131 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1131 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8666 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 990, Top: 6330 ft., Bottom: 8666 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G3348 ft.NN
FORT UNION3669 ft.NN
MESAVERDE5335 ft.NN
CAMEO8171 ft.NN
ROLLINS8633 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/30/2006                 Interval Top: 6516 ft.    Interval Bottom: 8595 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/6/2005
Treatment Summary:8,614 GALS 7.5% HCL; 890,500# 20/40 SAND; 21,807 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:8130 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/30/2006Test Method:FLOWING
Hours Tested:Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1711
CASING_PRESS 2436
TUBING_PRESS 2169
Perforation Data:
Interval Top:6516 ft.# Of Holes:185
Interval Bottom:8595 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)24
Total Gas Produced (MCF)17695
GOR737291
GOR DeterminationMCFE
Average BOE per Day8.401
Average MCFE per Day48.764

 Federal Financial Assurance  i

 Tribal Well  i No
