COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11020		Well Classification: GW Status: PR - 10/1/2024
Well Name/No:AP #41-11-696
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2024
FacilityID:279237LocationID:335874
County:GARFIELD #045Location:NENE 11 6S96W 6
Field:GRAND VALLEY - #31290Elevation:8543 ft.
Basin:PICEANCE BASIN
Planned Location:850FNL  1063 FELLat/Long: 39.542328 / -108.071156Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.542365 / -108.071101Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2024             Measured TD: 11165 ft.    Vertical TD: 11154 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2024
Wellbore Permit
Permit #:20052490 Expiration Date:8/7/2006
Proposed Depth/Form:11106 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/16/2005
Spud Date:9/14/2005Spud Date Is:ACTUAL
Measured TD:11165 ft.Measured PB depth:10921 ft.
True Vertical TD:11154 ft.True Vertical PB depth:
Log Types:CBL;HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY,DUAL SPACED NEUTRON; RESERVOIR MONITOR TOOL ELITE

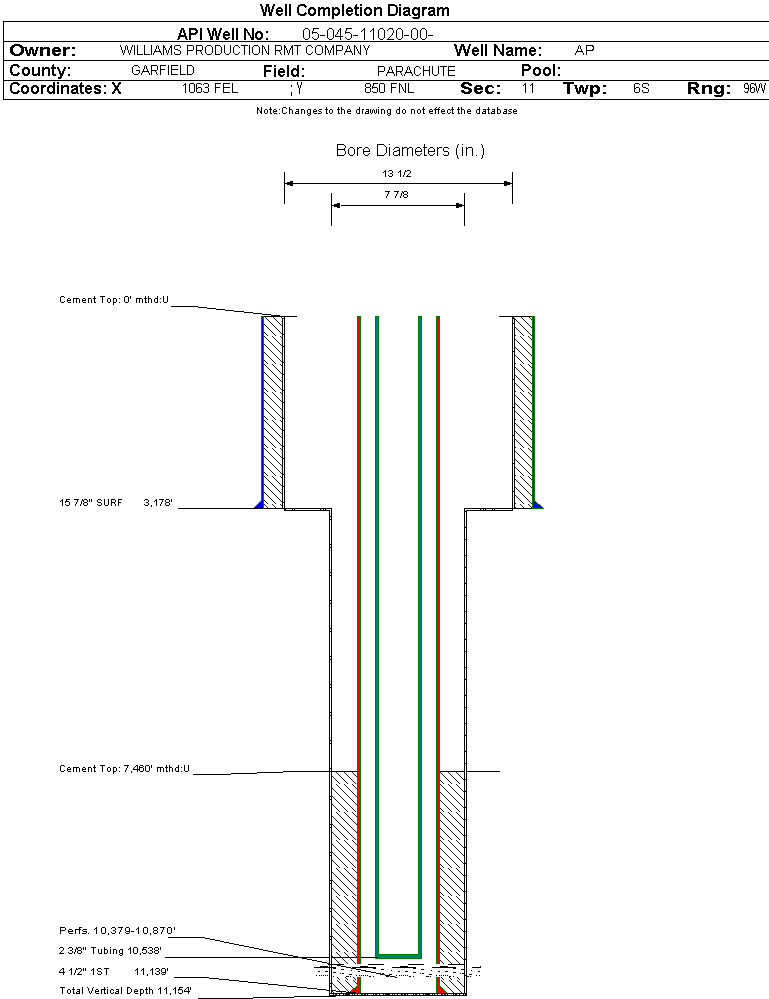

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3178 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1275, Top: 0 ft., Bottom: 3178 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 11139 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 755, Top: 7460 ft., Bottom: 11139 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G5502 ft.NN
FORT UNION5897 ft.NN
MESAVERDE7607 ft.NN
CAMEO10500 ft.NN
ROLLINS10940 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/1/2024                 Interval Top: 10379 ft.    Interval Bottom: 10870 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/24/2005Choke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/19/2005
Treatment Summary:11/19/05 2066 GALS 7 1/2% HCL; 205000# 20/40 SAND; 4670 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:10538 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/5/2005Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 920
CASING_PRESS 473
TUBING_PRESS 309
Perforation Data:
Interval Top:10379 ft.# Of Holes:39
Interval Bottom:10870 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)96
Total Gas Produced (MCF)30470
GOR317395
GOR DeterminationMCFE
Average BOE per Day14.659
Average MCFE per Day85.041

 Federal Financial Assurance  i

 Tribal Well  i No
