COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11019		Well Classification: GW Status: PR - 10/1/2024
Well Name/No:AP #22-9-695
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2024
FacilityID:279236LocationID:335753
County:GARFIELD #045Location:SENW 9 6S95W 6
Field:PARACHUTE - #67350Elevation:8430 ft.
Basin:PICEANCE BASIN
Planned Location:1909FNL  1675 FWLLat/Long: 39.541288 / -108.007004Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.541338 / -108.007121Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

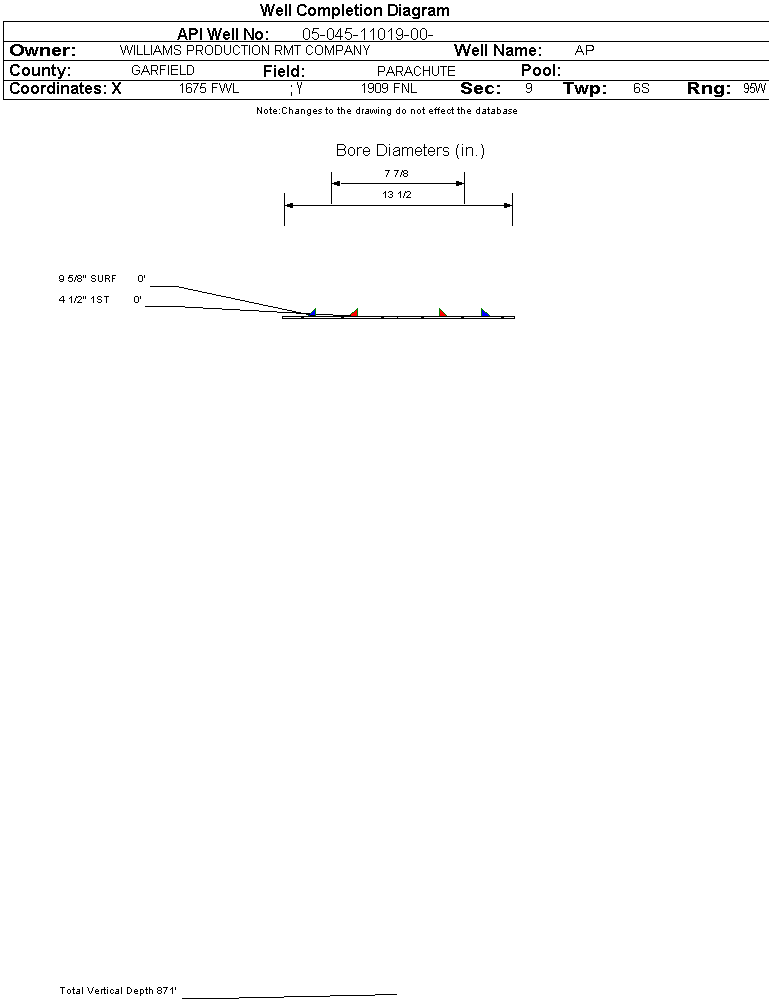

Wellbore #00             Wellbore Classification: GW             Status: AB - 6/23/2006             Measured TD: 871 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 6/23/2006
Wellbore Permit
Permit #:20052489 Expiration Date:8/7/2006
Proposed Depth/Form:11720 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:6/24/2006
Spud Date:6/18/2006Spud Date Is:ACTUAL
Measured TD:871 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
  No formation data to display.

Sidetrack #01             Wellbore Classification: GW             Status: PA - 6/23/2006             Measured TD: 11162 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: GW        PA - 6/23/2006
Wellbore Permit
Permit #:20063456 Expiration Date:7/27/2007
Proposed Depth/Form:11720 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:8/4/2006
Spud Date:6/18/2006Spud Date Is:ACTUAL
Measured TD:11162 ft.Measured PB depth:10594 ft.
True Vertical TD:True Vertical PB depth:
Log Types:MUDLOG
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3102 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 1130, Top: 0 ft., Bottom: 3102 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
  No formation data to display.

Sidetrack #02             Wellbore Classification: GW             Status: PR - 10/1/2024             Measured TD: 11162 ft.    Vertical TD: 11115 ft.

 Wellbore Data for Sidetrack #02Wellbore Classification: GW        PR - 10/1/2024
Wellbore Permit
Permit #:20064425 Expiration Date:9/6/2007
Proposed Depth/Form:11720 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:8/23/2006
Spud Date:6/18/2006Spud Date Is:ACTUAL
Measured TD:11162 ft.Measured PB depth:11032 ft.
True Vertical TD:11115 ft.True Vertical PB depth:
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3064 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 1130, Top: 0 ft., Bottom: 3064 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 11148 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 760, Top: 7820 ft., Bottom: 11148 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G5542 ft.NN
FORT UNION6005 ft.NN
MESAVERDE7915 ft.NN
CAMEO10786 ft.NN
ROLLINS11457 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/1/2024                 Interval Top: 9204 ft.    Interval Bottom: 10995 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/28/2006Choke Size:0.281 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/8/2006
Treatment Summary:6000 GALS 7 1/2% HCL; 747500# 20/40 SAND; 16639 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:10882 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/31/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CASING_PRESS 1800
MCF_GAS 86
TUBING_PRESS 1400
Perforation Data:
Interval Top:9204 ft.# Of Holes:151
Interval Bottom:10995 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)12631
GOR789437
GOR DeterminationMCFE
Average BOE per Day6.016
Average MCFE per Day34.897

 Federal Financial Assurance  i

 Tribal Well  i No
