COGIS - WELL SCOUT CARD

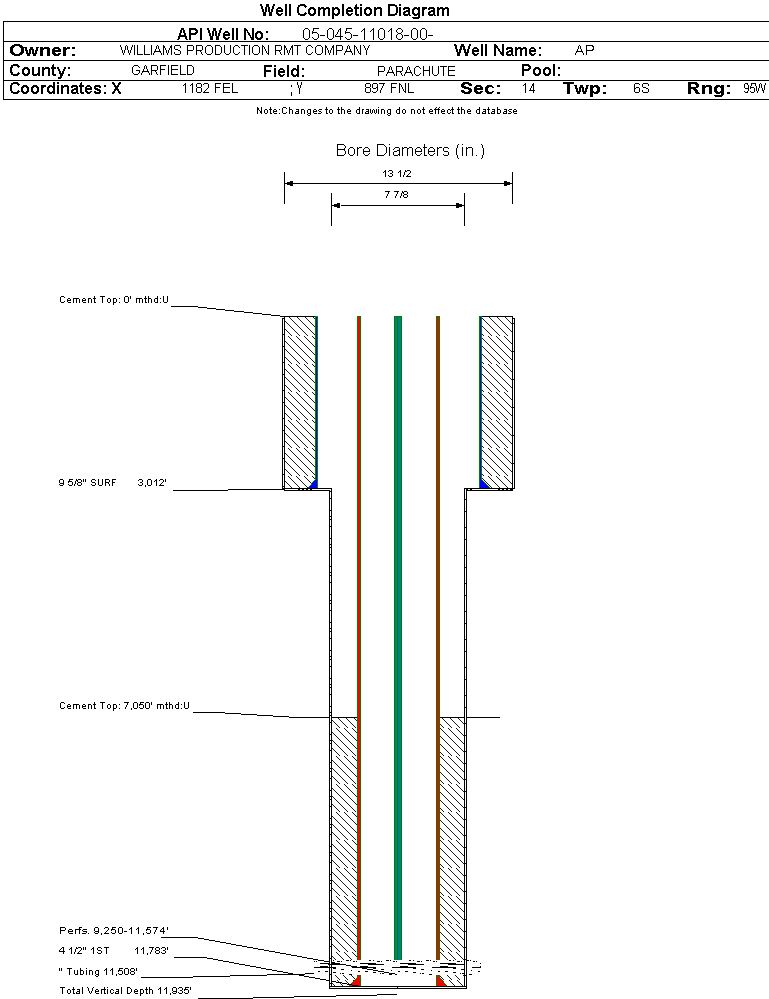

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11018		Well Classification: GW Status: PR - 10/1/2024
Well Name/No:AP #41-14-695
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2024
FacilityID:279235LocationID:324329
County:GARFIELD #045Location:NENE 14 6S95W 6
Field:PARACHUTE - #67350Elevation:8742 ft.
Basin:PICEANCE BASIN
Planned Location:897FNL  1182 FELLat/Long: 39.529468 / -107.961252Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.529621 / -107.961133Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2024             Measured TD: 11938 ft.    Vertical TD: 11935 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2024
Wellbore Permit
Permit #:20052474 Expiration Date:8/7/2006
Proposed Depth/Form:11821 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-12 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:10/30/2005
Spud Date:10/2/2005Spud Date Is:ACTUAL
Measured TD:11938 ft.Measured PB depth:
True Vertical TD:11935 ft.True Vertical PB depth:
Log Types:CBL;HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY,DUAL SPACED NEUTRON; RESERVOIR MONITOR TOOL ELITE
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3012 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1230, Top: 0 ft., Bottom: 3012 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 11783 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 755, Top: 7050 ft., Bottom: 11783 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G5747 ft.NN
FORT UNION6188 ft.NN
MESAVERDE8064 ft.NN
CAMEO10668 ft.NN
ROLLINS11631 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/1/2024                 Interval Top: 9250 ft.    Interval Bottom: 11574 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/2/2005Choke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/24/2006
Treatment Summary:6500 GALS 7 1/2% HCL; 603400# 20/40 SAND; 16434 BBLS SLICKWATER
Tubing Size:Tubing Setting Depth:11508 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/15/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 75
CASING_PRESS 1003
MCF_GAS 461
TUBING_PRESS 415
Perforation Data:
Interval Top:9250 ft.# Of Holes:168
Interval Bottom:11574 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)9651
GOR742384
GOR DeterminationMCFE
Average BOE per Day4.607
Average MCFE per Day26.726

 Federal Financial Assurance  i

 Tribal Well  i No
