Wellbore #00 Wellbore Classification: GW Status: PR - 10/7/2007 Measured TD: 9104 ft. Vertical TD: 8996 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/7/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071326 | Expiration Date: | 4/17/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1980 FNL 2260 FWL | | Bottom Hole Location: | Sec:34 Twp: 6S 93W | Footage: 1980 FNL 2260 FWL | | Proposed Depth/Form: | 9097 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA | Unit Number: | COC 56608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

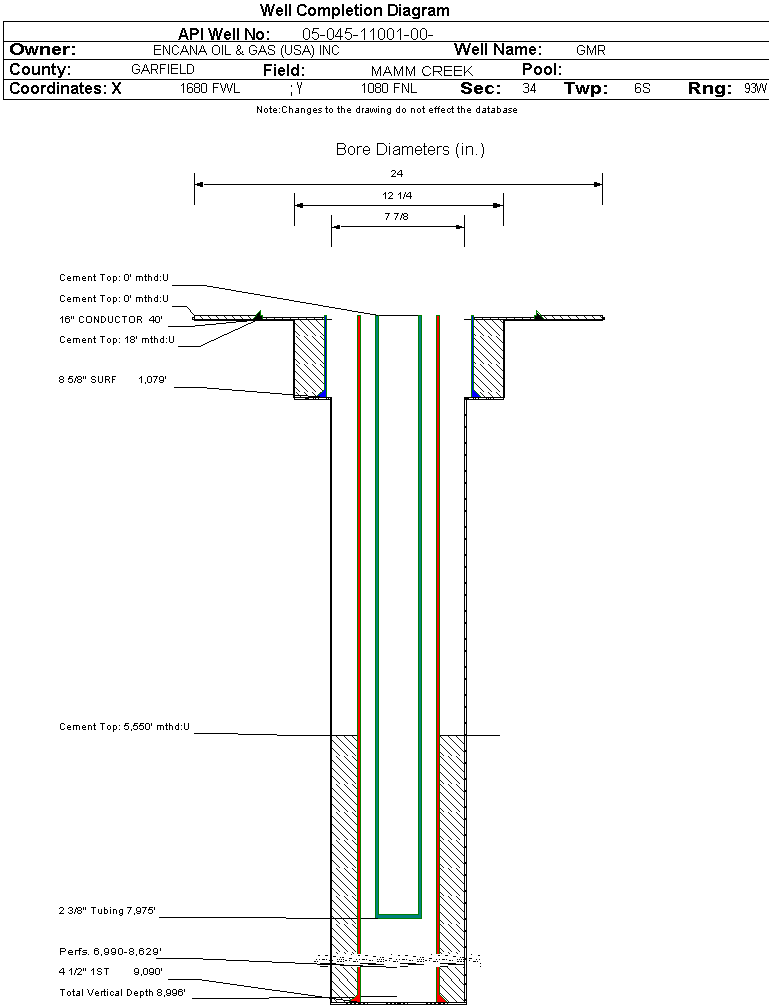

| Wellbore Completed | | Completion Date: | 7/22/2007 | | Spud Date: | 7/1/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 9104 ft. | Measured PB depth: | | | True Vertical TD: | 8996 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:34 Twp: 6S 93W | Footage: 1940 FNL 2274 FWL | | Bottom Hole Location: | Sec:34 Twp: 6S 93W | Footage: 1940 FNL 2274 FWL | | Log Types: | PEX, CBL/TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1079 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 780, Top: 18 ft., Bottom: 1079 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9090 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 635, Top: 5550 ft., Bottom: 9095 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: , Size: , Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: 3RD, Hole Size: , Size: , Top: 0 ft., Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5878 ft. | N | N | | WILLIAMS FORK | 5879 ft. | 8874 ft. | N | N | | ROLLINS | 8875 ft. | 9104 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/7/2007 Interval Top: 6990 ft. Interval Bottom: 8629 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/23/2007 | Choke Size: | 24.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/18/2007 | | Treatment Summary: | STAGES 1-05 TREATED WITH A TOTAL OF 24,976 BBLS OF SLICKWATER, 718,112 LBS 20-40 WHITE SAND 3000 LBS NON API 14/30 FLEX SAND, AND 11,000 LBS NON API FLEX SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7975 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/7/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 117 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 117 | | CALC_MCF_GAS | 632 | | CASING_PRESS | 650 | | MCF_GAS | 632 | | TUBING_PRESS | 350 |
| | Perforation Data: | | Interval Top: | 6990 ft. | # Of Holes: | 140 | | Interval Bottom: | 8629 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 54 |
| Total Gas Produced (MCF) | 16267 |
| GOR | 301240 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.830 |
| Average MCFE per Day | 45.425 |
| Federal Financial Assurance | i | |
|
|
