Wellbore #00 Wellbore Classification: GW Status: PR - 3/23/2006 Measured TD: 6389 ft. Vertical TD: 6077 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/23/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20052254 | Expiration Date: | 7/28/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 128 FSL 2031 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 128 FSL 2031 FEL | | Proposed Depth/Form: | 6386 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 160, Drill Unit: SE4 |
| | |

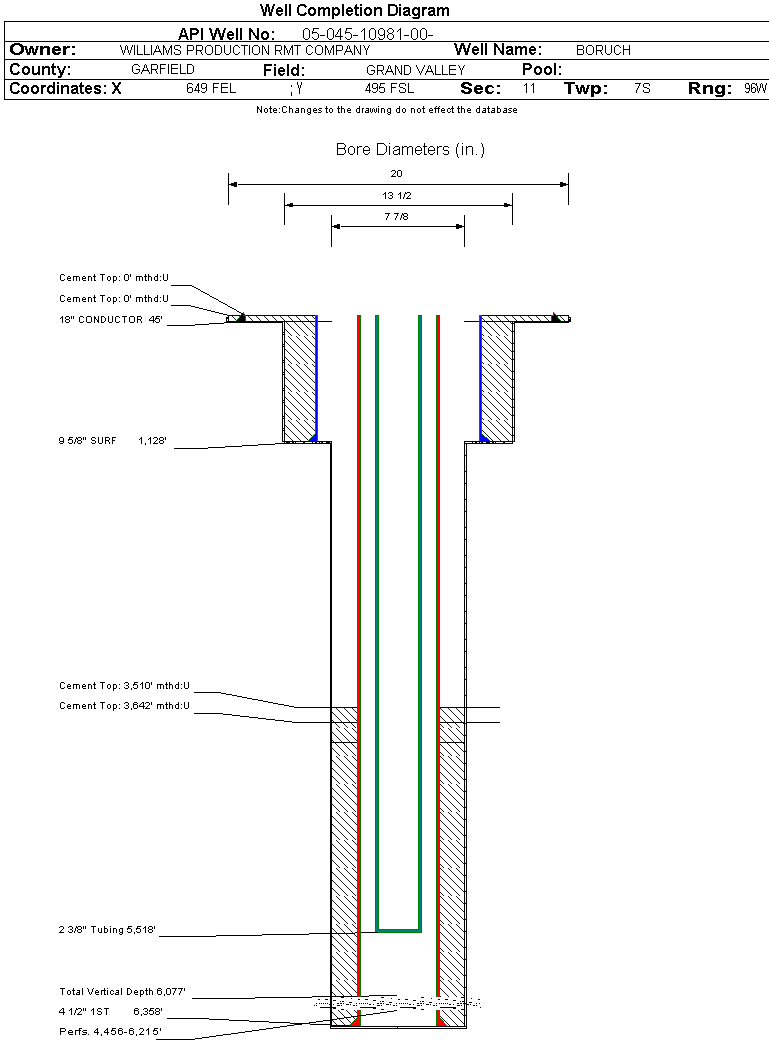

| Wellbore Completed | | Completion Date: | 12/5/2005 | | Spud Date: | 11/26/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6389 ft. | Measured PB depth: | 6320 ft. | | True Vertical TD: | 6077 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:11 Twp: 7S 96W | Footage: 115 FSL 2016 FEL | | Bottom Hole Location: | Sec:11 Twp: 7S 96W | Footage: 115 FSL 2016 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1128 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6358 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 815, Top: 3510 ft., Bottom: 6358 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1800, Top: 3642 ft., Bottom: 3816 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1399 ft. | | N | N | | FORT UNION | 1772 ft. | | N | N | | MESAVERDE | 3288 ft. | | N | N | | CAMEO | 5775 ft. | | N | N | | ROLLINS | 6261 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/23/2006 Interval Top: 4456 ft. Interval Bottom: 6215 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/16/2006 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/26/2006 | | Treatment Summary: | 1,000 GALS 10% ACETIC ACID IN CAMEO; NO ACID IN MV1-MV-5; 805,400# 30/50 SAND; 18,566 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5518 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/23/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 156800 | | CALC_MCF_GAS | 1568 | | CASING_PRESS | 1465 | | TUBING_PRESS | 1290 |
| | Perforation Data: | | Interval Top: | 4456 ft. | # Of Holes: | 115 | | Interval Bottom: | 6215 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 25 |
| Total Gas Produced (MCF) | 18110 |
| GOR | 724400 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.621 |
| Average MCFE per Day | 50.003 |
| Federal Financial Assurance | i | Y |
|
|
