Wellbore #00 Wellbore Classification: GW Status: PR - 12/20/2005 Measured TD: 7330 ft. Vertical TD: 7261 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/20/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051928 | Expiration Date: | 7/24/2006 | | Proposed Top PZ Location: | Sec:27 Twp: T6S R92W | Footage: 819 FNL 1975 FWL | | Bottom Hole Location: | Sec:27 Twp: T6S R92W | Footage: 819 FNL 1975 FWL | | Proposed Depth/Form: | 7339 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL |
| | |

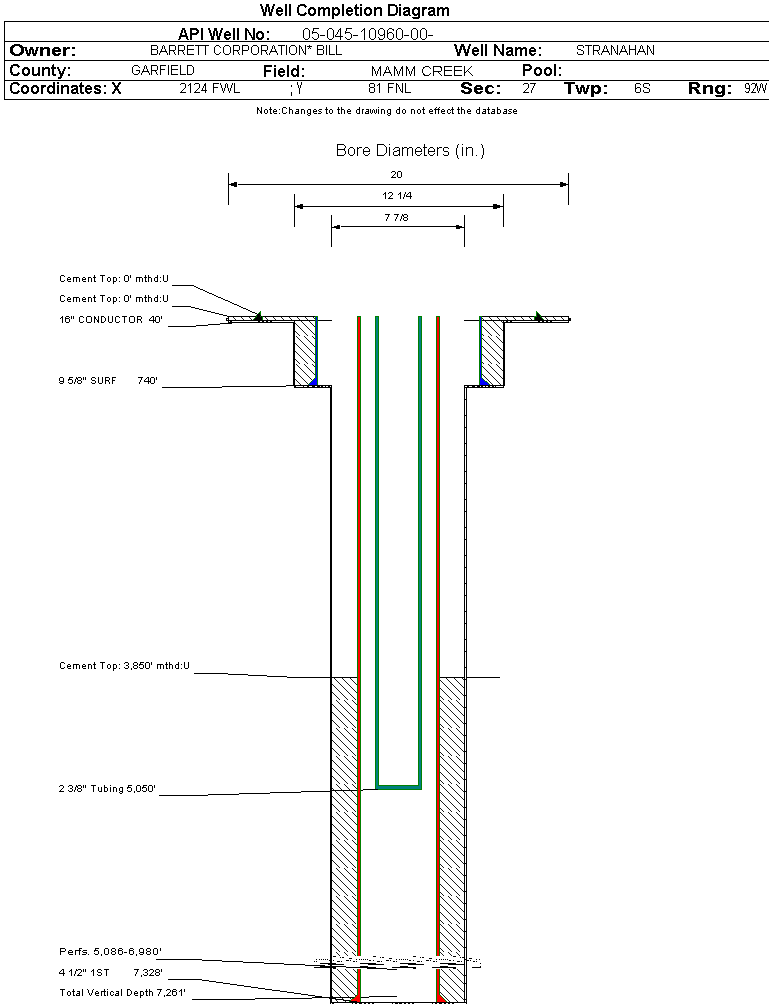

| Wellbore Completed | | Completion Date: | 9/14/2005 | | Spud Date: | 8/28/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7330 ft. | Measured PB depth: | 7328 ft. | | True Vertical TD: | 7261 ft. | True Vertical PB depth: | 7259 ft. | | Top PZ Location: | Sec:27 Twp: T6S R92W | Footage: 819 FNL 1975 FWL | | Bottom Hole Location: | Sec:27 Twp: T6S R92W | Footage: 819 FNL 1975 FWL | | Log Types: | HALLIBURTON SD/DSN/HRI/MICROLOG, PERCISION CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 740 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 740 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7328 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 810, Top: 3850 ft., Bottom: 7330 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3312 ft. | | N | N | | ROLLINS | 7004 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 12/20/2005 Interval Top: 5086 ft. Interval Bottom: 6980 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.500 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/14/2005 | | Treatment Summary: | 34,654 BBLS SLICK WATER, 1,497,482 LBS 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5050 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/20/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 80 | | BBLS_OIL | 0 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 80 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1755 | | CASING_PRESS | 1550 | | MCF_GAS | 1755 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 5086 ft. | # Of Holes: | 170 | | Interval Bottom: | 6980 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 105 |
| Total Gas Produced (MCF) | 14518 |
| GOR | 138266 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.144 |
| Average MCFE per Day | 41.442 |
| Federal Financial Assurance | i | |
|
|
