COGIS - WELL SCOUT CARD

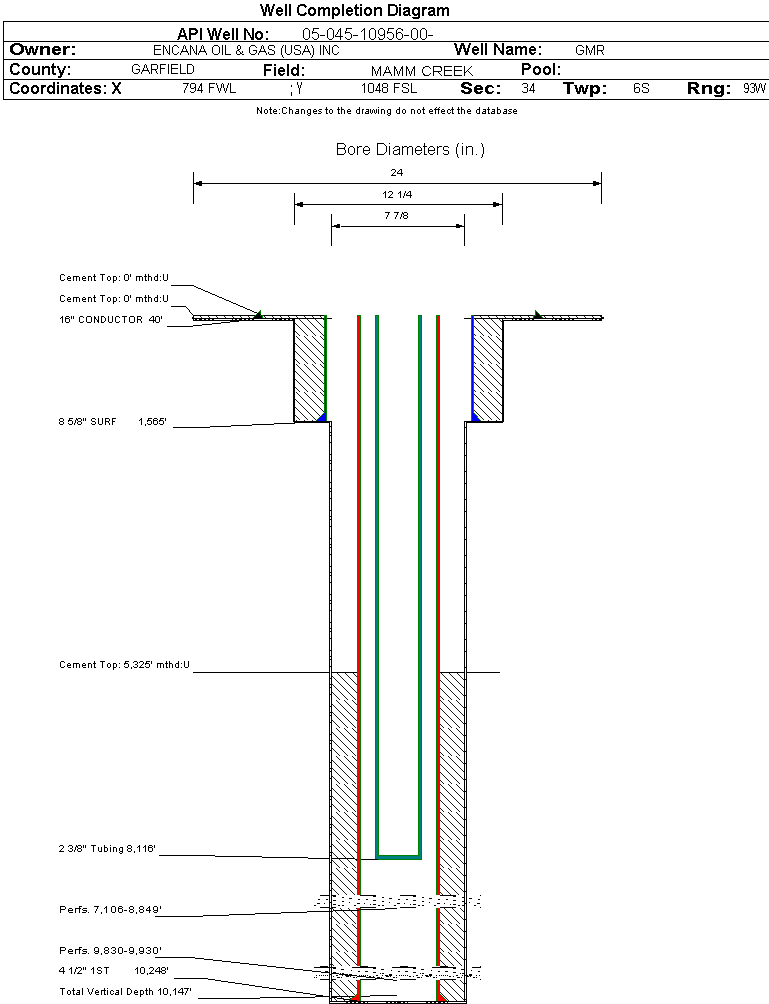

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10956		Well Classification: GW Status: PR - 10/28/2007
Well Name/No:GMR #34-13D (M34NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/28/2007
FacilityID:278849LocationID:334739
County:GARFIELD #045Location:SWSW 34 6S93W 6
Field:MAMM CREEK - #52500Elevation:6736 ft.
Basin:PICEANCE BASIN
Planned Location:1048FSL  794 FWLLat/Long: 39.478250 / -107.767787Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.478442 / -107.767889Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/28/2007             Measured TD: 10265 ft.    Vertical TD: 10147 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/28/2007
Wellbore PermitDIRECTIONAL
Permit #:20071324 Expiration Date:4/17/2008
Proposed Top PZ Location:Sec: Twp: Footage: 10 FSL  990 FWL
Bottom Hole Location:Sec:34 Twp: 6S 93W Footage: 10 FSL  990 FWL
Proposed Depth/Form:10265 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 56608X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/23/2007
Spud Date:9/27/2005Spud Date Is:ACTUAL
Measured TD:10265 ft.Measured PB depth:8783 ft.
True Vertical TD:10147 ft.True Vertical PB depth:
Top PZ Location:Sec:34 Twp: 6S 93WFootage: 22 FSL  992 FWL
Bottom Hole Location:Sec:34 Twp: 6S 93WFootage: 22 FSL  992 FWL
Log Types:PEX-AI/GR/SP; CBL/GR/TEMP
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1565 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 1060, Top: 0 ft., Bottom: 1565 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 10248 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 661, Top: 5325 ft., Bottom: 10248 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.5969 ft.NN
WILLIAMS FORK5970 ft.8966 ft.NN
ROLLINS8967 ft.9567 ft.NN
COZZETTE9568 ft.9810 ft.NN
CORCORAN9811 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 10/28/2007                Interval Top: 9830 ft.    Interval Bottom: 9930 ft.

 Completed Information for Formation CORCORAN
1st Production Date:10/18/2007Choke Size:20.000 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/15/2007
Treatment Summary:STAGE 1 TREATED W/ A TOTAL OF 3315 BBLS OF LIGHTNING 28/26, 308,746 LBS 20-40 SAND AND 55,500 LBS 20-40 TEMPERED LC SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8116 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/28/2007Test Method:FLOWING
Hours Tested:8Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 80
BTU_GAS 1170
CALC_BBLS_H2O 241
CALC_MCF_GAS 1004
CASING_PRESS 2350
MCF_GAS 335
TUBING_PRESS 1500
Perforation Data:
Interval Top:9830 ft.# Of Holes:76
Interval Bottom:9930 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 10/28/2007                Interval Top: 7106 ft.    Interval Bottom: 8849 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/18/2007Choke Size:20.000 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/15/2007
Treatment Summary:STAGES 26 TREATED W/ A TOTAL OF 33,732 BBLS OF SLICKWATER, 776,393#'S 20/40 WHITE SAND, 12,512#'S NON API 14/30 FLEX SAND & 3280#'S NON API SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8116 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/28/2007Test Method:FLOWING
Hours Tested:8Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 322
BBLS_OIL 0
BTU_GAS 1170
CALC_BBLS_H2O 965
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 4015
CASING_PRESS 2350
MCF_GAS 1338
TUBING_PRESS 1500
Perforation Data:
Interval Top:7106 ft.# Of Holes:176
Interval Bottom:8849 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)16142
GOR
GOR DeterminationMCFE
Average BOE per Day7.624
Average MCFE per Day44.219

 Federal Financial Assurance  i Y

 Tribal Well  i No
