Wellbore #00 Wellbore Classification: GW Status: PR - 4/17/2006 Measured TD: 5735 ft. Vertical TD: 5730 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/17/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20061887 | Expiration Date: | 6/22/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1090 FSL 1996 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1090 FSL 1996 FEL | | Proposed Depth/Form: | 5749 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: 40, Drill Unit: SW4SE4 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. |
| | |

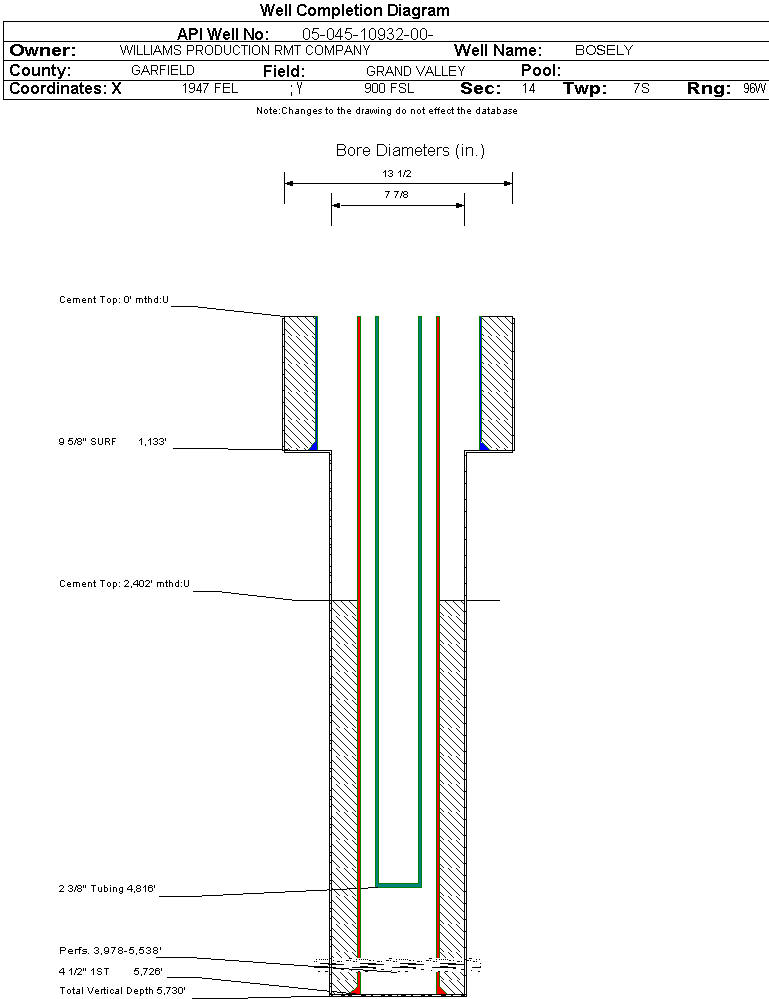

| Wellbore Completed | | Completion Date: | 6/21/2006 | | Spud Date: | 6/15/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 5735 ft. | Measured PB depth: | 5701 ft. | | True Vertical TD: | 5730 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:14 Twp: 7S 96W | Footage: 1110 FSL 1988 FEL | | Bottom Hole Location: | Sec:14 Twp: 7S 96W | Footage: 1110 FSL 1988 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1133 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5726 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 785, Top: 2402 ft., Bottom: 5726 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 946 ft. | | N | N | | FORT UNION | 1353 ft. | | N | N | | MESAVERDE | 2723 ft. | | N | N | | CAMEO | 5130 ft. | | N | N | | ROLLINS | 5593 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 9/10/2006 Interval Top: 3978 ft. Interval Bottom: 5538 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/28/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/27/2006 | | Treatment Summary: | 3078 GALS 7 1/2% HCL; 822500# 30/50 SAND; 18575 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4816 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/10/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1323 | | MCF_GAS | 1136 | | TUBING_PRESS | 1272 |
| | Perforation Data: | | Interval Top: | 3978 ft. | # Of Holes: | 111 | | Interval Bottom: | 5538 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 21 |
| Total Gas Produced (MCF) | 16233 |
| GOR | 773000 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.719 |
| Average MCFE per Day | 44.793 |
