COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10918		Well Classification: GW Status: PR - 1/1/2006
Well Name/No:OXY #TR31-5-697
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2006
FacilityID:278675LocationID:324319
County:GARFIELD #045Location:NWNE 5 6S97W 6
Field:GRAND VALLEY - #31290Elevation:8289 ft.
Basin:PICEANCE BASIN
Planned Location:644FNL  1941 FELLat/Long: 39.560896 / -108.241051Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.561036 / -108.241051Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2006             Measured TD: 8712 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2006
Wellbore Permit
Permit #:20051984 Expiration Date:7/5/2006
Proposed Depth/Form:8773 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/15/2005
Spud Date:7/26/2005Spud Date Is:ACTUAL
Measured TD:8712 ft.Measured PB depth:8675 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL; TRIPLE COMBO; MUD

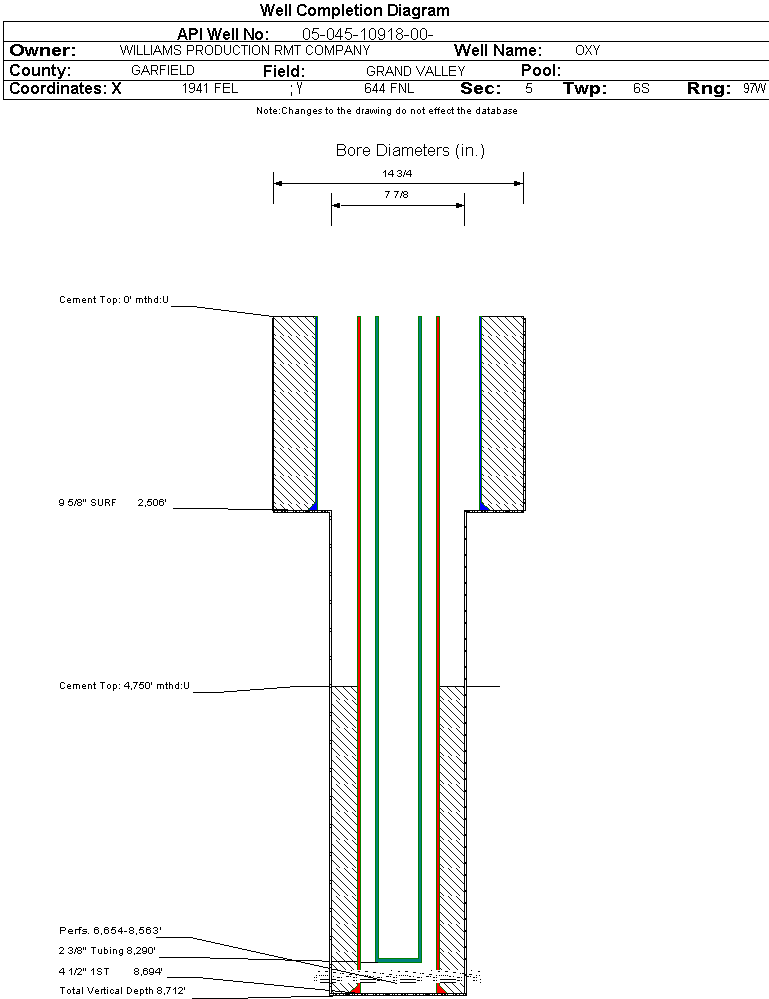

Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2506 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1108, Top: 0 ft., Bottom: 2506 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8694 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 860, Top: 4750 ft., Bottom: 8694 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION4435 ft.NN
MESAVERDE5855 ft.NN
CAMEO8224 ft.NN
ROLLINS8671 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/1/2006                  Interval Top: 6654 ft.    Interval Bottom: 8563 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/15/2005
Treatment Summary:6500 GALS 7 1/2% HCL; 818900# 20/40 SAND; 16268 BBL. SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:8290 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/1/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 893
CASING_PRESS 1178
TUBING_PRESS 1091
Perforation Data:
Interval Top:6654 ft.# Of Holes:136
Interval Bottom:8563 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)75
Total Gas Produced (MCF)30763
GOR410173
GOR DeterminationMCFE
Average BOE per Day14.722
Average MCFE per Day85.382

 Federal Financial Assurance  i

 Tribal Well  i No
