COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10909		Well Classification: GW Status: PR - 3/11/2010
Well Name/No:NORTH BANK #B1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/11/2010
FacilityID:278666LocationID:311621
County:GARFIELD #045Location:NENE 12 6S93W 6
Field:MAMM CREEK - #52500Elevation:5412 ft.
Basin:PICEANCE BASIN
Planned Location:1311FNL  597 FELLat/Long: 39.544602 / -107.717315Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.544601 / -107.717315Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/11/2010             Measured TD: 9031 ft.    Vertical TD: 9013 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/11/2010
Wellbore PermitDIRECTIONAL
Permit #:20051903 Expiration Date:7/5/2006
Proposed Top PZ Location:Sec:12 Twp: 6S 93W Footage: 2419 FNL  680 FEL
Bottom Hole Location:Sec:12 Twp: 6S 96W Footage: 1443 FNL  988 FEL
Proposed Depth/Form:9008 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: COZZ , Formation: COZZETTE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: CRCRN , Formation: CORCORAN , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/25/2006
Spud Date:5/9/2006Spud Date Is:ACTUAL
Measured TD:9031 ft.Measured PB depth:8981 ft.
True Vertical TD:9013 ft.True Vertical PB depth:8945 ft.
Top PZ Location:Sec:12 Twp: 6S 93WFootage: 1633 FNL  795 FEL
Bottom Hole Location:Sec:12 Twp: 6S 93WFootage: 1633 FNL  795 FEL
Log Types:SPECTRAL DENSITY- DUAL SPACED NEUTRON, HR-INDUCTION, CBL/GR/CCL/TEMP

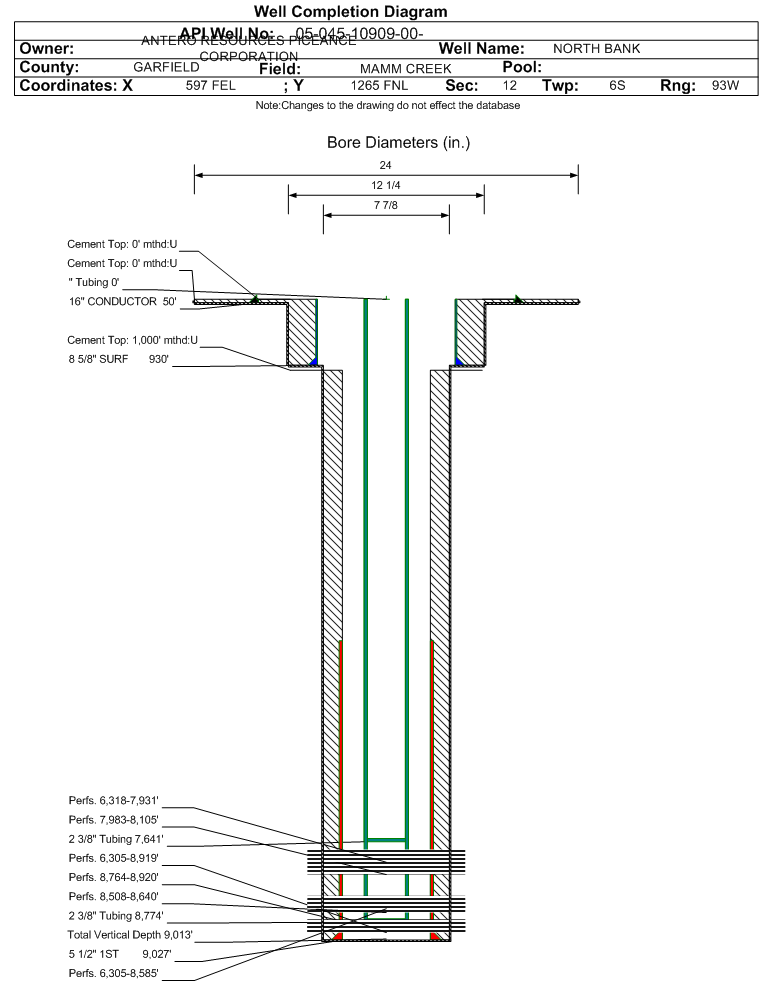

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 50 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 50 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 930 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 930 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 4811 ft., Depth: 9027 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1265, Top: 1000 ft., Bottom: 9027 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4289 ft.NN
ROLLINS7941 ft.NN
COZZETTE8492 ft.NN
CORCORAN8762 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  SI - 11/1/2025                 Interval Top: 8764 ft.    Interval Bottom: 8920 ft.

 Completed Information for Formation CORCORAN
1st Production Date:9/12/2006Choke Size:
Formation Name:CORCORANCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/25/2006
Treatment Summary:STAGE 4: COZZETTE-ON 8/25/06 FRAC WITH 5,425 BBLS 2% KCL, 208,900 LBS OF 30/70 SAND AND 67,800 LBS OF 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8764 ft.# Of Holes:304
Interval Bottom:8920 ft.Hole Size:0.42 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 3/11/2010                 Interval Top: 8508 ft.    Interval Bottom: 8640 ft.

 Completed Information for Formation COZZETTE
1st Production Date:9/12/2006Choke Size:
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/26/2006
Treatment Summary:ON 3/11/10 A PORTION OF THE COZETTE WAS T&A'D BUT THE PERFORATIONS ABOVE 8585' ARE STILL OPEN. STAGE 3: COZETTE: ON 8/26/06 FRAC WITH 6,527 BBLS OF 2% KCL, 258,400 LBS OF 30/70 SAND AND 84,600 LBS OF 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:8508 ft.# Of Holes:192
Interval Bottom:8640 ft.Hole Size:0.42 in.

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 3/11/2010                 Interval Top: 7983 ft.    Interval Bottom: 8105 ft.

 Completed Information for Formation ROLLINS
1st Production Date:9/12/2006Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/27/2006
Treatment Summary:STAGE 2: ROLLINS: FRAC W/2,850 BBLS OF 2% KCL & 102,400# 30/70 SAND & 36,000# OF 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RLNS.
Perforation Data:
Interval Top:7983 ft.# Of Holes:64
Interval Bottom:8105 ft.Hole Size:0.42 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/11/2010                 Interval Top: 6318 ft.    Interval Bottom: 7931 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/12/2006Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/30/2006
Treatment Summary:ON 8/25/06-8/30/06 FRAC'D WITH 25,045 BBLS 2% KCL, 946,900 LBS OF 30/70 SAND AND 307,300 LBS OF 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:6318 ft.# Of Holes:752
Interval Bottom:7931 ft.Hole Size:0.42 in.

Formation MVRD                     Formation Classification:  GW                     Status:  CM - 9/21/2006                 Interval Top: 6305 ft.    Interval Bottom: 8919 ft.

 Completed Information for Formation MESAVERDE
1st Production Date:9/12/2006Choke Size:0.313 in.
Formation Name:MESAVERDECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/30/2006
Treatment Summary:TOTALS: STAGES 1-4: WFCM, RLNS, COZZ, CRCRN: FRAC W/ 39,847 BBLS OF 2% KCL, 1,516,600# OF 30/70 SAND, 427,900# OF 30/50 SAND, & 67,800# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8774 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/21/2006Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 755
BBLS_OIL 0
CALC_BBLS_H2O 755
CALC_BBLS_OIL 0
CALC_MCF_GAS 829
CASING_PRESS 2170
MCF_GAS 829
TUBING_PRESS 1140
Perforation Data:
Interval Top:6305 ft.# Of Holes:1200
Interval Bottom:8919 ft.Hole Size:0.42 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 4/10/2010                 Interval Top: 6305 ft.    Interval Bottom: 8585 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:9/21/2006Choke Size:0.469 in.
Formation Name:WILLIAMS FORK-ILESCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/30/2006
Treatment Summary:SEE INDIVIDUAL FORMATIONS FOR BREAKDOWN. A PORTION OF THE ILES HAS BEEN T&A'D AND TUBING HAS BEEN RE-SET. **THIS WAS PREVIOUSLY IDENTIFIED AS MESAVERDE ON FORM 5A.
Tubing Size:2.375 in.Tubing Setting Depth:7641 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/10/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 0
BTU_GAS 1055
CALC_BBLS_H2O 20
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 105
CASING_PRESS 1246
MCF_GAS 105
TUBING_PRESS 250
Perforation Data:
Interval Top:6305 ft.# Of Holes:944
Interval Bottom:8585 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)4209
GOR300642
GOR DeterminationMCFE
Average BOE per Day2.029
Average MCFE per Day11.768

 Federal Financial Assurance  i

 Tribal Well  i No
