Wellbore #00 Wellbore Classification: GW Status: PR - 10/15/2007 Measured TD: 8950 ft. Vertical TD: 8930 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/15/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062917 | Expiration Date: | 8/10/2007 | | Proposed Top PZ Location: | Sec:12 Twp: 6S 93W | Footage: 2233 FSL 2284 FWL | | Bottom Hole Location: | Sec:12 Twp: 6S 93W | Footage: 2233 FSL 2284 FWL | | Proposed Depth/Form: | 9034 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: COZZ , Formation: COZZETTE , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: CRCRN , Formation: CORCORAN , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit: |
| | |

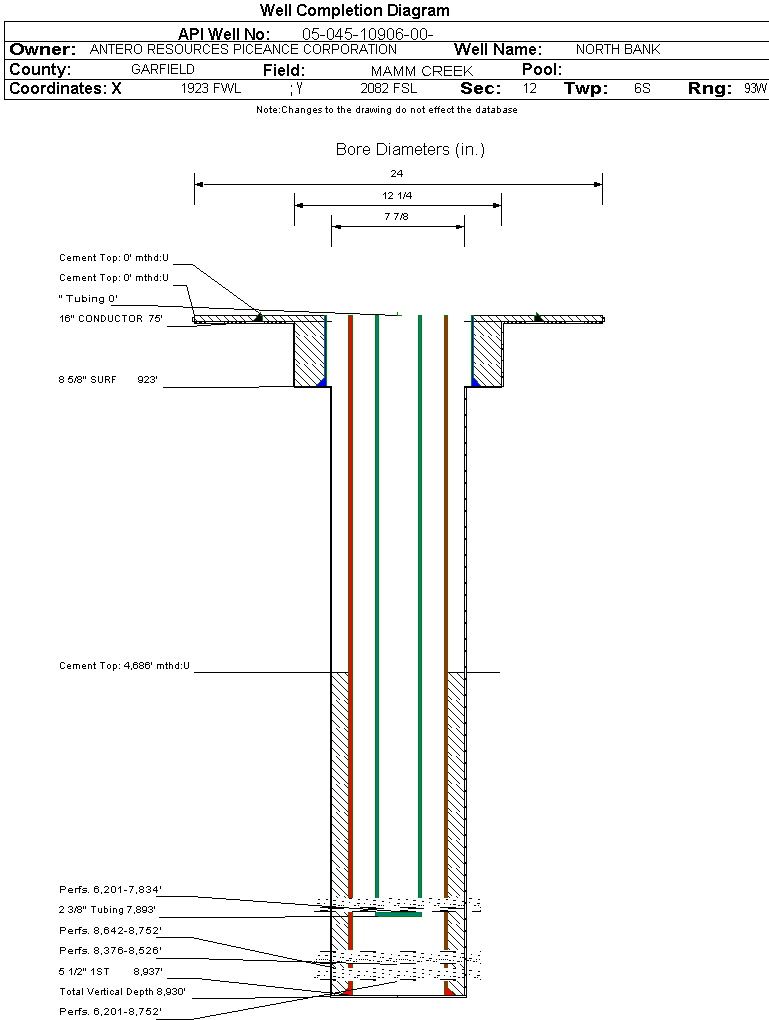

| Wellbore Completed | | Completion Date: | 5/20/2007 | | Spud Date: | 4/4/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8950 ft. | Measured PB depth: | 8897 ft. | | True Vertical TD: | 8930 ft. | True Vertical PB depth: | 8877 ft. | | Top PZ Location: | Sec:12 Twp: 6S 93W | Footage: 2233 FSL 2284 FWL | | Bottom Hole Location: | Sec:12 Twp: 6S 93W | Footage: 2233 FSL 2284 FWL | | Log Types: | GR/ARRAY IND, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 75 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 75 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 923 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 326, Top: 0 ft., Bottom: 930 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8937 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 685, Top: 4686 ft., Bottom: 8937 ft., Determination Method: CBL |
Formation CRCRN Formation Classification: GW Status: PR - 3/1/2011 Interval Top: 8642 ft. Interval Bottom: 8752 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 9/7/2007 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/29/2007 | | Treatment Summary: | COZZ/CORC FRAC'D W/ 14,559 BBLS OF 2% KCL, 420,500# 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8642 ft. | # Of Holes: | 232 | | Interval Bottom: | 8752 ft. | Hole Size: | 0.42 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 3/1/2011 Interval Top: 8376 ft. Interval Bottom: 8526 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 9/7/2007 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/29/2007 | | Treatment Summary: | COZZ/CORC FRAC'D W/ 14,559 BBLS OF 2% KCL, 420,500# 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 8376 ft. | # Of Holes: | 232 | | Interval Bottom: | 8526 ft. | Hole Size: | 0.42 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 3/1/2011 Interval Top: 6201 ft. Interval Bottom: 7834 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/7/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/10/2007 | | Treatment Summary: | WFCM - FRAC 38,515 BBLS 2% KCL, 956,762 # 20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 6201 ft. | # Of Holes: | 556 | | Interval Bottom: | 7834 ft. | Hole Size: | 0.421875 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 12/22/2008 Interval Top: 6201 ft. Interval Bottom: 8752 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 9/7/2007 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/29/2007 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7893 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/15/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 485 | | BTU_GAS | 1065 | | CALC_BBLS_H2O | 485 | | CALC_GOR | 0 | | CALC_MCF_GAS | 811 | | CASING_PRESS | 2152 | | MCF_GAS | 811 | | TUBING_PRESS | 1215 |
| | Perforation Data: | | Interval Top: | 6201 ft. | # Of Holes: | 788 | | Interval Bottom: | 8752 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 36 |
| Total Gas Produced (MCF) | 14824 |
| GOR | 411777 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.105 |
| Average MCFE per Day | 41.176 |
| Federal Financial Assurance | i | |
|
|
