COGIS - WELL SCOUT CARD

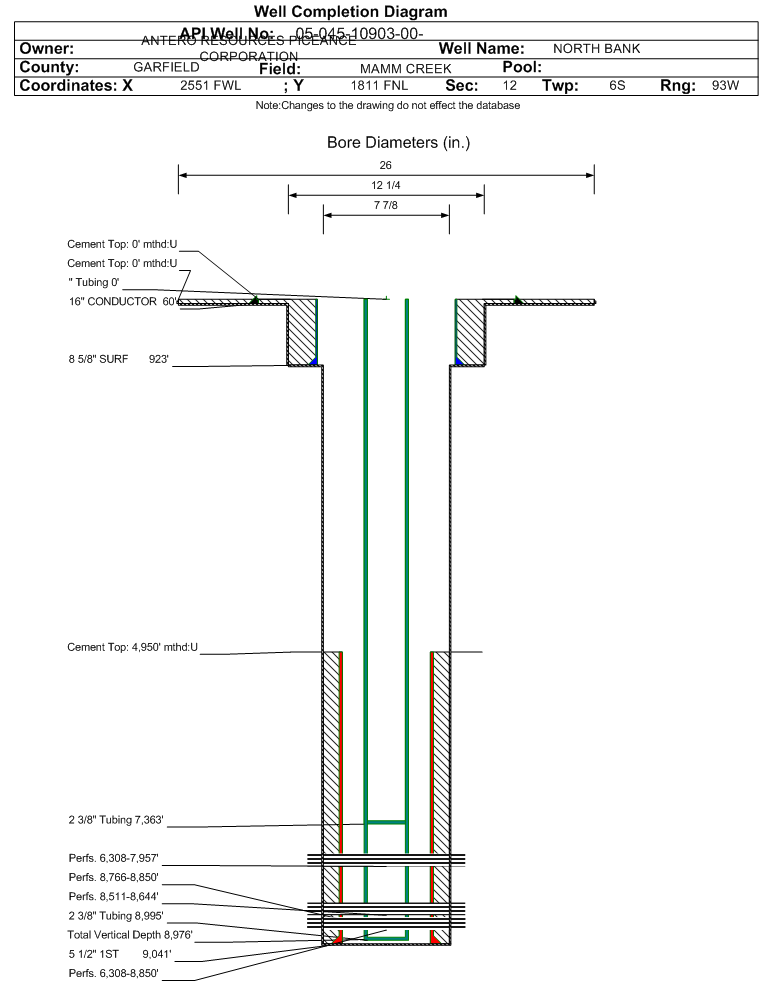

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10903		Well Classification: GW Status: PR - 5/3/2011
Well Name/No:NORTH BANK #A5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/3/2011
FacilityID:278647LocationID:336016
County:GARFIELD #045Location:SENW 12 6S93W 6
Field:MAMM CREEK - #52500Elevation:5392 ft.
Basin:PICEANCE BASIN
Planned Location:1823FNL  2545 FWLLat/Long: 39.543162 / -107.724903Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.543160 / -107.724900Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/3/2011             Measured TD: 9050 ft.    Vertical TD: 8976 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/3/2011
Wellbore PermitDIRECTIONAL
Permit #:20051906 Expiration Date:7/4/2006
Proposed Top PZ Location:Sec:12 Twp: 6S 93W Footage: 2268 FSL  1691 FEL
Bottom Hole Location:Sec:12 Twp: 6S 93W Footage: 2297 FNL  1980 FEL
Proposed Depth/Form:8990 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: COZZ , Formation: COZZETTE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: CRCRN , Formation: CORCORAN , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/21/2006
Spud Date:4/16/2006Spud Date Is:ACTUAL
Measured TD:9050 ft.Measured PB depth:8995 ft.
True Vertical TD:8976 ft.True Vertical PB depth:8921 ft.
Top PZ Location:Sec:12 Twp: 6S 93WFootage: 2318 FNL  2006 FEL
Bottom Hole Location:Sec:12 Twp: 6S 93WFootage: 2318 FNL  2006 FEL
Log Types:TRIPLE COMBO-IND/NEUT/DENS, CBL, TEMPERATURE LOG
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 923 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 395, Top: 0 ft., Bottom: 923 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 4950 ft., Depth: 9041 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 772, Top: 4950 ft., Bottom: 9041 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4294 ft.NN
WILLIAMS FORK4294 ft.NN
CAMEO6960 ft.NN
ROLLINS7966 ft.NN
COZZETTE8497 ft.NN
CORCORAN8767 ft.NN

Formation CRCRN                   Formation Classification:                     Status:  SI - 11/1/2025                 Interval Top: 8766 ft.    Interval Bottom: 8850 ft.

 Completed Information for Formation CORCORAN
1st Production Date:9/24/2006Choke Size:
Formation Name:CORCORANCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/6/2010
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8766 ft.# Of Holes:264
Interval Bottom:8850 ft.Hole Size:0.42 in.

Formation COZZ                     Formation Classification:  OW                     Status:  PR - 5/3/2011                  Interval Top: 8511 ft.    Interval Bottom: 8644 ft.

 Completed Information for Formation COZZETTE
1st Production Date:9/24/2006Choke Size:0.469 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/6/2010
Treatment Summary:A PORTION OF THE COZZETTE IS T&A'D FROM 8590'-8644'.
Tubing Size:2.375 in.Tubing Setting Depth:7363 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/3/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1027
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 61
CASING_PRESS 620
GRAVITY_OIL 0
MCF_GAS 61
TUBING_PRESS 543
Perforation Data:
Interval Top:8511 ft.# Of Holes:212
Interval Bottom:8644 ft.Hole Size:0.42 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/3/2011                  Interval Top: 6308 ft.    Interval Bottom: 7957 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/24/2006Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/22/2006
Treatment Summary:STAGE 1: WFCM-FARC W/ 27,033 BBLS OF 2% KCL, 1,180,600# OF 30/70 SAND & 260,100# OF 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:6308 ft.# Of Holes:1232
Interval Bottom:7957 ft.Hole Size:0.42 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 10/6/2006                 Interval Top: 6308 ft.    Interval Bottom: 8850 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORK-ILESCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/21/2006
Treatment Summary:TOTALS: STAGES 1-3, WFCM, COZZ, CRCRN: FRAC W/36,121 GALS 2% KCL, 1,545,200# 30/70 SAND AND 374,000# 30/50 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8995 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/6/2006Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 986
CASING_PRESS 2900
MCF_GAS 1411
TUBING_PRESS 1805
Perforation Data:
Interval Top:6308 ft.# Of Holes:1708
Interval Bottom:8850 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)22
Total Gas Produced (MCF)14841
GOR674590
GOR DeterminationMCFE
Average BOE per Day7.072
Average MCFE per Day40.985

 Federal Financial Assurance  i

 Tribal Well  i No
