COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10902		Well Classification: GW Status: PR - 7/1/2021
Well Name/No:NORTH BANK #C8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2021
FacilityID:278646LocationID:336013
County:GARFIELD #045Location:NESW 12 6S93W 6
Field:MAMM CREEK - #52500Elevation:5352 ft.
Basin:PICEANCE BASIN
Planned Location:2131FSL  1915 FWLLat/Long: 39.539490 / -107.727105Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.539492 / -107.727105Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2021             Measured TD: 9095 ft.    Vertical TD: 8880 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2021
Wellbore PermitDIRECTIONAL
Permit #:20073158 Expiration Date:7/22/2008
Proposed Top PZ Location:Sec:12 Twp: 6S 93W Footage: 1268 FSL  701 FWL
Bottom Hole Location:Sec:12 Twp: 6S 93W Footage: 1268 FSL  701 FWL
Proposed Depth/Form:8917 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: COZZ , Formation: COZZETTE , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: CRCRN , Formation: CORCORAN , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/4/2007
Spud Date:11/20/2007Spud Date Is:ACTUAL
Measured TD:9095 ft.Measured PB depth:9036 ft.
True Vertical TD:8880 ft.True Vertical PB depth:8822 ft.
Top PZ Location:Sec:12 Twp: 6S 93WFootage: 1268 FSL  701 FWL
Bottom Hole Location:Sec:12 Twp: 6S 93WFootage: 1268 FSL  701 FWL
Log Types:TRIPLE COMBO (RMTE/CCL/GR) & CBL

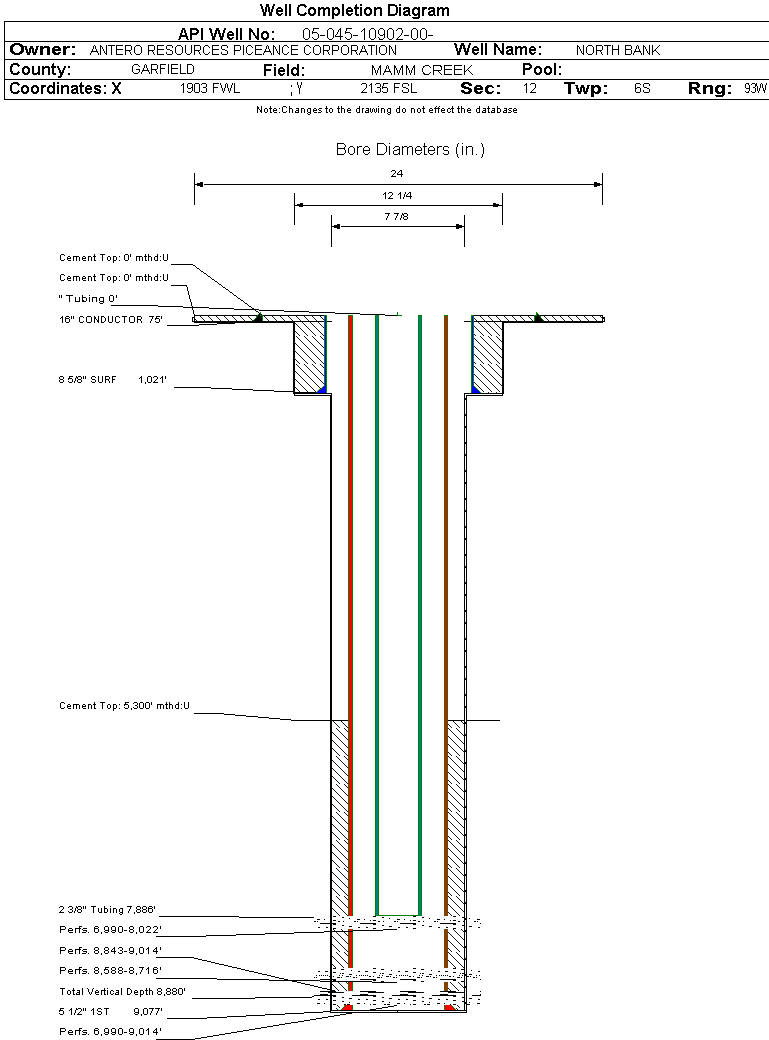

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 75 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 205, Top: 0 ft., Bottom: 75 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1021 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 413, Top: 0 ft., Bottom: 1031 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 9077 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 581, Top: 5300 ft., Bottom: 9091 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4339 ft.NN
CAMEO6960 ft.NN
ROLLINS8047 ft.NN
COZZETTE8566 ft.NN
CORCORAN8833 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 7/1/2021                  Interval Top: 8843 ft.    Interval Bottom: 9014 ft.

 Completed Information for Formation CORCORAN
1st Production Date:1/31/2008Choke Size:
Formation Name:CORCORANCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/21/2008
Treatment Summary:CORCORAN-COZZETTE- FRAC W/12,645 BBLS OF 2% KCL, 182,700 LBS 30/50 & 121,400 LBS 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8843 ft.# Of Holes:51
Interval Bottom:9014 ft.Hole Size:0.42 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 7/1/2021                  Interval Top: 8588 ft.    Interval Bottom: 8716 ft.

 Completed Information for Formation COZZETTE
1st Production Date:1/31/2008Choke Size:
Formation Name:COZZETTECommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/21/2008
Treatment Summary:CORCORAN-COZZETTE FRAC W/12,645 BBLS OF 2% KCL, 182,700 LBS 30/50 & 121,400 LBS 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:8588 ft.# Of Holes:51
Interval Bottom:8716 ft.Hole Size:0.42 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/1/2021                  Interval Top: 6990 ft.    Interval Bottom: 8022 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/31/2008Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/22/2008
Treatment Summary:FRAC W/23,863 BBL 2% KCL, 317,300 LBS 30/50 SAND, & 218,800 LBS 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:6990 ft.# Of Holes:121
Interval Bottom:8022 ft.Hole Size:0.42 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 2/1/2008                  Interval Top: 6990 ft.    Interval Bottom: 9014 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:1/31/2008Choke Size:0.250 in.
Formation Name:WILLIAMS FORK-ILESCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/21/2008
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7886 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/1/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 770
BTU_GAS 1030
CALC_BBLS_H2O 770
CALC_MCF_GAS 2771
CASING_PRESS 3600
MCF_GAS 2771
TUBING_PRESS 2450
Perforation Data:
Interval Top:6990 ft.# Of Holes:172
Interval Bottom:9014 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)72
Total Gas Produced (MCF)30203
GOR419486
GOR DeterminationMCFE
Average BOE per Day14.469
Average MCFE per Day83.941

 Federal Financial Assurance  i

 Tribal Well  i No
