Wellbore #00 Wellbore Classification: GW Status: PR - 5/15/2006 Measured TD: 8084 ft. Vertical TD: 7828 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/15/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051904 | Expiration Date: | 7/4/2006 | | Proposed Top PZ Location: | Sec:12 Twp: 6S 93W | Footage: 1996 FSL 959 FEL | | Bottom Hole Location: | Sec:12 Twp: 6S 93W | Footage: 1996 FSL 959 FEL | | Proposed Depth/Form: | 8929 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: COZZ , Formation: COZZETTE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: CRCRN , Formation: CORCORAN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

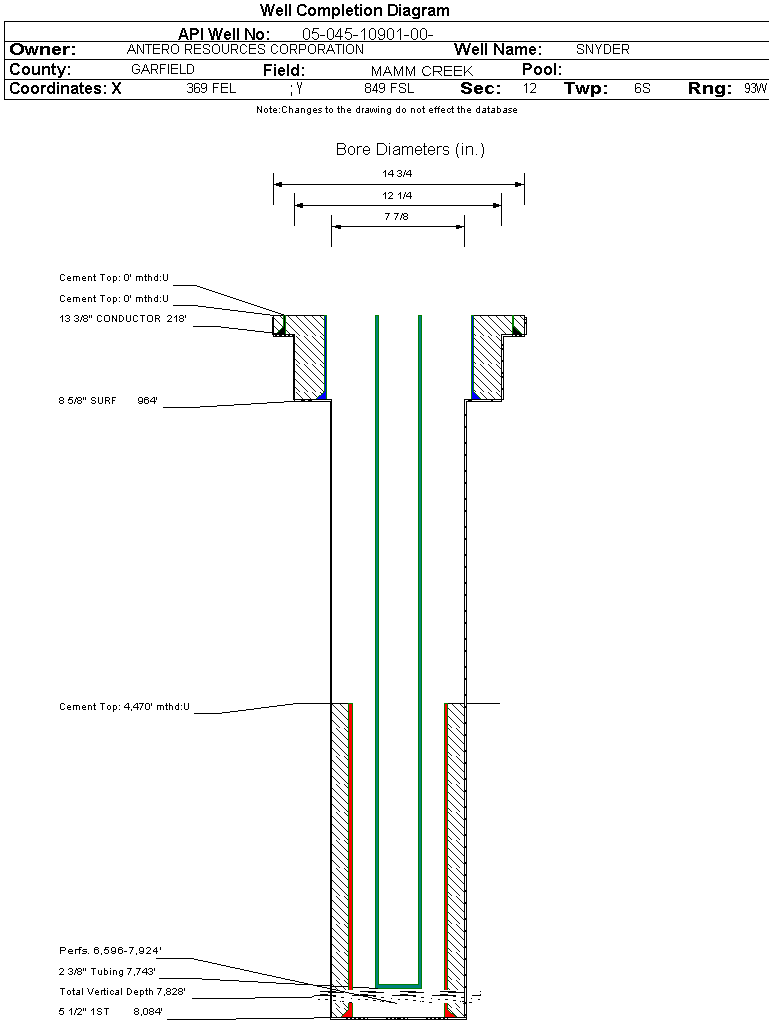

| Wellbore Completed | | Completion Date: | 1/27/2006 | | Spud Date: | 12/30/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8084 ft. | Measured PB depth: | 8030 ft. | | True Vertical TD: | 7828 ft. | True Vertical PB depth: | 7775 ft. | | Top PZ Location: | Sec:12 Twp: 6S 93W | Footage: 1996 FSL 959 FEL | | Bottom Hole Location: | Sec:12 Twp: 6S 93W | Footage: 1996 FSL 959 FEL | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 14.75 in., Size: 13.375 in., Top: 0 ft., Depth: 218 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 75, Top: 0 ft., Bottom: 218 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 964 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 964 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 4470 ft., Depth: 8084 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 760, Top: 4470 ft., Bottom: 8084 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4325 ft. | 7989 ft. | N | N | | CAMEO | 7019 ft. | 7989 ft. | N | N | | ROLLINS | 7989 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/15/2006 Interval Top: 6596 ft. Interval Bottom: 7924 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.469 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/27/2006 | | Treatment Summary: | FRAC WITH 4 STAGES WITH A TOTAL OF 3,585 BBLS OF SLICKWATER, 142,000 LBS OF 30/50 SAND AND 47,900 LBS OF 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7743 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/19/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 817 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 817 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 724 | | CASING_PRESS | 1100 | | MCF_GAS | 724 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 6596 ft. | # Of Holes: | 1060 | | Interval Bottom: | 7924 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 48 |
| Total Gas Produced (MCF) | 6527 |
| GOR | 135979 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.217 |
| Average MCFE per Day | 18.653 |
