Wellbore #00 Wellbore Classification: GW Status: PR - 2/2/2012 Measured TD: 7424 ft. Vertical TD: 7382 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/2/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051154 | Expiration Date: | 6/23/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 860 FNL 660 FWL | | Bottom Hole Location: | Sec:30 Twp: | Footage: 860 FNL 660 FWL | | Proposed Depth/Form: | 7410 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 139-46 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-44 , Unit Acreage: 640, Drill Unit: ALL |
| | |

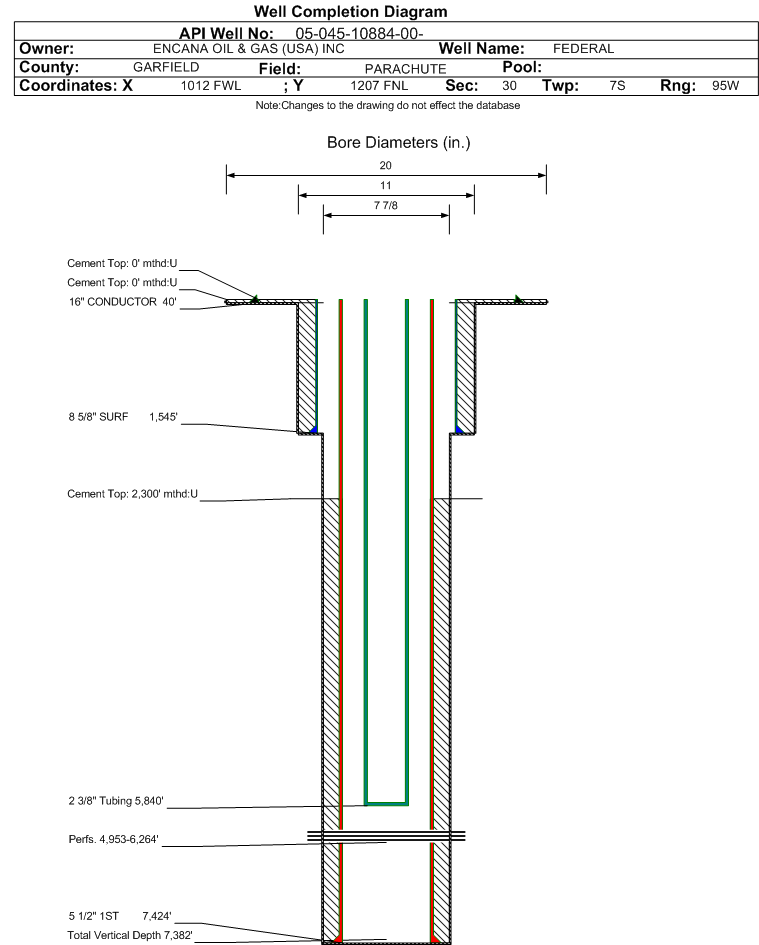

| Wellbore Completed | | Completion Date: | 11/5/2005 | | Spud Date: | 8/31/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7424 ft. | Measured PB depth: | 7424 ft. | | True Vertical TD: | 7382 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 860 FNL 660 FWL | | Bottom Hole Location: | Sec:30 Twp: | Footage: 860 FNL 660 FWL | | Log Types: | PEX, CBL, RST | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CBL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 1545 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 610, Top: 0 ft., Bottom: 1545 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7424 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1270, Top: 2300 ft., Bottom: 7424 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | | 4149 ft. | N | N | | WILLIAMS FORK | 4150 ft. | 6517 ft. | N | N | | ROLLINS | 6518 ft. | 6797 ft. | N | N | | COZZETTE | 6798 ft. | 7037 ft. | N | N | | CORCORAN | 7038 ft. | 7424 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 2/2/2012 Interval Top: 4953 ft. Interval Bottom: 6264 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 12/30/2005 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/22/2009 | | Treatment Summary: | WELL WAS TEMPORARY ABANDONED TO DRILL ADDITIONAL WELLS.
CBP DRILLED OUT AT 4870' | | Formation Treatment | | Treatment Date: | 11/5/2005 | | Treatment Summary: | ALL PERF STAGES HAVE BEEN TEMPORARILY ABANDONED FOR ADDITIONAL DRILLING ON THE PAD. A CBP WAS SET @ 4870' & CASING TESTED TO 1000# - TESTED OK. DUMPED 2 SXS CEMENT ON TOP OF PLUG. THE WELLHEAD WILL BE REMOVED ON 6/15/2009 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5840 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 990 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 990 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 113600 | | CALC_MCF_GAS | 1136 | | CASING_PRESS | 1200 | | MCF_GAS | 1136 | | TUBING_PRESS | 500 |
| | Perforation Data: | | Interval Top: | 4953 ft. | # Of Holes: | 94 | | Interval Bottom: | 6264 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3 |
| Total Gas Produced (MCF) | 11040 |
| GOR | 3680000 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.222 |
| Average MCFE per Day | 30.294 |
| Federal Financial Assurance | i | Y |
|
|
