Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2020 Measured TD: 6860 ft. Vertical TD: 6743 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2020 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091070 | Expiration Date: | 6/10/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 250 FNL 660 FWL | | Bottom Hole Location: | Sec:30 Twp: 7S 95W | Footage: 250 FNL 660 FWL | | Proposed Depth/Form: | 6946 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 139-46 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-44 , Unit Acreage: 640, Drill Unit: ALL |
| | |

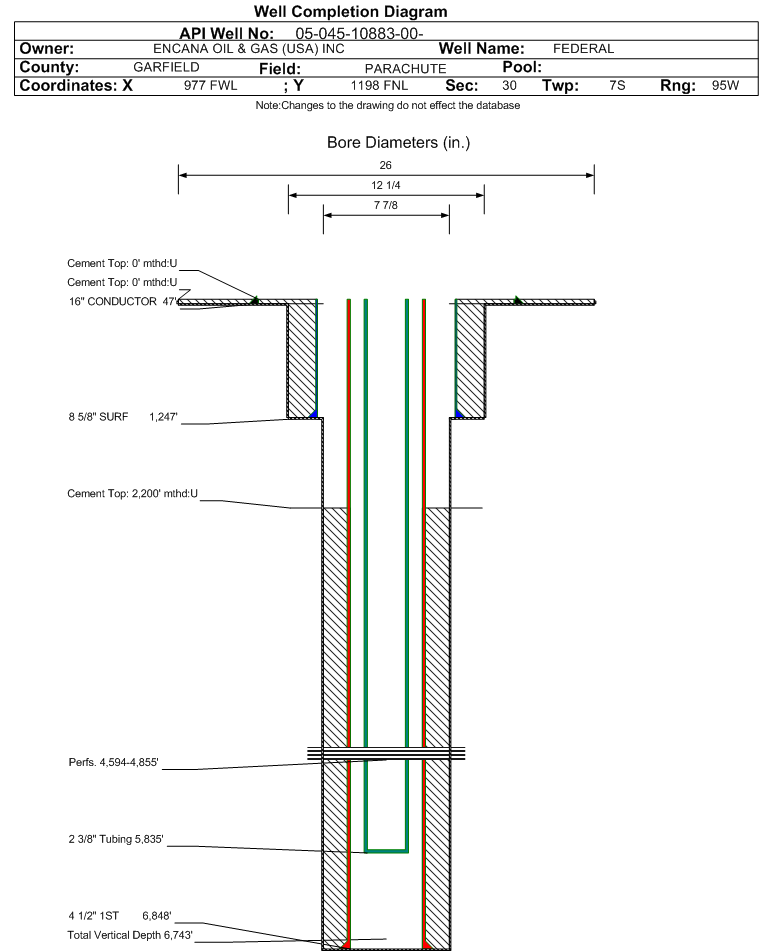

| Wellbore Completed | | Completion Date: | 8/16/2009 | | Spud Date: | 8/9/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 6860 ft. | Measured PB depth: | 6790 ft. | | True Vertical TD: | 6743 ft. | True Vertical PB depth: | 6673 ft. | | Top PZ Location: | Sec:30 Twp: 7S 95W | Footage: 253 FNL 650 FWL | | Bottom Hole Location: | Sec:30 Twp: 7S 95W | Footage: 253 FNL 650 FWL | | Log Types: | RST, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 47 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 47 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1247 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 522, Top: 0 ft., Bottom: 1265 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6848 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 729, Top: 2200 ft., Bottom: 6860 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4262 ft. | N | N | | WILLIAMS FORK | 4263 ft. | 6609 ft. | N | N | | ROLLINS | 6610 ft. | 6860 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 8/1/2020 Interval Top: 4594 ft. Interval Bottom: 4855 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 12/6/2009 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 12/4/2011 | | Treatment Summary: | STAGE 7 TREATED WITH A TOTAL OF 12811 BBLS SLICKWATER | | Formation Treatment | | Treatment Date: | 9/30/2009 | | Treatment Summary: | STAGES 01-06 TREATED WITH A TOTAL OF: 45540.4 BBLS OF SLICKWATER. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5835 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/21/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 3 | | CALC_MCF_GAS | 292 | | CASING_PRESS | 640 | | MCF_GAS | 292 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 4594 ft. | # Of Holes: | 27 | | Interval Bottom: | 4855 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1 |
| Total Gas Produced (MCF) | 20405 |
| GOR | 20405000 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.647 |
| Average MCFE per Day | 55.971 |
| Federal Financial Assurance | i | Y |
|
|
