Wellbore #00 Wellbore Classification: GW Status: PR - 3/7/2006 Measured TD: 6976 ft. Vertical TD: 6656 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/7/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20061092 | Expiration Date: | 5/11/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 182 FNL 2061 FWL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 182 FNL 2061 FWL | | Proposed Depth/Form: | 7013 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7013 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: , Bottom: |
| | |

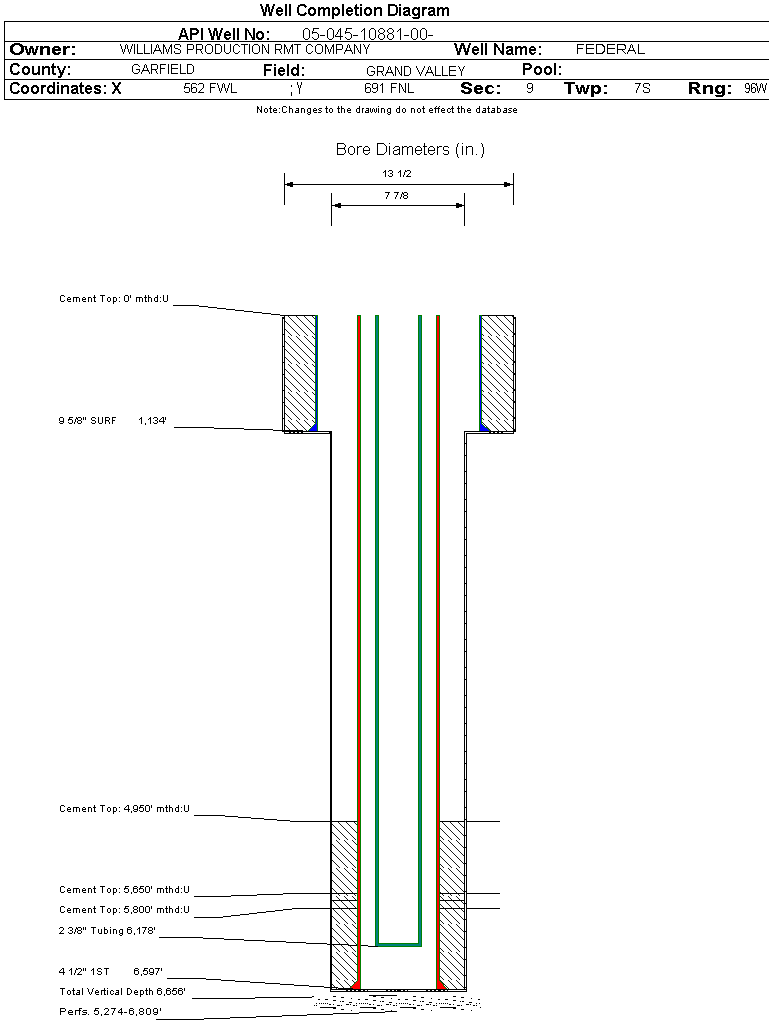

| Wellbore Completed | | Completion Date: | 6/24/2006 | | Spud Date: | 6/15/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6976 ft. | Measured PB depth: | 6933 ft. | | True Vertical TD: | 6656 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:9 Twp: 7S 96W | Footage: 166 FNL 2065 FWL | | Bottom Hole Location: | Sec:9 Twp: 7S 96W | Footage: 166 FNL 2065 FWL | | Log Types: | CBL;RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1134 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1134 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6597 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 885, Top: 4950 ft., Bottom: 6597 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 5800 ft., Bottom: 5800 ft., Determination Method: CALC | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 5650 ft., Bottom: 5724 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2188 ft. | | N | N | | FORT UNION | 2532 ft. | | N | N | | MESAVERDE | 3870 ft. | | N | N | | CAMEO | 6407 ft. | | N | N | | ROLLINS | 6844 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 9/24/2006 Interval Top: 5274 ft. Interval Bottom: 6809 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/5/2006 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/26/2006 | | Treatment Summary: | 2565 GALS 7 1/2% HCL; 652700# 30/50 SAND; 14219 BBLLS SLICKWATER; 849 2% KCL, 427 TONS CO2. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6178 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/24/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1459 | | MCF_GAS | 930 | | TUBING_PRESS | 1389 |
| | Perforation Data: | | Interval Top: | 5274 ft. | # Of Holes: | 94 | | Interval Bottom: | 6809 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 27 |
| Total Gas Produced (MCF) | 13562 |
| GOR | 502296 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.477 |
| Average MCFE per Day | 37.585 |
| Federal Financial Assurance | i | Y |
|
|
