Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2010 Measured TD: 7040 ft. Vertical TD: 6925 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051835 | Expiration Date: | 6/20/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 714 FNL 2072 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 714 FNL 2072 FWL | | Proposed Depth/Form: | 7067 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: W2 |
| | |

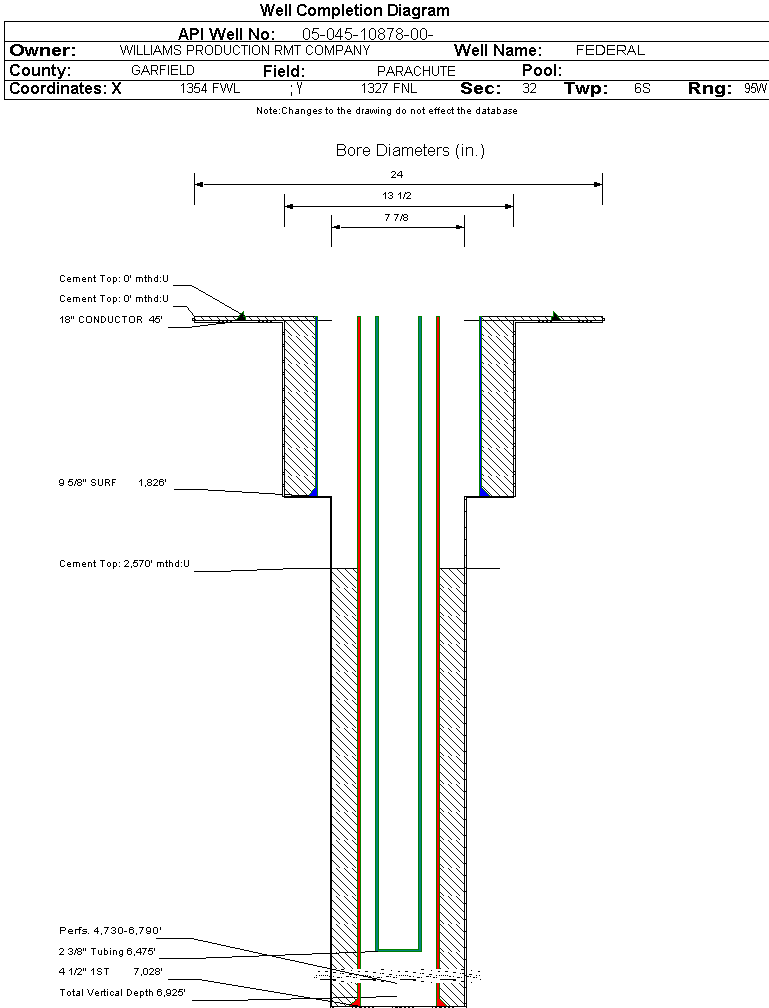

| Wellbore Completed | | Completion Date: | 11/8/2005 | | Spud Date: | 10/27/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7040 ft. | Measured PB depth: | 6913 ft. | | True Vertical TD: | 6925 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:32 Twp: 6S 95W | Footage: 686 FNL 2083 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 95W | Footage: 686 FNL 2083 FWL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1826 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 490, Top: 0 ft., Bottom: 1826 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7028 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 965, Top: 2570 ft., Bottom: 7028 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1606 ft. | | N | N | | FORT UNION | 1847 ft. | | N | N | | MESAVERDE | 3613 ft. | | N | N | | CAMEO | 6288 ft. | | N | N | | ROLLINS | 6869 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 12/1/2010 Interval Top: 4730 ft. Interval Bottom: 6790 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/8/2005 | | Treatment Summary: | 11/23/05 1500 7 1/2% HCL; 3000 GALS 10% ACETIC ACID; 966100# 30/50 SAND; 21976 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6475 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/10/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1432 | | CASING_PRESS | 1780 | | MCF_GAS | 1432 | | TUBING_PRESS | 1623 |
| | Perforation Data: | | Interval Top: | 4730 ft. | # Of Holes: | 143 | | Interval Bottom: | 6790 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 26 |
| Total Gas Produced (MCF) | 16599 |
| GOR | 638423 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.916 |
| Average MCFE per Day | 45.901 |
| Federal Financial Assurance | i | Y |
|
|
