Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-10857		Well Classification: GW	Status: SI - 12/1/2025
Well Name/No:	FEDERAL TRW #13-12-598 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	C058687
Facility Status:	SI	Status Date	12/1/2025
FacilityID:	278194	LocationID:	324316
County:	GARFIELD #045	Location:	NWSW 12 5S98W 6
Field:	SKINNER RIDGE - #77548	Elevation:	8288 ft.
Basin:	PICEANCE BASIN
Planned Location:	1918FSL 712 FWL	Lat/Long: 39.626115 / -108.345955	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.626119 / -108.345799	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: SI - 12/1/2025 Measured TD: 8155 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW SI - 12/1/2025
Wellbore Permit
Permit #:	20061068	Expiration Date:	5/10/2007
Proposed Depth/Form:	8155 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-7 , Unit Acreage: , Drill Unit:
Casing:	String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 2578 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:	Sacks: 1742, Top: 0 ft., Bottom: 2578 ft.
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8143 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:	Sacks: 780, Top: , Bottom: 8143 ft.

Wellbore Completed
Completion Date:	9/29/2005
Spud Date:	9/15/2005	Spud Date Is:	ACTUAL
Measured TD:	8155 ft.	Measured PB depth:	8058 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:	CBL; RESERVOIR MONITOR TOOL ELITE; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, CCL-TEMP, MUDLOG

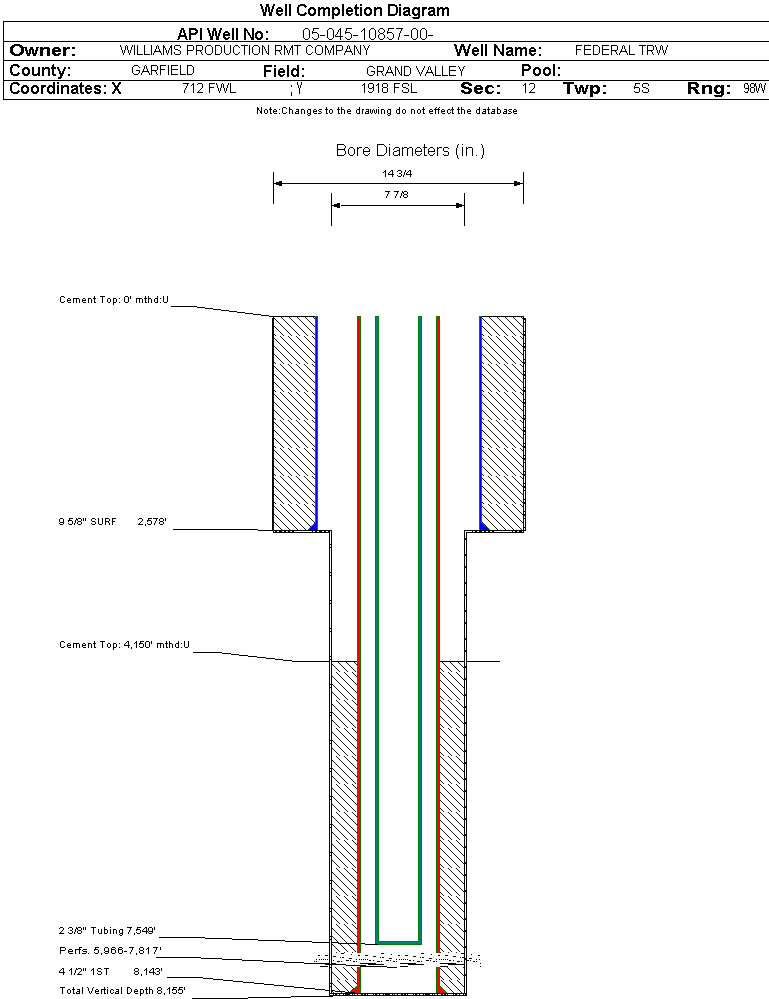

Casing:	String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2578 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1742, Top: 0 ft., Bottom: 2578 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8143 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 780, Top: 4150 ft., Bottom: 8143 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	3787 ft.		N	N
FORT UNION	3937 ft.		N	N
MESAVERDE	5174 ft.		N	N
CAMEO	7402 ft.		N	N
ROLLINS	7872 ft.		N	N

Formation WFCM Formation Classification: GW Status: SI - 12/1/2025 Interval Top: 5966 ft. Interval Bottom: 7817 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	11/15/2005	Choke Size:	0.313 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	11/3/2005
Treatment Summary:	6,500 GALS 7.5% HCL; 731,700# 20/40 SAND; 15,865 BBL SLICK WATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7549 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	1/28/2006	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
CALC_MCF_GAS	497
TUBING_PRESS	502

Perforation Data:
Interval Top:	5966 ft.	# Of Holes:	158
Interval Bottom:	7817 ft.	Hole Size:	0.42 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	54
Total Gas Produced (MCF)	11176
GOR	206962
GOR Determination	MCFE
Average BOE per Day	5.455
Average MCFE per Day	31.638

Federal Financial Assurance

Tribal Well
