Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2025 Measured TD: 8530 ft. Vertical TD: 8478 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050591 | Expiration Date: | 6/12/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2419 FNL 857 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 2419 FNL 857 FEL | | Proposed Depth/Form: | 8431 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

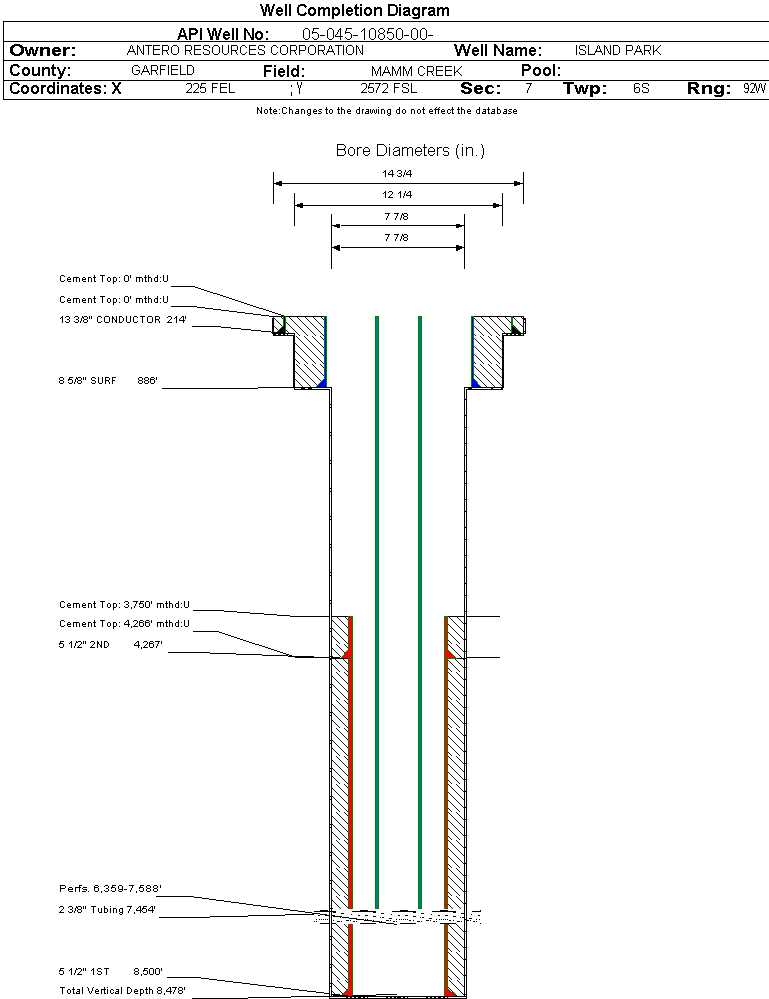

| Wellbore Completed | | Completion Date: | 9/13/2005 | | Spud Date: | 8/11/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8530 ft. | Measured PB depth: | 8452 ft. | | True Vertical TD: | 8478 ft. | True Vertical PB depth: | 8400 ft. | | Top PZ Location: | Sec: Twp: | Footage: 2419 FNL 857 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 2419 FNL 857 FEL | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 14.75 in., Size: 13.375 in., Top: 0 ft., Depth: 214 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 214 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 886 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 886 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 4266 ft., Depth: 8500 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 655, Top: 4266 ft., Bottom: 8500 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: 3750 ft., Depth: 4267 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 80, Top: 3750 ft., Bottom: 4267 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4187 ft. | 7791 ft. | N | N | | CAMEO | 6883 ft. | 7791 ft. | N | N | | ROLLINS | 7791 ft. | 8344 ft. | N | N | | COZZETTE | 8344 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/1/2025 Interval Top: 6359 ft. Interval Bottom: 7588 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.469 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/13/2005 | | Treatment Summary: | 12/22/05 STAGE 1: LOWER CAMEO, STAGE 2: UPPER CAMEO, STAGES 3,4,5: WILLIAMS FORK. FRAC W/ 17,750 BBLS SLICKWATER, 360,700# OF 40/70 SAND, & 590,511# 30/70 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7454 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/31/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 274 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 274 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1511 | | CASING_PRESS | 950 | | MCF_GAS | 1511 | | TUBING_PRESS | 500 |
| | Perforation Data: | | Interval Top: | 6359 ft. | # Of Holes: | 712 | | Interval Bottom: | 7588 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2 |
| Total Gas Produced (MCF) | 16283 |
| GOR | 8141500 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.647 |
| Average MCFE per Day | 44.342 |
| Federal Financial Assurance | i | |
|
|
