Wellbore #00 Wellbore Classification: GW Status: SI - 9/1/2025 Measured TD: 8924 ft. Vertical TD: 8891 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 9/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062840 | Expiration Date: | 8/16/2007 | | Proposed Top PZ Location: | Sec:8 Twp: 6S 92W | Footage: 1886 FNL 915 FWL | | Bottom Hole Location: | Sec:8 Twp: 6S 92W | Footage: 1886 FNL 915 FWL | | Proposed Depth/Form: | 8773 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: COZZ , Formation: COZZETTE , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: CRCRN , Formation: CORCORAN , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit: |
| | |

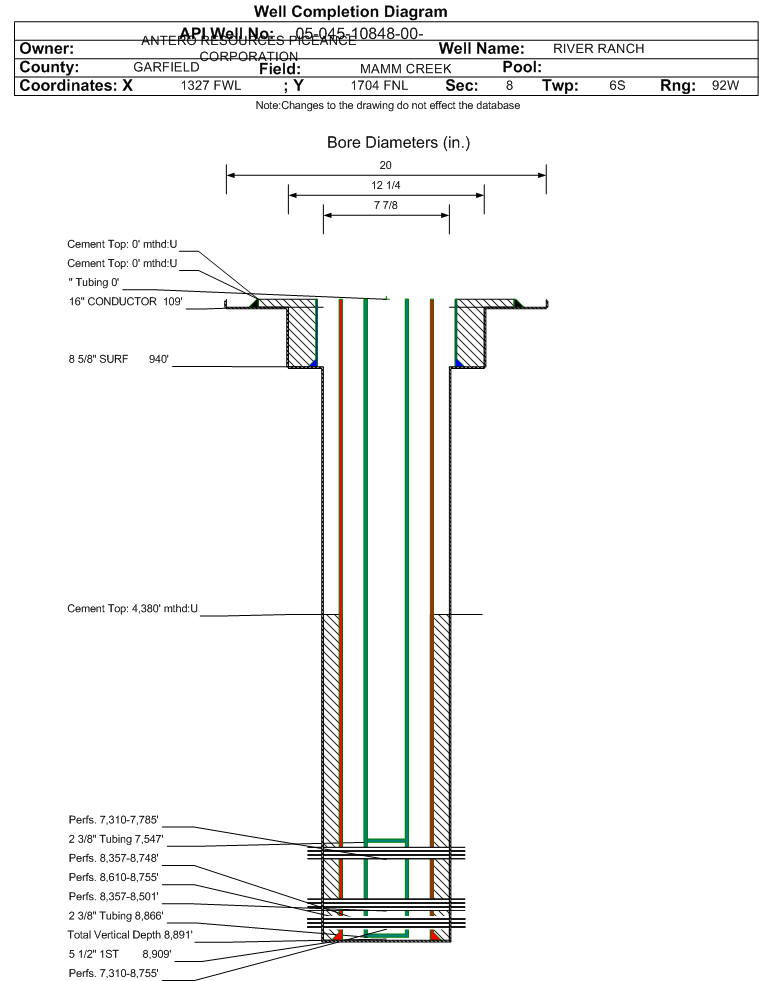

| Wellbore Completed | | Completion Date: | 1/19/2007 | | Spud Date: | 10/23/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8924 ft. | Measured PB depth: | 8866 ft. | | True Vertical TD: | 8891 ft. | True Vertical PB depth: | 8833 ft. | | Top PZ Location: | Sec:8 Twp: 6S 92W | Footage: 1886 FNL 915 FWL | | Bottom Hole Location: | Sec:8 Twp: 6S 92W | Footage: 1886 FNL 915 FWL | | Log Types: | CHI TRIPLE COMBO LOG (INCL. NEUTRON DENSITY/INDUCTION); CBL/GR/TEMP/CCL | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: 0 ft., Depth: 109 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 351, Top: 0 ft., Bottom: 109 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 940 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 950 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8909 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 780, Top: 4380 ft., Bottom: 8924 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4206 ft. | | N | N | | CAMEO | 6822 ft. | | N | N | | ROLLINS | 7798 ft. | | N | N | | COZZETTE | 8357 ft. | | N | N | | CORCORAN | 8608 ft. | | N | N |
Formation CRCRN Formation Classification: GW Status: SI - 6/1/2025 Interval Top: 8610 ft. Interval Bottom: 8755 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 3/17/2007 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/5/2007 | | Treatment Summary: | CORC-COZZ FRAC WITH 14,999 BBLS OF 2% KCL, 330,000 LBS 30/50 SAND AND 210,520 LBS 20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8610 ft. | # Of Holes: | 364 | | Interval Bottom: | 8755 ft. | Hole Size: | 0.42 in. |
|
Formation COZZ Formation Classification: GW Status: SI - 6/1/2025 Interval Top: 8357 ft. Interval Bottom: 8501 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 3/17/2007 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/5/2007 | | Treatment Summary: | CORC-COZZ FRAC WITH 14,999 BBLS OF 2% KCL, 330,000 LBS 30/50 SAND AND 210,520 LBS 20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 8357 ft. | # Of Holes: | 364 | | Interval Bottom: | 8501 ft. | Hole Size: | 0.42 in. |
|
Formation CZ-CR Formation Classification: GW Status: CM - 3/29/2007 Interval Top: 8357 ft. Interval Bottom: 8748 ft.| Completed Information for Formation COZZETTE-CORCORAN | | 1st Production Date: | 3/17/2007 | Choke Size: | 0.281 in. | | Formation Name: | COZZETTE-CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/5/2007 | | Treatment Summary: | CORCORAN-COZZETTE- FRAC W/ 14,999 BBLS OF 2% KCL, 330,000# OF 30/50 SAND & 210,520# 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8866 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/29/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 541 | | CALC_BBLS_H2O | 541 | | CALC_MCF_GAS | 812 | | CASING_PRESS | 1100 | | MCF_GAS | 812 | | TUBING_PRESS | 2152 |
| | Perforation Data: | | Interval Top: | 8357 ft. | # Of Holes: | 364 | | Interval Bottom: | 8748 ft. | Hole Size: | 0.42 in. |
|
Formation WFCM Formation Classification: GW Status: SI - 9/1/2025 Interval Top: 7310 ft. Interval Bottom: 7785 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/22/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/6/2007 | | Treatment Summary: | (ORIGINAL FRAC) - Frac'd with 10,505 bbls of 2%KCL, 355,950 lbs 30/50 sand and 203,400 lbs 20/40 sand |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7547 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/27/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1010 | | CALC_MCF_GAS | 15 | | CASING_PRESS | 208 | | MCF_GAS | 15 | | TUBING_PRESS | 381 |
| | Perforation Data: | | Interval Top: | 7310 ft. | # Of Holes: | 324 | | Interval Bottom: | 7785 ft. | Hole Size: | 0.42 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 3/29/2007 Interval Top: 7310 ft. Interval Bottom: 8755 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 3/22/2007 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/5/2007 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8866 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/29/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 541 | | BBLS_OIL | 0 | | BTU_GAS | 1024 | | CALC_BBLS_H2O | 541 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 812 | | CASING_PRESS | 1100 | | MCF_GAS | 812 | | TUBING_PRESS | 2152 |
| | Perforation Data: | | Interval Top: | 7310 ft. | # Of Holes: | 688 | | Interval Bottom: | 8755 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
11/2024 - 10/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 161 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.076 |
| Average MCFE per Day | 0.439 |
| Federal Financial Assurance | i | |
|
|
