COGIS - WELL SCOUT CARD

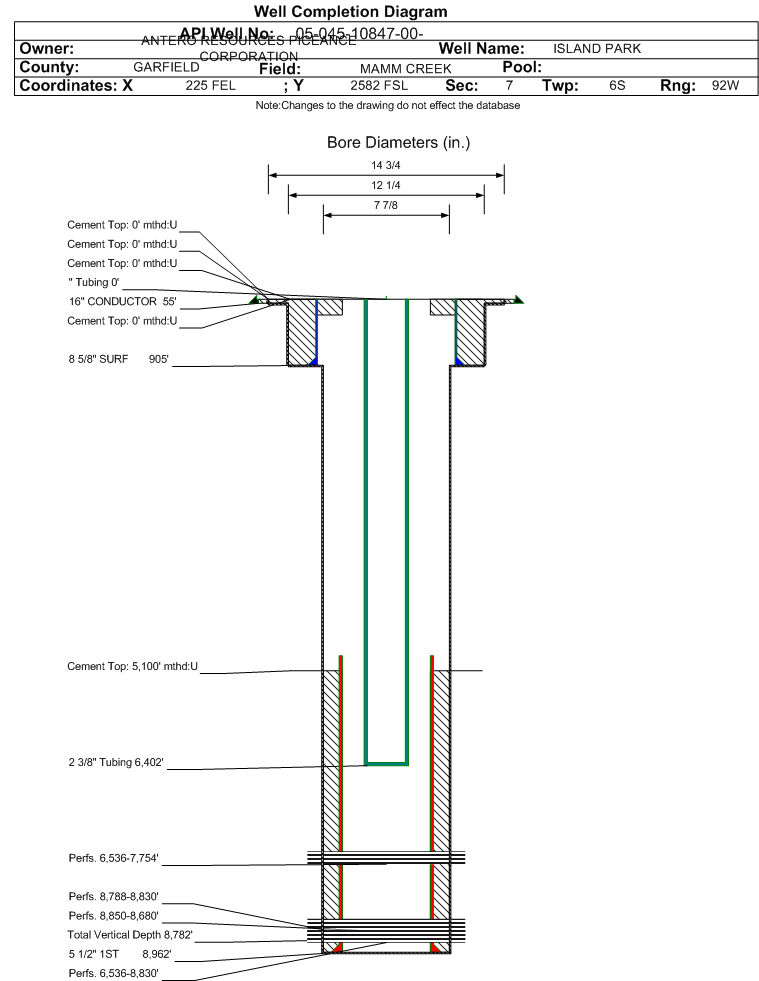

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10847		Well Classification: GW Status: PR - 4/1/2025
Well Name/No:ISLAND PARK #B2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/1/2025
FacilityID:278177LocationID:336025
County:GARFIELD #045Location:NESE 7 6S92W 6
Field:MAMM CREEK - #52500Elevation:5376 ft.
Basin:PICEANCE BASIN
Planned Location:2582FSL  225 FELLat/Long: 39.540860 / -107.700985Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.540908 / -107.700957Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/1/2025             Measured TD: 8977 ft.    Vertical TD: 8782 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20050588 Expiration Date:6/12/2006
Proposed Top PZ Location:Sec:7 Twp: 6S 92W Footage: 1894 FNL  652 FEL
Bottom Hole Location:Sec:7 Twp: 6S 92W Footage: 1894 FNL  652 FEL
Proposed Depth/Form:8619 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/25/2005
Spud Date:9/14/2005Spud Date Is:ACTUAL
Measured TD:8977 ft.Measured PB depth:8914 ft.
True Vertical TD:8782 ft.True Vertical PB depth:8719 ft.
Top PZ Location:Sec:7 Twp: 6S 92WFootage: 1894 FNL  652 FEL
Bottom Hole Location:Sec:7 Twp: 6S 92WFootage: 1894 FNL  652 FEL
Log Types:CHI PROCESSED TRIPLE COMBO; GR/CCL/TEMP; CBL; MUD
Casing:String Type: CONDUCTOR, Hole Size: 14.75 in., Size: 16 in., Top: 0 ft., Depth: 55 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 55 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 905 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 905 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 4892 ft., Depth: 8962 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1090, Top: 5100 ft., Bottom: 8962 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 214 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 0 ft., Bottom: 214 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4366 ft.NN
CAMEO7009 ft.NN
ROLLINS7977 ft.NN
COZZETTE8530 ft.NN
CORCORAN8788 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  SI - 10/1/2025                 Interval Top: 8788 ft.    Interval Bottom: 8830 ft.

 Completed Information for Formation CORCORAN
1st Production Date:12/9/2005Choke Size:
Formation Name:CORCORANCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/10/2005
Treatment Summary:11/10/05 STAGE 1: CORCORAN- FRAC W/2763 BBLS OF SLICKWATER, 76,600 LBS OF 40/70 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8788 ft.# Of Holes:124
Interval Bottom:8830 ft.Hole Size:0.46 in.

Formation COZZ                     Formation Classification:  GW                     Status:  SI - 10/1/2025                 Interval Top: 8680 ft.    Interval Bottom: 8850 ft.

 Completed Information for Formation COZZETTE
1st Production Date:12/9/2008Choke Size:
Formation Name:COZZETTECommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/11/2005
Treatment Summary:11/11/05 STAGE 2: COZZETTE-FRAC W/3033 BBLS OF SLICKWATER, 116,800 LBS OF 40/70 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:8680 ft.# Of Holes:142
Interval Bottom:8850 ft.Hole Size:0.46 in.

Formation CZCRW                   Formation Classification:  GW                   Status:  CM - 12/10/2005                Interval Top: 6536 ft.    Interval Bottom: 8830 ft.

 Completed Information for Formation COZZETTE-CORORAN-WMFK
1st Production Date:12/9/2005Choke Size:0.500 in.
Formation Name:COZZETTE-CORORAN-WMFKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/10/2005
Treatment Summary:11/10/05-12/2/05 FRAC CORCORAN, COZZETTE & WILLIAMS FORK W/A TOTAL OF 7 STAGES USING A TOTAL OF 25,182 BBLS OF SLICKWATER, 790,977 LBS OF 40/70 SAND; 219,567 OF 30/50 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:6402 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/10/2005Test Method:FLOWING
Hours Tested:23Gas Type:WET
Gas Disposal:FLARED
Test TypeMeasure
BBLS_H2O 413
BBLS_OIL 0
CALC_BBLS_H2O 431
CALC_BBLS_OIL 0
CALC_MCF_GAS 748
CASING_PRESS 1000
MCF_GAS 717
TUBING_PRESS 450
Perforation Data:
Interval Top:6536 ft.# Of Holes:1674
Interval Bottom:8830 ft.Hole Size:0.46 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/1/2025                  Interval Top: 6536 ft.    Interval Bottom: 7754 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/9/2005Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/12/2005
Treatment Summary:STAGE 3:LOWER CAMEO, STAGE 4:UPPER CAMEO, STAGE 5,6,7:WFK:FRAC W/19,386 BBLS OF SLICKWATER, 597,577 LBS OF 40/70 SAND, 219,567 LBS 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:6536 ft.# Of Holes:1408
Interval Bottom:7754 ft.Hole Size:0.46 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)6855
GOR
GOR DeterminationMCFE
Average BOE per Day3.216
Average MCFE per Day18.638

 Federal Financial Assurance  i

 Tribal Well  i No
