Wellbore #00 Wellbore Classification: GW Status: PR - 12/20/2009 Measured TD: 8875 ft. Vertical TD: 8824 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/20/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062841 | Expiration Date: | 8/16/2007 | | Proposed Top PZ Location: | Sec:8 Twp: 6S 92W | Footage: 2545 FSL 555 FWL | | Bottom Hole Location: | Sec:8 Twp: 6S 92W | Footage: 2545 FSL 555 FWL | | Proposed Depth/Form: | 8824 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: COZZ , Formation: COZZETTE , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit: |
| | |

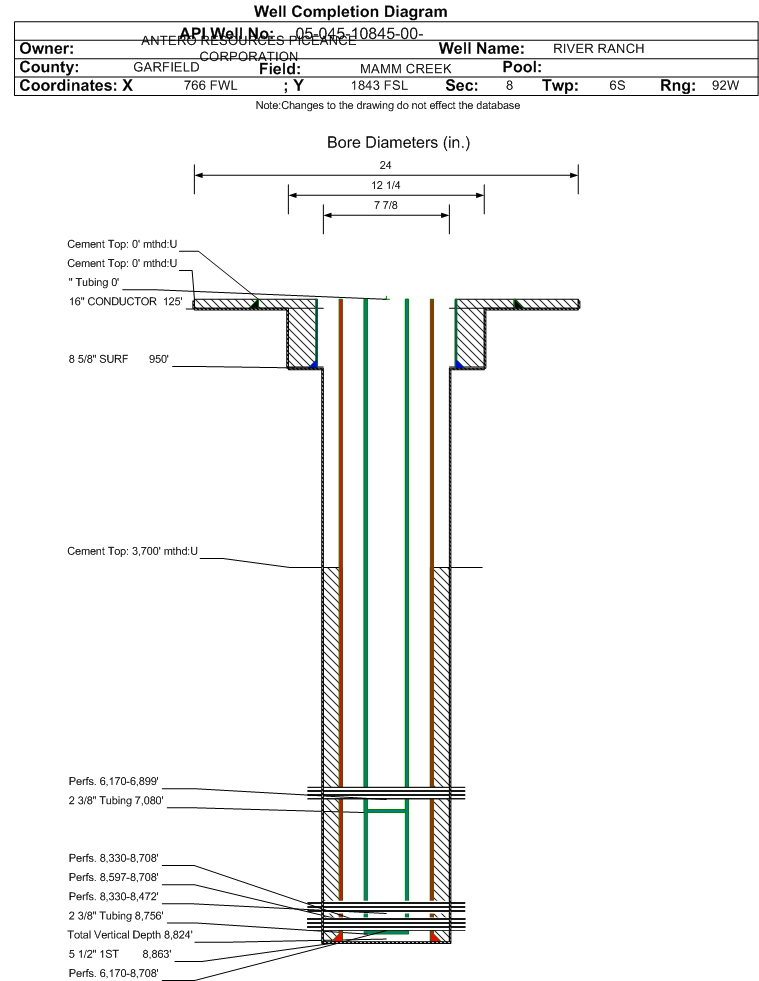

| Wellbore Completed | | Completion Date: | 10/14/2006 | | Spud Date: | 9/3/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8875 ft. | Measured PB depth: | 8823 ft. | | True Vertical TD: | 8824 ft. | True Vertical PB depth: | 8772 ft. | | Top PZ Location: | Sec:8 Twp: 6S 92W | Footage: 2545 FSL 555 FWL | | Bottom Hole Location: | Sec:8 Twp: 6S 92W | Footage: 2545 FSL 555 FWL | | Log Types: | CHI TRIPLE COMBO LOG (INCUDES-NEU, DEN, IND); CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 125 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 125 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 950 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 934 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8863 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1000, Top: 3700 ft., Bottom: 8875 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 4152 ft. | | N | N | | CAMEO | 6787 ft. | | N | N | | ROLLINS | 7768 ft. | | N | N | | COZZETTE | 8327 ft. | | N | N | | CORCORAN | 8594 ft. | | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 2/1/2011 Interval Top: 8597 ft. Interval Bottom: 8708 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 1/25/2007 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/30/2006 | | Treatment Summary: | CORCORAN-COZZETTE- FRAC WITH 8061 BBLS OF 2% KCL, 161200 LBS OF 30/50 SAND, 125000 LBS 20/40. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8597 ft. | # Of Holes: | 182 | | Interval Bottom: | 8708 ft. | Hole Size: | 0.42 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 12/20/2009 Interval Top: 8330 ft. Interval Bottom: 8472 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 1/25/2007 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/30/2006 | | Treatment Summary: | (T&A) ON 12/20/2009 CIBP SET AT 8410 WHICH T&A'D THIS FORMATION FROM 8410-8472. THE UPPER POTION IS STILL PRODUCING. (ORIGINAL) ON 12/30/2006 FRACD WITH 8061 BBLS OF 2% KCL, 161200 LNS OF 30/50 SAND 125000 LBS 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 8330 ft. | # Of Holes: | 182 | | Interval Bottom: | 8472 ft. | Hole Size: | 0.42 in. |
|
Formation CZ-CR Formation Classification: GW Status: CM - 2/8/2007 Interval Top: 8330 ft. Interval Bottom: 8708 ft.| Completed Information for Formation COZZETTE-CORCORAN | | 1st Production Date: | 1/25/2007 | Choke Size: | 0.375 in. | | Formation Name: | COZZETTE-CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/30/2006 | | Treatment Summary: | CZ-CR-FRAC W/8,061 BBLS OF 2% KCL, 161,200 LBS OF 30/50 SAND 125,000 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8756 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/8/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 735 | | CALC_BBLS_H2O | 735 | | CALC_MCF_GAS | 2269 | | CASING_PRESS | 1855 | | MCF_GAS | 2269 | | TUBING_PRESS | 925 |
| | Perforation Data: | | Interval Top: | 8330 ft. | # Of Holes: | 182 | | Interval Bottom: | 8708 ft. | Hole Size: | 0.42 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 12/20/2009 Interval Top: 6170 ft. Interval Bottom: 6899 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/25/2009 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/30/2009 | | Treatment Summary: | (RECOMPLETE) ON 12/23/2009-12/31/2009 FRACD WITH 55615 BBLS OF 2% KCL. 614500 LBS 30/50 SAND. (ORIGINAL) ON 01/06/2007 FRACD 6902-7753 WITH 8061 BBLS OF 2% KCL, 161200 LBS 30/50 SAND AND 125000 LBS 20/40 SAND. TOTAL PERFS = 253 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 6170 ft. | # Of Holes: | 126 | | Interval Bottom: | 6899 ft. | Hole Size: | 0.42 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 1/9/2010 Interval Top: 6170 ft. Interval Bottom: 8708 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 1/25/2007 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/31/2009 | | Treatment Summary: | SEE INDIVIDUAL FORMATIONS FOR BREAKDOWN OF INFORMATION. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7080 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/9/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 45 | | BBLS_OIL | 0 | | BTU_GAS | 1112 | | CALC_BBLS_H2O | 45 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 538 | | CASING_PRESS | 20 | | MCF_GAS | 538 | | TUBING_PRESS | 3107 |
| | Perforation Data: | | Interval Top: | 6170 ft. | # Of Holes: | 435 | | Interval Bottom: | 8708 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 109 |
| Total Gas Produced (MCF) | 18779 |
| GOR | 172284 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.166 |
| Average MCFE per Day | 53.172 |
| Federal Financial Assurance | i | |
|
|
