Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2005 Measured TD: 8253 ft. Vertical TD: 8113 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051579 | Expiration Date: | 6/2/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1060 FSL 600 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1060 FSL 600 FWL | | Proposed Depth/Form: | 8214 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: , Drill Unit: UNSPAC |
| | |

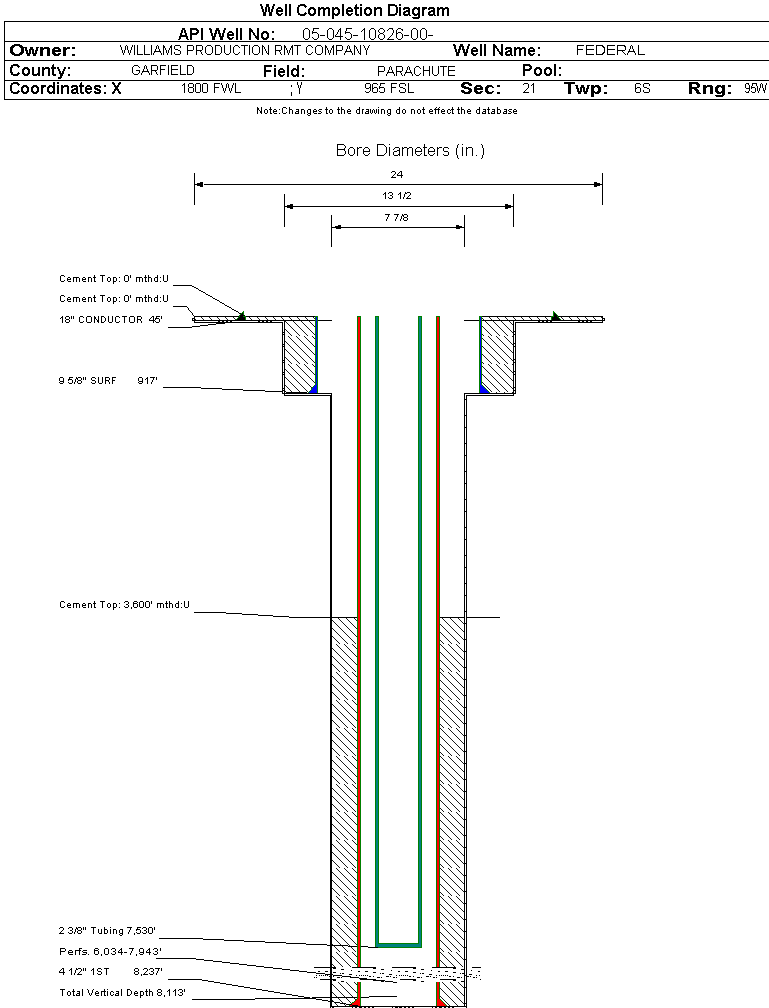

| Wellbore Completed | | Completion Date: | 9/24/2005 | | Spud Date: | 9/10/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8253 ft. | Measured PB depth: | 8138 ft. | | True Vertical TD: | 8113 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1060 FSL 600 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1060 FSL 600 FWL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD LOG | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 917 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 285, Top: 0 ft., Bottom: 917 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8237 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 890, Top: 3600 ft., Bottom: 8237 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FORT UNION | 2785 ft. | | N | N | | MESAVERDE | 4666 ft. | | N | N | | CAMEO | 7365 ft. | | N | N | | ROLLINS | 8118 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 12/1/2005 Interval Top: 6034 ft. Interval Bottom: 7943 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/24/2005 | | Treatment Summary: | 1500 GALS 10% ACETIC ACID; 3000 GALS 7 1/2% HCL; 754585# 30/50 SAND; 18073 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7530 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/1/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 902 | | CASING_PRESS | 1207 | | MCF_GAS | 902 | | TUBING_PRESS | 1001 |
| | Perforation Data: | | Interval Top: | 6034 ft. | # Of Holes: | 134 | | Interval Bottom: | 7943 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 16 |
| Total Gas Produced (MCF) | 11698 |
| GOR | 731125 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.571 |
| Average MCFE per Day | 32.316 |
| Federal Financial Assurance | i | Y |
|
|
