COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10822		Well Classification: GW Status: PR - 3/13/2006
Well Name/No:PA #433-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/13/2006
FacilityID:278024LocationID:335103
County:GARFIELD #045Location:NWSE 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5174 ft.
Basin:PICEANCE BASIN
Planned Location:1962FSL  2165 FELLat/Long: 39.479209 / -108.020104Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479239 / -108.020070Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/13/2006             Measured TD: 6784 ft.    Vertical TD: 6769 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/13/2006
Wellbore PermitDIRECTIONAL
Permit #:20051547 Expiration Date:6/1/2006
Proposed Top PZ Location:Sec: Twp: Footage: 1982 FSL  1328 FEL
Bottom Hole Location:Sec: Twp: Footage: 1982 FSL  1328 FEL
Proposed Depth/Form:6830 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:12/31/2005
Spud Date:12/29/2005Spud Date Is:ACTUAL
Measured TD:6784 ft.Measured PB depth:6653 ft.
True Vertical TD:6769 ft.True Vertical PB depth:
Top PZ Location:Sec:32 Twp: 6S 95WFootage: 1980 FSL  1314 FEL
Bottom Hole Location:Sec:32 Twp: 6S 95WFootage: 1980 FSL  1314 FEL
Log Types:CBL; HIGH RES.INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON

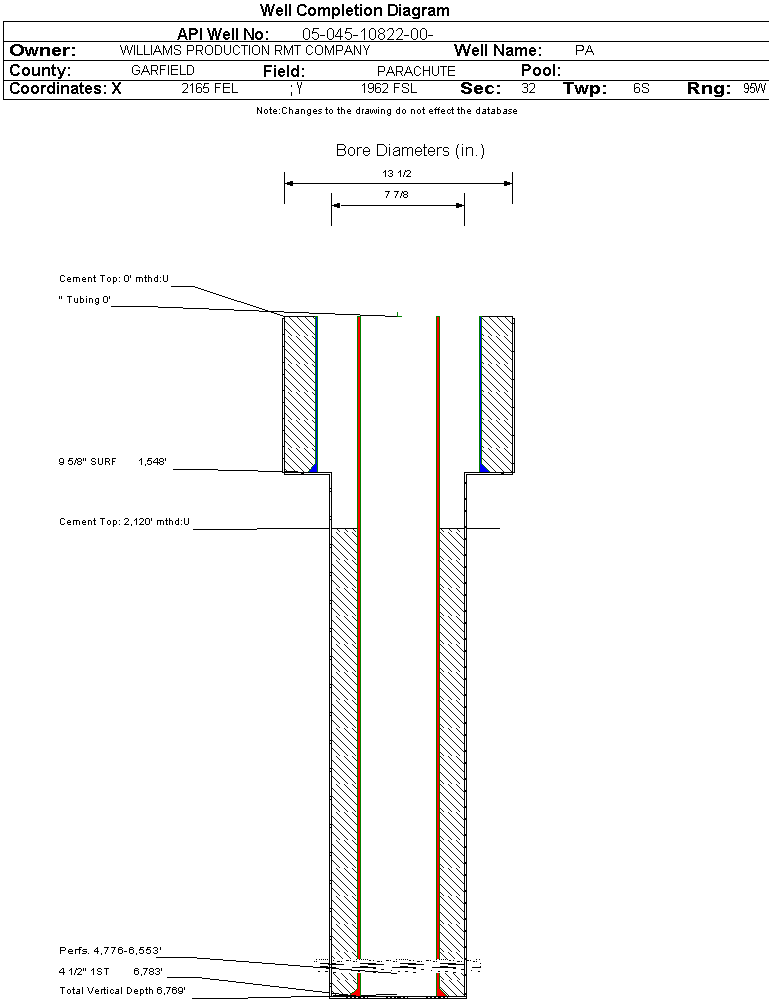

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1548 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 510, Top: 0 ft., Bottom: 1548 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6783 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 925, Top: 2120 ft., Bottom: 6783 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1338 ft.NN
FORT UNION1599 ft.NN
MESAVERDE3418 ft.NN
CAMEO5961 ft.NN
ROLLINS6609 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/13/2006                 Interval Top: 4776 ft.    Interval Bottom: 6553 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:2/1/2006Choke Size:0.750 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/28/2006
Treatment Summary:2713 GALS 7.5% HCL; 691700# 30/50 SAND; 15433 BBLS SLICKWATER. NO TUBING STRING IN WELL; WELL PRODUCING UP CASING.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/13/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 785
CASING_PRESS 277
Perforation Data:
Interval Top:4776 ft.# Of Holes:107
Interval Bottom:6553 ft.Hole Size:0.36 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)11122
GOR926833
GOR DeterminationMCFE
Average BOE per Day5.289
Average MCFE per Day30.676

 Federal Financial Assurance  i

 Tribal Well  i No
