COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10812		Well Classification: GW Status: PR - 6/5/2006
Well Name/No:GUCCINI #31B-20-692
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/5/2006
FacilityID:277915LocationID:335083
County:GARFIELD #045Location:NWNE 20 6S92W 6
Field:MAMM CREEK - #52500Elevation:5558 ft.
Basin:PICEANCE BASIN
Planned Location:798FNL  1759 FELLat/Long: 39.517200 / -107.687364Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.517270 / -107.687347Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/5/2006             Measured TD: 7595 ft.    Vertical TD: 7580 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/5/2006
Wellbore PermitDIRECTIONAL
Permit #:20051530 Expiration Date:5/26/2006
Proposed Top PZ Location:Sec:20 Twp: 6S 92W Footage: 854 FNL  1980 FEL
Bottom Hole Location:Sec:20 Twp: 6S 92W Footage: 854 FNL  1980 FEL
Proposed Depth/Form:7540 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:3/17/2006
Spud Date:1/5/2006Spud Date Is:ACTUAL
Measured TD:7595 ft.Measured PB depth:7548 ft.
True Vertical TD:7580 ft.True Vertical PB depth:7533 ft.
Top PZ Location:Sec:20 Twp: 6S 92WFootage: 813 FNL  1990 FEL
Bottom Hole Location:Sec:20 Twp: 6S 92WFootage: 813 FNL  1990 FEL
Log Types:HALLIBURTON SD/DSN/HRI/MICROLOG, PRECISION CBL/TEMP

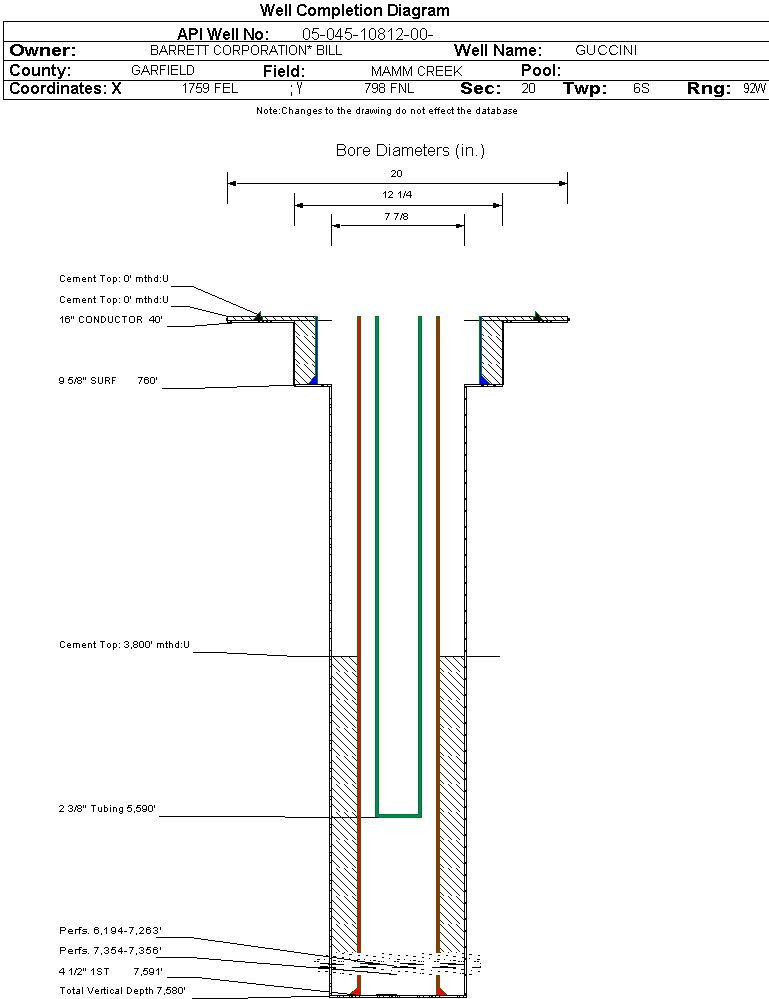

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 760 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 760 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7591 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 3800 ft., Bottom: 7337 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3647 ft.NN
ROLLINS7295 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 6/6/2006                  Interval Top: 7354 ft.    Interval Bottom: 7356 ft.

 Completed Information for Formation ROLLINS
1st Production Date:5/26/2006Choke Size:0.375 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/11/2006
Treatment Summary:412 BBLS FR WATER; 9,415 # 20/40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5590 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/6/2006Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 91
CASING_PRESS 985
MCF_GAS 91
TUBING_PRESS 1282
Perforation Data:
Interval Top:7354 ft.# Of Holes:4
Interval Bottom:7356 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 6/5/2006                  Interval Top: 6194 ft.    Interval Bottom: 7263 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:5/26/2006Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/11/2006
Treatment Summary:55,973 BBLS FR WATER; 1,269,285 # 20/40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5590 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/5/2006Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1735
CASING_PRESS 985
MCF_GAS 1735
TUBING_PRESS 1282
Perforation Data:
Interval Top:6194 ft.# Of Holes:244
Interval Bottom:7263 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)74
Total Gas Produced (MCF)9250
GOR125000
GOR DeterminationMCFE
Average BOE per Day4.566
Average MCFE per Day26.492

 Federal Financial Assurance  i

 Tribal Well  i No
